ASRock A520M-HDV Micro ATX AM4 Motherboard

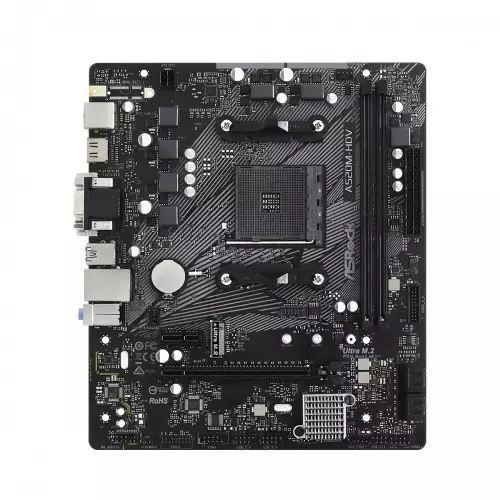

ASRock A520M-HDV Micro ATX AM4 Motherboard ASRock A520M-HDV Micro ATX AM4 Motherboard - 1 ASRock A520M-HDV Micro ATX AM4 Motherboard - 2

ASRock A520M-HDV Micro ATX AM4 Motherboard

0 Reviews
Stock : Out of Stock
PID : P1172506012
SKU : A520MHDV
Brand : ASRock
Model : ASRock A520M-HDV
Warranty : 3 years
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN

    • Product Pricing

    Discount Price

    ৳11,600 ৳12,500
    + Available Payment Method

    EMI Start From*

    ৳408

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
    6 Power Phase design

    Mainboard

    Chipset AMD A520
    BIOS 128Mb AMI UEFI Legal BIOS with GUI support
    Supports "Plug and Play"
    ACPI 5.1 compliance wake up events
    Supports jumperfree
    SMBIOS 2.3 support
    CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

    Memory

    Memory Type Dual Channel Memory Architecture
    Slots 2 x DIMM slots
    Supported Memory AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    Maximum Mamory 64GB

    Storage

    Supported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

    Graphics

    Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
    DirectX 12, Pixel Shader 5.0
    Shared memory default 2GB. Max Shared memory supports up to 16GB.
    Three graphics output options: D-Sub, DVI-D and HDMI
    Supports Triple Monitor
    Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    Supports HDR (High Dynamic Range) with HDMI 2.1
    Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    Supports Microsoft PlayReady
    Max Shared Memory 16GB

    Networking & Connectivity

    LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    Realtek RTL8111H
    Supports Wake-On-LAN
    Supports Lightning/ESD Protection
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE

    Audio & Microphone

    Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    Supports Surge Protection

    Ports

    Slots PCI 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
    1 x PCI Express 3.0 x1 Slot
    M.2 Socket 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Internal I/O Ports 1 x SPI TPM Header
    1 x COM Port Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    1 x 24 pin ATX Power Connector
    1 x 4 pin 12V Power Connector
    1 x Front Panel Audio Connector
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    USB 2 x USB 2.0 Ports (Supports ESD Protection)
    4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    HDMI 1 x HDMI

    Physical Specification

    Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    Solid Capacitor design

    Warranty Information

    Warranty 03 years

    PRODUCT DESCRIPTION

    ASRock A520M-HDV MOTHERBOARD

    A520M-HDV Features:
    • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
    • 6 Phase Power Design
    • Supports DDR4 4733+ (OC)
    • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
    • Graphics Output Options: D-Sub, DVI-D, HDMI
    • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
    • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
    • 6 x USB 2.0(2 x Rear, 4 x Front)
    • Realtek Gigabit LAN
    **03 Years Warranty.

    ASRock A520M-HDV MOTHERBOARD Overview:

    The ASRock A520M-HDV Micro ATX AM4 Motherboard has PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
