ASRock B850 Steel Legend WiFi AMD ATX Motherboard

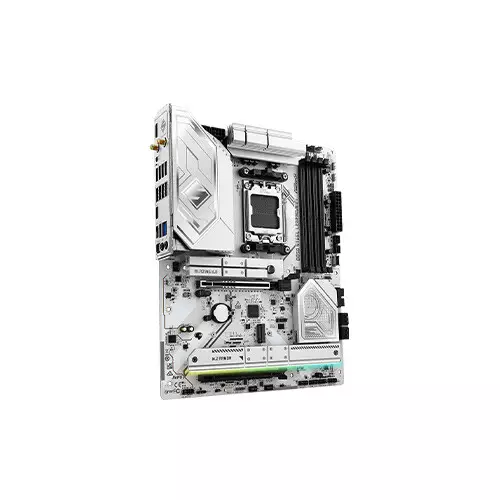

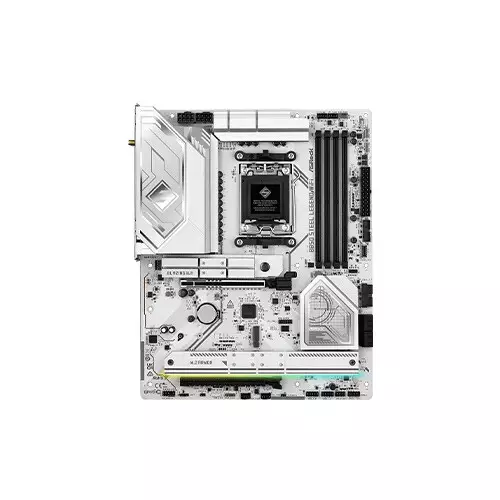

ASRock B850 Steel Legend WiFi AMD ATX Motherboard ASRock B850 Steel Legend WiFi AMD ATX Motherboard - 1 ASRock B850 Steel Legend WiFi AMD ATX Motherboard - 2 ASRock B850 Steel Legend WiFi AMD ATX Motherboard - 3

ASRock B850 Steel Legend WiFi AMD ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P1042510001
Brand : ASRock
Model : B850 Steel Legend WiFi
Warranty : 3 Years

Chipset - AMD B850

Form Factor - ATX

Certifications - FCC, CE

OS - Microsoft Windows 10 64-bit

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset

AMD B850

Mainboard

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Memory

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 ECC/non-ECC,
un-buffered memory up to 8000+(OC)

- Max. capacity of system memory: 256GB

- Supports Extreme Memory Profile
(XMP) and EXTended Profiles for
Overclocking (EXPO) memory modules

Storage

Raid

Supports RAID 0, RAID 1, and RAID 10
for M.2 NVMe storage devices
Supported Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M),
supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_2, Key M),
supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_4, Key M),
supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

ASMedia ASM1061:

- 4 x SATA3 6.0 Gb/s Connectors

Graphics

Graphics

Integrated AMD RDNA graphics
(Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible,
supports HDR, HDCP 2.3, and max.
resolution up to 4K 120Hz

Networking & Connectivity

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game,
Browser, and Streaming Modes

- User Customized Priority Control
WiFi

- 802.11be 2x2 Wi-Fi 7 Module

- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be

- Supports 2.4GHz/5GHz/6GHz* frequency band

- Supports 160MHz channel
bandwidth with 6GHz* frequency band

- 1 antenna to support 2
(Transmit) x 2 (Receive)
diversity technology

- Supports Bluetooth 5.4

- Supports MU-MIMO

Audio & Microphone

Audio

- 7.1 CH HD Audio with Content
Protection (Realtek ALC4082 Audio Codec)

- Individual PCB Layers for R/L Audio Channel

- Direct Drive Technology on
Front headphone port
(Supports up to 600 Ohm headsets)

- Nahimic Audio

Ports

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1),
supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE2),
supports x4 mode*

- 1 x Vertical M.2 Socket (Key E),
supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internal I/O Ports

- 1 x SPI TPM Header

- 1 x Thermistor Cable Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 2 x CPU Fan Connectors (4-pin)
(Smart Fan Speed Control)***

- 3 x Chassis Fan Connectors
(4-pin) (Smart Fan Speed Control)***

- 1 x AIO Pump Fan Connector
(4-pin) (Smart Fan Speed Control)***

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors
(Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 2 x USB 3.2 Gen1 Headers
(Support 4 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2
Gen2x2 Header (20 Gb/s)
External I/O Ports

- 2 x Antenna Ports

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)

- 3 x USB 3.2 Gen1 Type-A Ports*

- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**

- 4 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- 1 x BIOS Flashback Button

- 1 x Line Out Jack (Gold Audio Jack)

- 1 x Microphone Input Jack (Gold Audio Jack)
USB

CPU:

- 2 x USB 3.2 Gen2 Type-C (Rear)

- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))

- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))

Chipset:

- 1 x USB 3.2 Gen2x2 Type-C (Front)

- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))

- 6 x USB 3.2 Gen1 Type-A
(2 Rear (USB32_2 and USB32_5), 4 Front)

- 8 x USB 2.0 (4 Rear, 4 Front)

Software

Operating System

- Microsoft Windows 10 64-bit / 11 64-bit
Software Features

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Others

Accessories

- 2 x SATA Data Cables

- 2 x ASRock WiFi 2.4/5/6 GHz Antennas

- 1 x Thermistor Cable
Other Features

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)

Physical Specification

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in,
30.5 cm x 24.4 cm

- 8 Layer PCB

Technical Info

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

ASRock B850 Steel Legend WiFi AMD ATX Motherboard in Bangladesh

ASRock B850 Steel Legend WiFi AMD ATX Motherboard is a premium, feature-rich motherboard designed for gamers, content creators, and PC enthusiasts seeking top-tier performance and reliability, now available in Bangladesh at Tech Land BD at the best price. Built on the AMD B850 chipset, it supports AMD Socket AM5 Ryzen™ 7000, 8000, and 9000 Series processors, offering robust compatibility and powerful computing capabilities. Equipped with dual-channel DDR5 memory technology, it features four DIMM slots supporting up to 256GB of DDR5 ECC and non-ECC memory at speeds of 8000+ MHz (OC), with full support for Extreme Memory Profile (XMP) and EXPO overclocking modules for enhanced performance.

The motherboard excels in durability with a 14+2+1 power phase design, 80A Dr.MOS for VCore+SOC+MISC, enlarged heatsink armor, 20K long-lasting capacitors, and a flexible integrated I/O shield, ensuring stable operation under heavy workloads. Connectivity is ultrafast with 2.5G LAN, ASRock Lightning Gaming Ports, and 802.11be Wi-Fi 7, supporting the latest wireless standards and high-speed internet.

For storage, it provides multiple M.2 slots, including PCIe Gen5 and Gen4 options, as well as SATA3 connectors, allowing high-speed NVMe SSD and RAID configurations. Its integrated graphics support HDMI 2.1 up to 4K 120Hz, while 7.1-channel HD audio with Realtek ALC4082 and Nahimic Audio ensures immersive sound. With extensive USB options, including USB 3.2 Gen 2 Type-C, RGB and addressable LED headers, multiple fan connectors, and ASRock software utilities like A-Tuning, Polychrome SYNC, and Instant Flash, it combines convenience with cutting-edge technology. The ASRock B850 Steel Legend WiFi ATX Motherboard is the ideal choice for high-performance builds, available at the best price in Bangladesh from TechLand BD.

What expansion slots are available?

Includes 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x16 slot.

How many M.2 and SATA ports are provided?

Offers 1 PCIe Gen5 x4 M.2 slot, 3 PCIe Gen4 x4 M.2 slots, and 4 SATA3 ports.

What type of network connectivity does it support?

Features 2.5G Ethernet LAN and Wi-Fi 6E (802.11ax) capabilities.
