Product Information

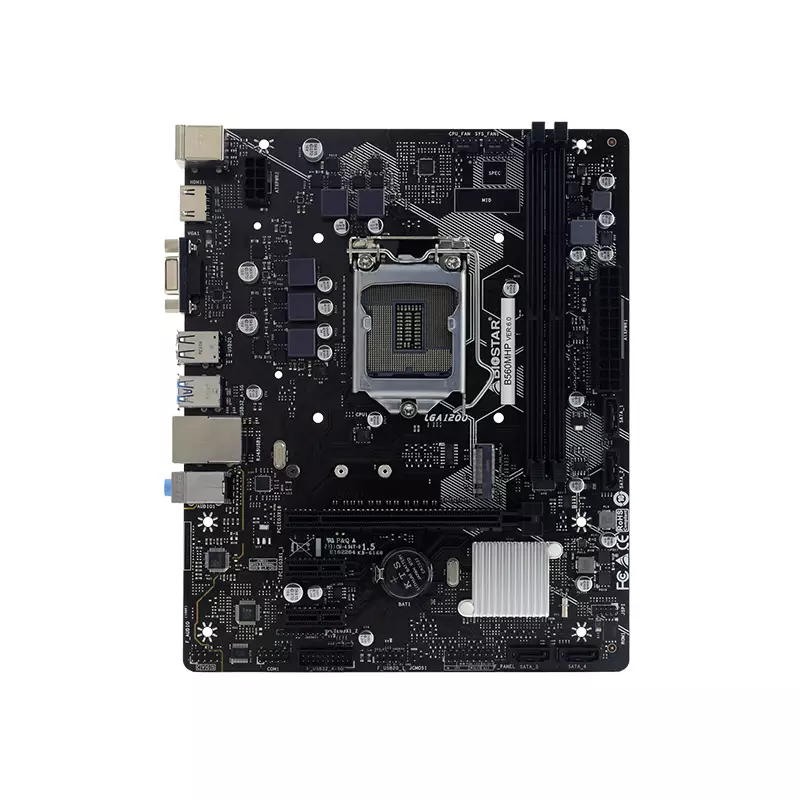

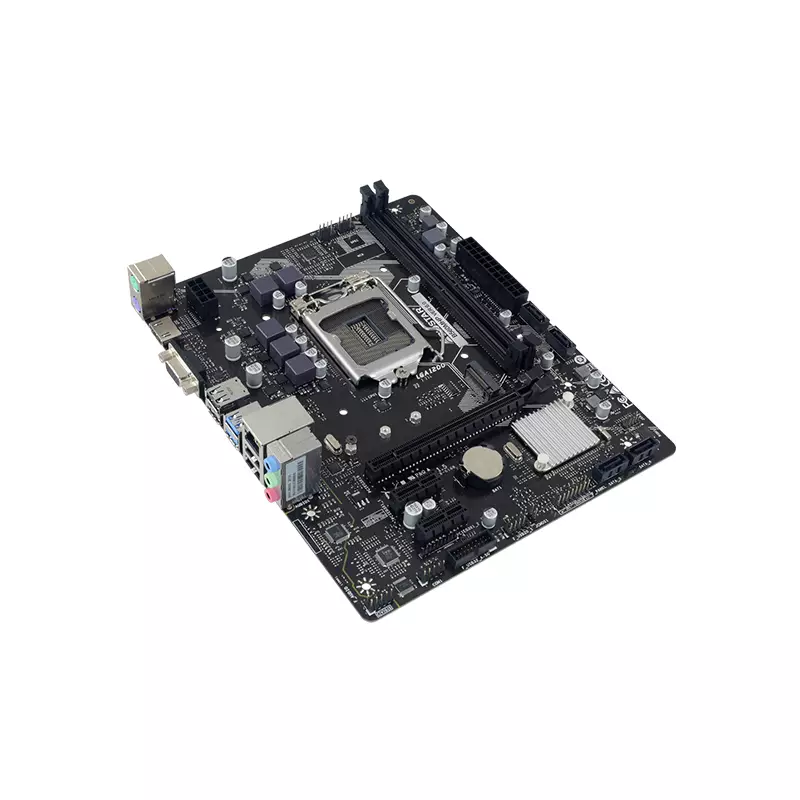

BIOSTAR B560MHP 10TH AND 11TH GEN MICRO ATX INTEL MOTHERBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Storage
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
Graphics
1 x VGA Port
Networking & Connectivity
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio & Microphone
7.1 Channels, High Definition Audio
Ports
1 x PCle 3.0/4.0 x16 Slot
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)
Software
BullGuard
Special Features
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
Others
Supports DX12
Supports HDCP
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
BIOSTAR B560MHP 10TH AND 11TH GEN MICRO ATX INTEL MOTHERBOARD
The BIOSTAR B560MHP is a micro ATX Intel motherboard designed to support 10th and 11th-generation Intel Core, Pentium, and Celeron processors. With its Intel B560 chipset, this motherboard offers a compact form factor measuring 18.5cm x 22.6cm. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of 64 GB. The motherboard features DX12 graphics support and HDCP compatibility. In terms of storage, it provides four SATA III connectors and one M.2 socket that supports various SSD modules. The audio capabilities include Realtek ALC897 with 7.1 channels and high-definition audio, while the LAN connection is facilitated by the Intel I219V chip. The motherboard also offers multiple USB ports, PCIe slots, a VGA port, and various I/O connectors.
It comes bundled with BullGuard software and is compatible with Windows 10 and 11. The BIOSTAR B560MHP motherboard comes with a three-year warranty and includes accessories such as SATA cables, an I/O shield, a DVD driver, and a quick guide. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of motherboards available at Techland BD is well recognized. The large selection of Biostar motherboards available at Techland BD is well recognized.
