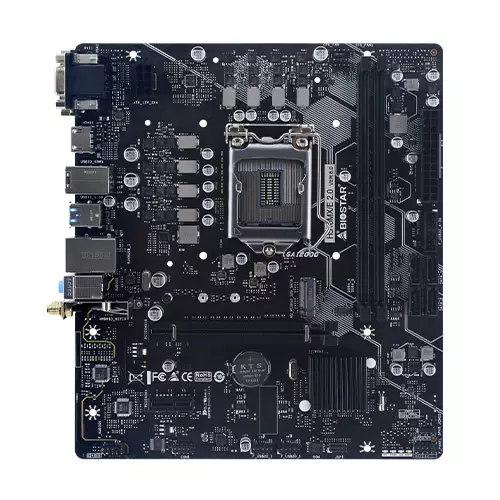

Biostar H510MX/E 2.0 11th Gen Motherboard
Biostar H510MX/E 2.0 11th Gen Motherboard Biostar H510MX/E 2.0 11th Gen Motherboard - 1 Biostar H510MX/E 2.0 11th Gen Motherboard - 2
Discount Tag

Biostar H510MX/E 2.0 11th Gen Motherboard

0 Reviews
Stock : Out of Stock
PID : P2482506014
Brand : Biostar
Model : H510MX/E
Warranty : 3 years
  • Supports PCIe 4.0
  • Supports PCIe M.2 3.0 (32Gb/s)
  • Supports USB 3.2 Gen1
  • Supports WiFi 6 module

    • Product Pricing

    Discount Price

    ৳7,300 ৳8,500
    + Available Payment Method

    EMI Start From*

    ৳257

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
    * Please refer to www.biostar.com.tw for CPU support list.

    Mainboard

    Chipset Intel H510

    Memory

    Memory Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
    2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
    Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

    Storage

    Supported Storage Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
    4 x SATA III Connectors (6Gb/s)
    1 x M.2 (M Key) Socket:
    Supports M.2 Type 2242/ 2260/ 2280 SSD module.
    Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
    * When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled.

    Graphics

    Graphics By CPU model
    Supports DX12
    Supports HDCP
    Supports HDMI 1.4 version

    Networking & Connectivity

    LAN Intel I219V
    10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

    Audio & Microphone

    Audio ALC897
    7.1 Channels, High Definition Audio

    Ports

    Slots 1 x PCIe 3.0 x1 Slot
    1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
    * The PCIe 4.0 only depends on Rocket Lake CPUs.
    Internal I/O Ports 4 x SATA III Connectors (6Gb/s)
    1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
    2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
    1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
    1 x 8-Pin Power Connector
    1 x 24-Pin Power Connector
    1 x CPU Fan Connector
    1 x System Fan Connector
    1 x Front Panel Header
    1 x Front Audio Header
    1 x Internal Stereo Speaker Header
    1 x Clear CMOS Header
    1 x COM Port Header
    * M.2 (E key) Wi-Fi card is not provided
    External I/O Ports 2 x WIFI Antenna Ports
    1 x PS/2 Keyboard / Mouse
    1 x HDMI Port
    1 x VGA Port
    1 x DVI-D Port
    2 x USB 3.2 (Gen1) Ports
    4 x USB 2.0 Port
    1 x LAN port
    3 x Audio Jack
    USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
    8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

    Physical Specification

    Form Factor Micro ATX
    Dimension 20.8 cm x 23.6 cm ( W x L )

    Warranty Information

    Warranty 03 Years

    PRODUCT DESCRIPTION

    Intel H510 chipset

    With the Intel® H510 chipset and the 10th/ 11th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel H510 chipset

    HDMI 4K2K

    The new 4K2K resolution enables high-definition image display with four times the resolution of a full HD 4K2K display is faithfully expresses bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

    Intel GbE LAN

    Unlike ordinary LAN solutions, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice for performance seekers.

    PCIe M.2

    PCIe M.2 32Gb/s is the latest storage interface; it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s.

    PCIe Gen 3.0

    PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.

    SATAIII 6Gbps

    SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
