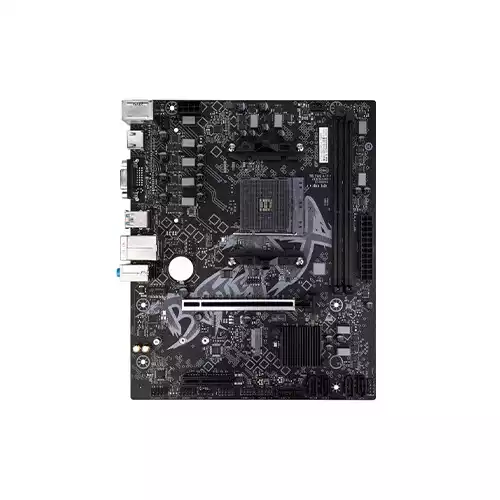

Colorful BATTLE-AX B550M-D PRO V14 DDR4 AMD AM4 M-ATX Motherboard
Product Information
Colorful BATTLE-AX B450M-K M.2 V14 AMD mATX Motherboard
Chipset - AMD B450
Form Factor - M-ATX
Memory Type - DDR4
Memory size - 64GB
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Supports AMD Ryzen series processors
that fit the AMD AM4 slot of the motherboard
AMD B450
Mainboard
128M UEFI, support multiple languages
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Support DDR4-4000(OC)/3733
(OC)/3600(OC)/3466(OC)
/3200(OC)/3000(OC)/2933(OC)/
2800(OC)/2666/2400/2133MHz memory
Support Extreme Memory Profile (XMP)
memory technology
Supports dual-channel memory technology
Maximum Memory
up to 64GB of memory (a single socket
can support up to 32 GB of memory)
Storage
1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces
M.2_1 slot: supports 2242/2280 M.2 SSD
(PCIe 3.0 x4/SATA, CPU channel)
Networking & Connectivity
1×Gigabit network interface
RTL8111H Gigabit Network Card
Audio & Microphone
Realtek ALC897 high-fidelity decoding chip,
Support up to 5.1 channels
Ports
PCI
1×PCIe 3.0 x16 slot
1×PCIe 2.0 x1 slot
M.2 Socket
1x M.2 slot
M.2_1 slot: supports 2242/2280 M.2 SSD
(PCIe 3.0 x4/SATA, CPU channel)
Rear I/O :
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, Supports up
to 4K 60Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×Gigabit network interface
-3×Audio interfaces
(audio input/audio output/microphone)
-1×CPU fan pin
-1×System fan pin
-1×USB 2.0 pin expandable 2
USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2
USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Digital audio pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×Debug light pin
-1×USB live control jumper
1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
Special Features
Power Management: Support S3/S4 wake-up,
network S5 wake-up, support USB wake-up,
support timing boot, call boot
Hardware Monitor: CPU fan speed is controllable,
system fan speed is controllable,
CPU temperature monitoring,
system temperature monitoring,
and each group of voltage monitoring
Physical Specification
M-ATX
230mm x 197mm
Warranty Information
3 years
PRODUCT DESCRIPTION
Colorful BATTLE-AX B450M-K M.2 V14 AMD mATX Motherboard in Bangladesh
Colorful BATTLE-AX B450M-K M.2 V14 AMD mATX Motherboard is a reliable and budget-friendly motherboard designed for AMD Ryzen series processors with the AM4 socket, making it a perfect choice for gamers, students, and professionals seeking performance without compromise. Built on the AMD B450 chipset, this motherboard provides solid stability, compatibility, and efficiency for modern computing needs. It supports 2 DDR4 DIMM slots, allowing up to 64GB of dual-channel memory with speeds reaching DDR4-4000 (OC), and offers Extreme Memory Profile (XMP) support for easy overclocking. For storage, it features 1 M.2 PCIe 3.0 x4/SATA slot and 4 SATA 6Gb/s ports, providing flexible options for high-speed SSDs and large-capacity HDDs.
Graphics output options include HDMI 2.0 supporting 4K 60Hz and VGA, making it compatible with a wide range of monitors. Networking is powered by the RTL8111H Gigabit Ethernet port for fast and stable wired connections, while audio is handled by the Realtek ALC897 high-fidelity 5.1-channel codec, delivering immersive sound for gaming and media consumption. The motherboard includes PCIe 3.0 x16 and PCIe 2.0 x1 slots for expansion cards and additional peripherals. With a compact M-ATX form factor (230mm x 197mm), it fits easily into most cases while offering full functionality, including comprehensive fan and temperature monitoring. Advanced power management and wake-up features ensure energy efficiency and reliability. Available at the best price in Bangladesh from Tech Land BD, the Colorful BATTLE-AX B450M-K M.2 V14 is a high-value choice for building capable and cost-effective PCs.
Which processors are compatible with the B450M-K M.2 V14 motherboard?
It supports AMD Ryzen series processors with the AM4 socket.
How much memory does this motherboard support?
It supports up to 64GB of DDR4 RAM in a dual-channel configuration.
Does it have an M.2 slot for SSDs?
Yes, it has 1 M.2 PCIe 3.0 x4/SATA slot for high-speed SSDs.
