Product Information

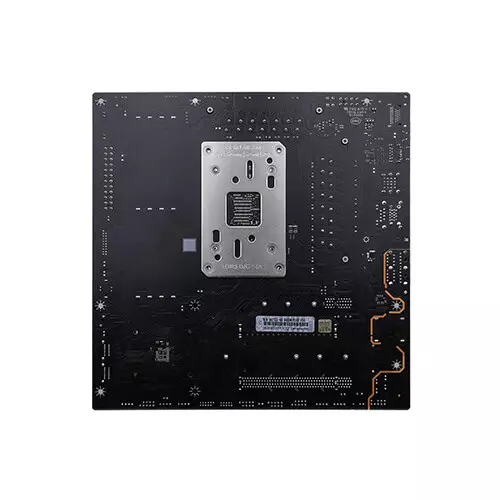

Colorful BATTLE-AX B650M-PLUS V14 AM5 DDR5 M-ATX Motherboard
Form Factor: M-ATX
Chipset: AMD B650
Memory: 4 x DDR5 up to 48 GB
Storage: 2 x M.2 slots and 4 x SATA 6Gb/s
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
AMD B650
Mainboard
128M UEFI, support multiple languages
Memory
4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support Extended Profiles for Overclocking (EXPO) memory technology
Storage
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
- M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
(* Is it supported PCIe 5.0 is related to the CPU used with the motherboard)
Networking & Connectivity
RTL8125BG 2.5Gbit LAN
Audio & Microphone
Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels
Ports
Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×USB 3.2 Gen 2 Type-A interface
-1×USB 3.2 Gen 2 Type-C interface
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
-1×2.5G network interface
-6×Audio interfaces (audio input/audio output/microphone)
-1×BIOS update button
On board:
-1×CPU fan pin
-3×System fan pins
-1×water cooling pump pin
-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface
-2×5V 3-pin ARGB pins
-2×12V 4-pin RGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×COM port pin
-1×BIOS burner pin
-1×POST card pin
1×PCIe 5.0 x16 slot
1×PCIe x16 slot (supports PCIe 4.0 x4 specifications)
1×PCIe 4.0 x1 slot
Special Features
Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Others
Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Physical Specification
M-ATX
245mm x 245 mm
Warranty Information
3 Years
PRODUCT DESCRIPTION
Colorful BATTLE-AX B650M-PLUS V14 Motherboard in Bangladesh
Colorful BATTLE-AX B650M-PLUS V14 AM5 DDR5 M-ATX Motherboard is a top-tier choice for PC builders in Bangladesh who want cutting-edge performance and future-ready features. Designed for AMD Ryzen 7000/8000/9000 series processors with the AM5 socket, this motherboard supports high-speed DDR5 memory up to 192GB across four slots, including XMP and EXPO memory technologies for effortless overclocking. Its dual M.2 slots and four SATA 6Gb/s ports provide flexible storage options and support RAID 0, 1, and 10 configurations for enhanced data management.
The rear I/O panel offers extensive connectivity, including USB 2.0, USB 3.2 Gen 1/2 Type-A and Type-C ports, DisplayPort 1.2, and HDMI 1.4 for high-resolution display support, a 2.5G LAN port, and six audio interfaces. Additionally, onboard features include multiple fan headers, ARGB/RGB support, and BIOS update functionality. With PCIe 5.0 and PCIe 4.0 expansion slots, high-quality Realtek ALC897 audio, and a compact M-ATX design (245mm x 245mm), the BATTLE-AX B650M-PLUS V14 ensures stability, efficiency, and performance for gaming, content creation, and high-end computing.
Buy the Best Colorful BATTLE-AX B650M-PLUS V14 Motherboard in Bangladesh from Tech Land BD
Colorful BATTLE-AX B650M-PLUS V14 AM5 DDR5 M-ATX Motherboard available at Tech Land BD is ideal for gamers and professionals seeking speed, reliability, and advanced connectivity. Tech Land BD guarantees genuine products, excellent service, and fast delivery in Bangladesh. With support for the latest AMD processors, high-speed DDR5 memory, multiple storage options, and premium build quality, the BATTLE-AX B650M-PLUS V14 is perfect for building high-performance PCs that meet modern computing needs.
Which processors are compatible with the BATTLE-AX B650M-PLUS V14 motherboard?
It supports AMD Ryzen 7000, 8000, and 9000 series processors that use the AM5 socket.
How much memory can this motherboard support?
It has four DDR5 slots supporting up to 192GB of RAM, with speeds up to DDR5-7600 (OC).
Does the motherboard support PCIe 5.0 devices?
Yes, it includes a PCIe 5.0 x16 slot, though PCIe 5.0 support depends on the CPU used.
CUSTOMER REVIEWS
Overall Rating
Login to write a review.
Good value for budget AM5 builds, plenty of features like dual M.2 slots and 2.5G LAN. BIOS could use more polish and support feels limited.
07 August, 2025
