Product Information
Cudy GS2048PS4 48 Port Gigabit PoE+ L2 Managed Network Switch
44× GbE 802.3at/af + 4× GbE 802.3bt
Silent Cooling System.
720W Power Supply
L2 Managing Features
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Networking & Connectivity
32768
12 KB
VLANs: 4096
802.3 Protocols:
802.3i 10BASE-T
802.3u 100BASE-T
802.3ab 1000BASE-T
802.3z 1.25 Gbps over Fiber
802.3x Flow Control
802.3af PoE
802.3at PoE
802.1 Protocols:
802.1d: STP
802.1s: MSTP
802.1p: LAN Layer 2 QoS/CoS
802.1q: VLAN Bridge Operation
802.1w: RSTP
802.1ab: LLDP/LLDP-MED
802.1x User Authentication
Battery And Power
Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption: 720W
Max Power Excluding PoE: 12W
Ports
10G SFP+ Slots: 4
Gigabit RJ45 PoE Ports: 44
Max Power on a Single PoE Port:
- Port 1~4: 90W
- Port 5~44: 30W
PoE Port Notes: PoE port #1-#4 support 802.3bt/at/af, and the rest support 802.3at/af.
Shielded RJ45 Port: True
Console Ports: 1× RJ45
LED:
Power
PoE Status of Each PoE Port
Power Input: AC Inlet
Physical Buttons: Reset Button
Security
L2 Features:
IGMP Snooping
Loop Prevention
DHCP Snooping
STP/RSTP
LLDP Config and Neighbors
MTU VLAN
Port-Based VLAN
802.1Q VLAN
Voice VLAN
Protocol VLAN
Surveillance VLAN
DSCP QoS
802.1p QoS
Port-Based QoS
GVRP
L3 Features
Static Routing
ARP Proxy
Dynamic ARP
Interface Configuration
IMPV Binding
IP Source Guard
UDLD
ACL (Layer 2 - Layer 4)
AAA
RADIUS
TACACS+
Management VLAN
Others
Control Methods:
Config Web Page
SNMP V1/V2/V3
Telnet
SSH
RMON
Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Physical Specification
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

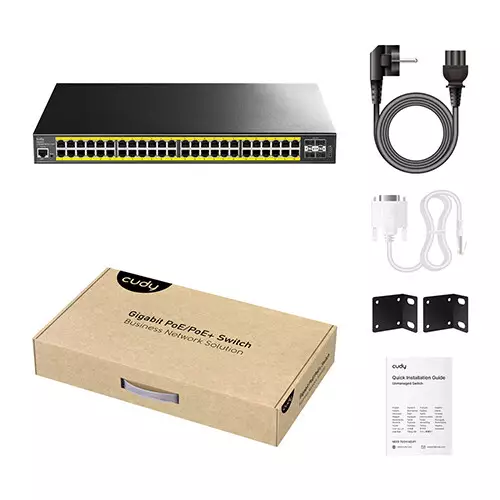

GS2048PS4
Power Cord
Mounting Kit
Installation Guide
4910 g
440×305×44 mm
Technical Info
Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
130.944 Mpps
16 Mbit
Port Management:
PoE Priority
PoE Watchdog On/Off
PoE Wattage/Voltage/Current Status
PoE Time Schedule
Port On/Off
Port Negotiation Speed
Port Trunk (Static Aggregation)
802.3ad LACP (Active Aggregation)
Port Mirror
Data Rate Limit
Jumbo Frame Settings
Storm Control
Traffic Monitor
MAC Address Management
EEE (802.3az)
Warranty Information
2 Years
PRODUCT DESCRIPTION
Cudy GS2048PS4 48 Port Network Switch in Bangladesh
Cudy GS2048PS4 48 Port Gigabit PoE+ L2 Managed Network Switch is a powerful enterprise-grade solution designed to meet the demands of large-scale networks in Bangladesh. Featuring 44 Gigabit RJ45 PoE ports and 4 high-speed 10G SFP+ slots, this switch delivers exceptional connectivity and flexibility for businesses, data centers, and surveillance systems. Ports 1–4 support up to 90W PoE power under 802.3bt/at/af standards, while ports 5–44 provide 30W PoE under 802.3at/af, making it ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices. With a maximum switching capacity of 176 Gbps and a forwarding rate of 130.944 Mpps, the GS2048PS4 ensures smooth, high-speed data transmission across complex networks. It supports advanced Layer 2 and Layer 3 features, including VLANs, QoS, IGMP snooping, static routing, ACLs, and authentication protocols such as RADIUS and TACACS+, giving administrators complete control over traffic management and security. The switch also offers intelligent PoE management with scheduling, monitoring, and prioritization, helping optimize power usage and reduce costs. Built with a durable metal casing and rackmount design, it is engineered for reliability in demanding environments, operating between -10℃ and 50℃ with surge and grounding protection. With a MAC address table of 32,768 entries and support for 4096 VLANs, the GS2048PS4 provides scalability for growing infrastructures. Management is simplified through web-based configuration, SNMP, Telnet, and SSH, ensuring flexibility for IT teams. Whether deployed in enterprise offices, surveillance networks, or campus environments, the Cudy GS2048PS4 offers unmatched performance, stability, and efficiency. Available now in Bangladesh, it is the perfect choice for organizations seeking a robust and cost-effective managed PoE+ switch.
Buy the Best Cudy GS2048PS4 Model in Bangladesh from Tech Land BD
For customers in Bangladesh, Tech Land BD is the most trusted destination to purchase the Cudy GS2048PS4 48 Port Gigabit PoE+ L2 Managed Network Switch. As a leading retailer of networking and IT products, Tech Land BD ensures genuine devices with warranty support and competitive pricing. The GS2048PS4 is ideal for enterprises, surveillance systems, and institutions that require reliable, high-speed connectivity with advanced management features. Tech Land BD provides a seamless shopping experience with secure payment options, detailed product information, and fast nationwide delivery. By choosing Tech Land BD, customers can be confident they are investing in an authentic product backed by excellent after-sales service, making it the best shop for networking solutions in Bangladesh.
FAQs:
How much PoE power does the Cudy GS2048PS4 provide per port?
Ports 1–4 support up to 90W under 802.3bt/at/af, while ports 5–44 provide 30W under 802.3at/af.
What is the maximum switching capacity of the Cudy GS2048PS4?
The GS2048PS4 offers a maximum switching capacity of 176 Gbps, ensuring smooth data flow across large networks.
Where can I buy the Cudy GS2048PS4 in Bangladesh?
You can purchase the Cudy GS2048PS4 from Tech Land BD, a trusted retailer for networking products in Bangladesh.
