GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD

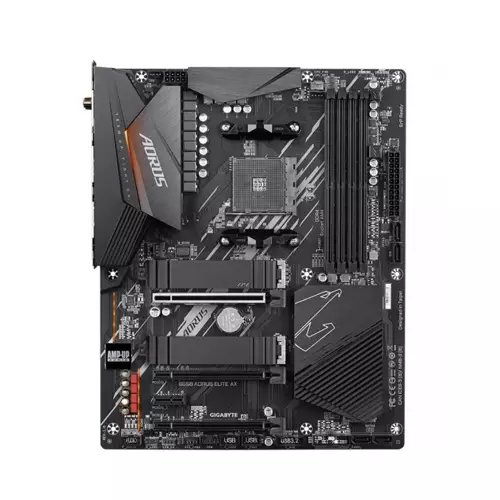

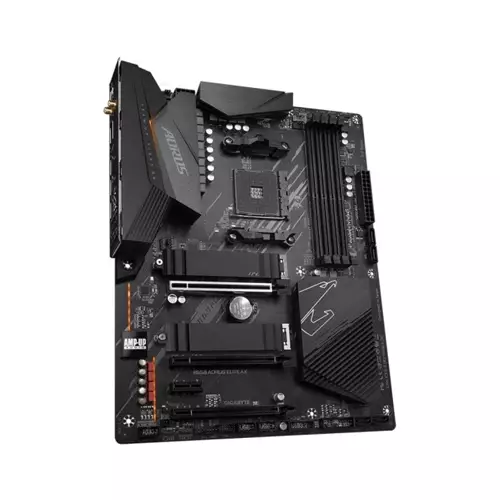

GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD - 1 GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD - 2 GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD - 3

GIGABYTE B550 AORUS ELITE AX V2 AM4 ATX AMD MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506237
Brand : Gigabyte
Model : B550 Aorus Elite AX
Warranty : 3 years
  • AMD Socket AM4
  • AMD B550 Chipset
  • Integrated Graphics
  • Intel Wi-Fi 6 AX200

    • Product Pricing

    Discount Price

    ৳17,200 ৳19,500
    + Available Payment Method

    EMI Start From*

    ৳606

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen
    ™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

    Mainboard

    Chipset AMD B550
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) /
    3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

    * ECC memory (ECC mode) support varies by CPU

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

    - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    - Supporting SATA and PCIe 3.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    - Support for RAID 0, RAID 1, and RAID 10

    Graphics

    Graphics
    Integrated Graphics Processor:

    1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

    Networking & Connectivity

    LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    WiFi Intel Wi-Fi 6 AX200
    Bluetooth BLUETOOTH 5

    Audio & Microphone

    Audio Realtek® ALC1200 codec

    High Definition Audio

    2/4/5.1/7.1-channel

    Support for S/PDIF Out

    Ports

    Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

    - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

    - Supporting PCIe 3.0 x2 mode

    1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

    - Supporting PCIe 3.0 x1 mode

    1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

    - Supporting PCIe 3.0 x1 mode
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x CPU fan header

    1 x water cooling CPU fan header
    3 x system fan headers
    1 x CPU cooler LED strip/RGB LED strip header

    2 x addressable LED strip headers

    2 x RGB LED strip headers

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    1 x Clear CMOS jumper
    External I/O Ports 1 x DisplayPort

    1 x HDMI port

    2 x SMA antenna connectors (2T2R)

    2 x USB 3.2 Gen 2 Type-A ports (red)

    4 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    1 x Q-Flash Plus button

    1 x RJ-45 port

    1 x optical S/PDIF Out connector

    5 x audio jacks
    USB
    CPU:

    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    2 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    2 x USB 3.2 Gen 1 ports on the back panel

    2 x USB 3.2 Gen 1 ports available through the internal USB header

    2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hub:

    4 x USB 2.0/1.1 ports available through the internal USB headers

    Physical Specification

    Form Factor ATX Form Factor
    Dimension 30.5cm x 24.4cm

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    Gigabyte B550 Aorus Elite AX Motherboard in Bangladesh

    In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

    GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
