Product Information

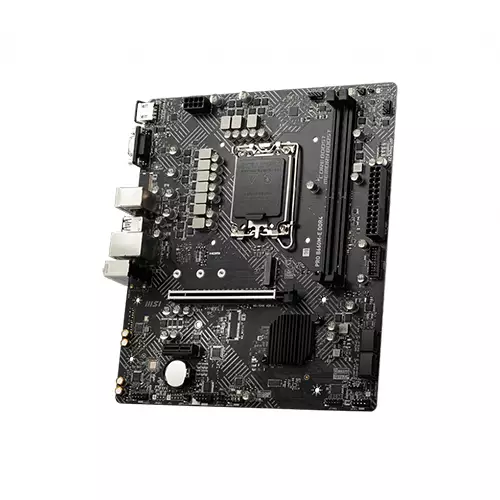

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors Processor so...
- Chipset: Intel B660 Chipset
- Memory: 2x DDR4 memory slots, support up to 64GB 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDE...
- Supported Storage: Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1...
Product Pricing
PRODUCT SPECIFICATIONS
Processor
Processor socket LGA1700
Mainboard
Memory
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Storage
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Networking & Connectivity
Audio & Microphone
7.1-Channel High Definition Audio
Ports
2x System panel connectors
1x Chassis Intrusion connector
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports
available through the internal USB 2.0 connector)
Physical Specification
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty Information
PRODUCT DESCRIPTION
MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.MSI PRO B660M-E DDR4 motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, It will giving you the best online experience with low latency. With the premium layout and digital power design helps to support more cores and provide better performance, In this motherboard, Memory Boost featured with Advanced technology to deliver pure data signals for the best performance, stability and compatibility. It is also has Lightning Fast Experience: PCIe 4.0. The MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution, which comes with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, it also helps the motherboards to support the weight of heavy graphics cards. the motherboard has FROZR AI COOLING, it Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. This latest MSI PRO B660M-E DDR4 motherboard comes with 03 years warranty.
