Product Information

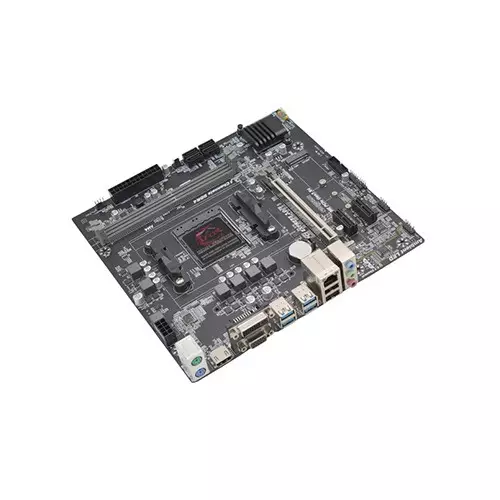

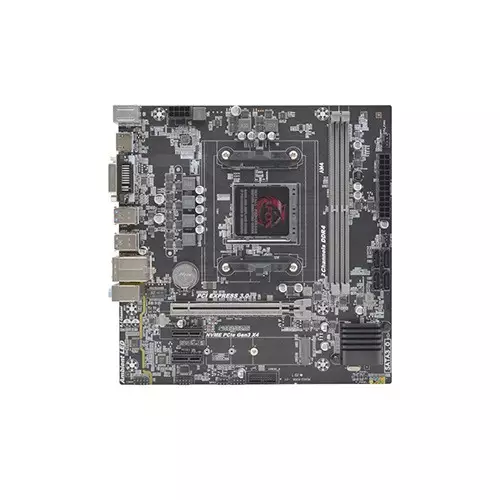

AFOX B450D4-MA-V4 DDR4 AM4 Micro ATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
Graphics
Networking & Connectivity
Wake-On-LAN
Ports
1 x M.2 (PCIe NVMe Gen3 x4 )
1 x HDMI
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone).
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
Special Features
Supports 6-channel audio-out
Others
Dimm: 2 x Memory Slots (Max. capacity of system memory 32GB)
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
AFOX B450D4-MA-V4 DDR4 AM4 Micro ATX Motherboard in Bangladesh
The AFOX B450D4-MA-V4 DDR4 AM4 Micro ATX Motherboard is a powerful and budget-friendly solution for AMD-based systems, offering great performance and expandability. Built with the AMD B450 chipset, this motherboard supports a wide range of AMD Ryzen processors, including the Ryzen 5000 Series, Ryzen 3000 G Series, Ryzen 2000 G Series, and Ryzen 1000 Series. It features dual-channel DDR4 memory with support for speeds up to 3000MHz (OC), ensuring smooth multitasking and faster application performance. With two memory slots, it supports up to 32GB RAM, making it an excellent choice for gaming, office work, or general-purpose computing. The motherboard comes with integrated AMD Radeon Vega graphics, allowing users to build a system without a dedicated GPU while still enjoying quality visuals. For expansion, it offers one PCIe x16 3.0 slot and two PCIe x1 slots, providing flexibility for adding a graphics card or other expansion cards. Storage options include four SATA3 ports and one M.2 slot supporting both PCIe NVMe Gen3 x4 and SATA3, ensuring high-speed storage performance. It also features Realtek 662 6-channel audio and Gigabit LAN, delivering reliable networking and immersive sound. The back panel offers multiple connectivity options, including HDMI, VGA, USB 3.0, USB 2.0, and HD audio ports, making it a well-rounded choice for various needs. Whether you're building a gaming PC or an efficient workstation, the AFOX B450D4-MA-V4 provides excellent value for money. Purchase yours today from Tech Land BD and experience reliable performance at an affordable price!
Frequently Asked Questions (FAQ)
Which processors are compatible with this motherboard?
It supports AMD Ryzen 5000, 3000 G, 2000 G, and 1000 Series processors with an AM4 socket.
Does this motherboard have built-in Wi-Fi?
No, but you can add a Wi-Fi adapter via the PCIe slots or USB ports.
How many RAM slots does this motherboard have?
It has two DDR4 memory slots, supporting up to 32GB RAM.
