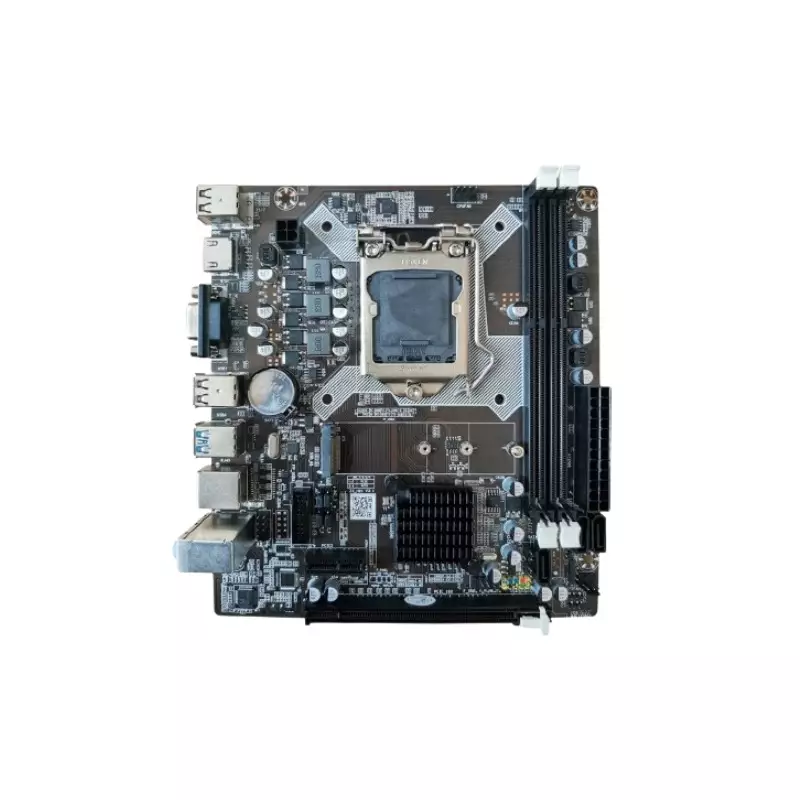

ARKTEK AK-H81M EL LGA1150 Dual Channel DDR3 Micro-ATX Motherboard

ARKTEK AK-H81M EL Motherboard

The ARKTEK AK-H81M EL Motherboard, now available at TechLand BD, is a high-performance motherboard designed to support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150 package. It also supports Intel’s 4th generation multi-core processors. The motherboard features the Intel H81 Chipset and an Integrated Graphics Processor for robust performance and excellent graphics. It supports Dual Channel DDR3 1066/1333/1600MHz memory, with a maximum capacity of up to 8GB each in its 2 memory slots. The motherboard features an onboard Realtek® RTL8105E/8111E Gigabit 100/1000 Mbps LAN and a Realtek® 662 6-channel HD Audio Codec for excellent network and audio performance. It has 3 SATA ports and 1 M.2 port that supports NVME+NGFF. The back panel I/O ports include 1 VGA port, 1 HDMI port, 4 USB 2.0 ports, 2 USB 3.0 ports, 1 LAN jack, and 3 audio jacks. The motherboard also features 1 USB 2.0 pinheader that supports an additional 2 USB 2.0 ports and 1 Front Panel Audio pinheader. It has 1 PCI Express x16 slot and uses UEFI BIOS. The motherboard has a Micro-ATX form factor, measuring 19 X 17 cm, and features 6 mounting holes for easy installation. The package includes 1 SATA cable, 1 I/O Backboard, 1 User Manual, and 1 Driver CD. Get your ARKTEK AK-H81M EL Motherboard today at TechLand BD.
