Product Information

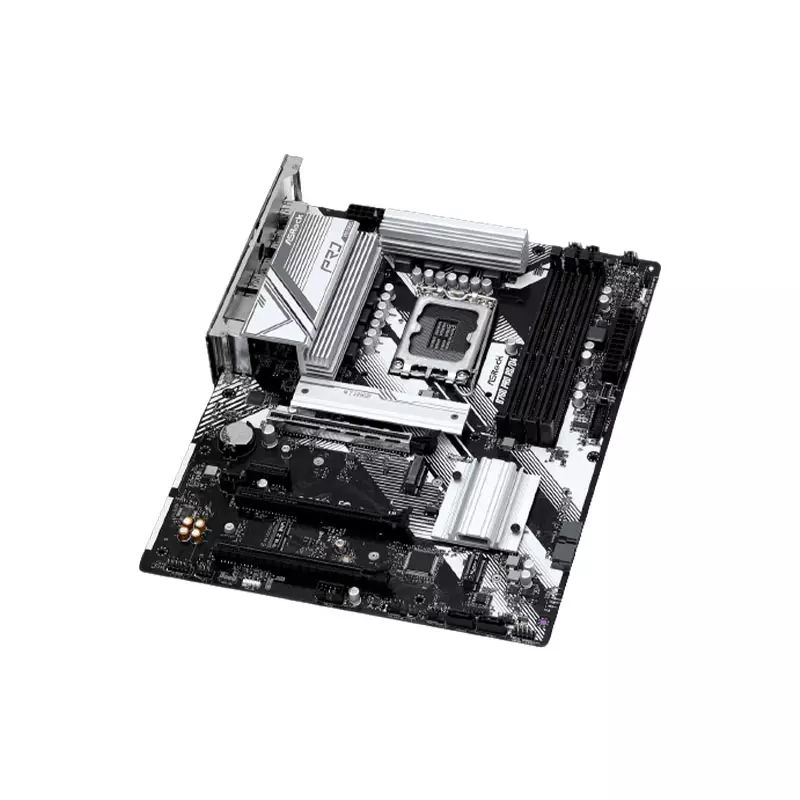

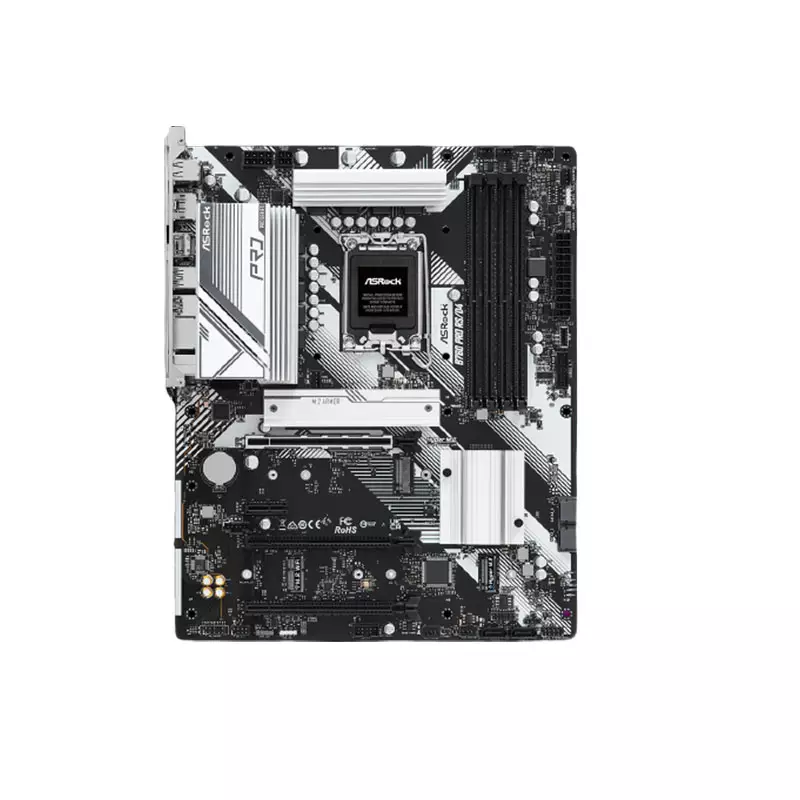

ASROCK B760 PRO RS/D4 13TH & 12TH GEN ATX MOTHERBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Mainboard
Memory
4 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 2.0
Storage
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
Graphics
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Networking & Connectivity
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Audio & Microphone
Nahimic Audio
Ports
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode
1 x PCIe 3.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
1 x USB 3.2 Gen1 Type-C (Rear)
7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front)
4 x USB 2.0 (2 Rear, 2 Front)
Software
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
ASROCK B760 PRO RS/D4 13TH & 12TH GEN ATX MOTHERBOARD PRICE IN BD
The ASROCK B760 PRO RS/D4 13TH & 12TH GEN ATX MOTHERBOARD, a powerhouse of cutting-edge features designed to elevate your computing experience. Crafted with meticulous attention to detail, this motherboard brings forth a blend of rock-solid durability, ultrafast connectivity, and hassle-free troubleshooting capabilities. Experience unmatched stability and performance with the ASROCK B760 PRO. Featuring a robust 7+1+1 Power Phase design and 50A Dr.MOS for VCore+GT, this motherboard ensures efficient power delivery to your system components, enhancing overall performance and reliability. The pre-installed I/O shield streamlines installation, while the ASRock Intel® 4-Layer Memory POOL Technology optimizes memory performance by intelligently routing traces on outer layers. This motherboard is designed to support 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), offering you the power and flexibility for the latest computing tasks. With features like Intel® Hybrid Technology, Turbo Boost Max 3.0 Technology, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT), you're equipped to handle demanding workloads with ease. The ASROCK B760 PRO features Intel® Xe Graphics Architecture (Gen 12) for impressive visuals. Enjoy stunning 4K and 8K resolutions with the HDMI 2.1 and DisplayPort 1.4 outputs. The 7.1 CH HD Audio powered by Realtek ALC897 Audio Codec, along with Nahimic Audio enhancements, delivers an immersive audio experience for your entertainment and communication needs. Tailor your system with ease using the motherboard's RGB and Addressable LED Headers, allowing you to create captivating lighting effects. Smart fan control, Hi-Density Power Connectors, and Thunderbolt™ AIC support further contribute to a seamless and customized setup. The ASRock Motherboard Utility, Dragon 2.5G LAN Software, and Polychrome SYNC provide intuitive control over your system's performance and aesthetics. The UEFI BIOS boasts features like EZ Mode and Full HD UEFI for user-friendly configuration, and the ASRock Auto Driver Installer ensures hassle-free driver management experience. Elevate your computing endeavors with the ASROCK B760 PRO RS/D4 13TH & 12TH GEN ATX MOTHERBOARD, a true embodiment of performance, durability, and innovation. Upgrade to a new era of computing with Techland BD today.
