Product Information

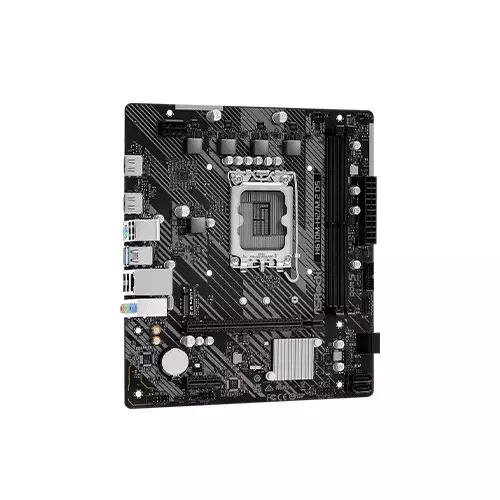

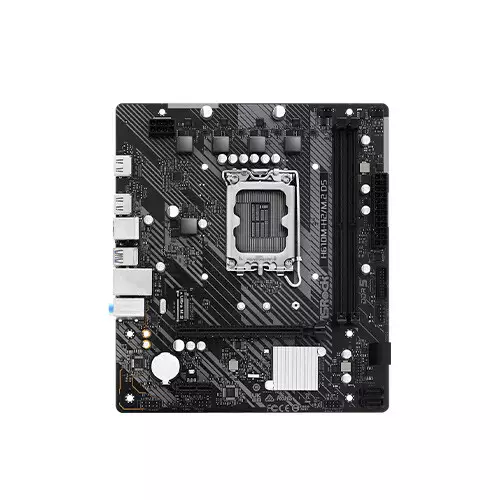

ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard
Chipset - Intel H610
Form Factor - Micro ATX
Memory - DDR5, 64GB
Audio - 7.1 CH HD Audio
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Intel H610
Mainboard
- 128Mb AMI UEFI Legal BIOS with GUI support
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600
- 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel Extreme Memory Profile (XMP) 3.0
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M),
supports type 2242/2260/2280
PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Intel Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible,
support HDCP 2.3 and max.
resolution up to 4K 60Hz
Networking & Connectivity
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Audio & Microphone
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Ports
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1),
supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector
(4-pin) (Smart Fan Speed Control)**
- 1 x 24-pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header
(Supports 2 USB 3.2 Gen1 ports).
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in /
Front Speaker / Microphone
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
Software
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Others
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
- FCC, CE
- ErP/EuP ready (ErP/EuP ready
power supply is required)
Physical Specification
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Technical Info
- Microsoft Windows 10 64-bit / 11 64-bit
Warranty Information
3 years
PRODUCT DESCRIPTION
ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard in Bangladesh
ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard in Bangladesh from Tech Land BD:
1. Which Intel processors are compatible with this motherboard?
2. How much RAM can the motherboard support?
3. Does it have an M.2 slot for SSDs?
CUSTOMER REVIEWS
Overall Rating
Login to write a review.
I used this board with an Intel Core i3 12100 and DDR5 RAM. System booted without issues and works very stable for daily use. Good option if you want DDR5 on a tight budget.
15 August, 2025
