ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard

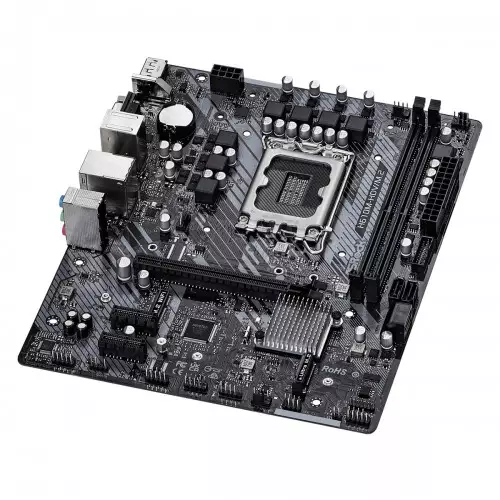

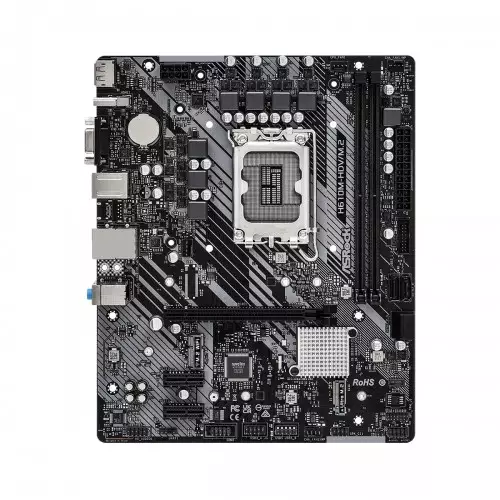

ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard - 1 ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard - 2

ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P1172506028
Brand : ASRock
Model : H610M-HDV/M.2
  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 6 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1,1 M.2 Key-E for WiFi

PRODUCT SPECIFICATIONS

Processor

Supported CPU Supports 12th Gen Intel Core Processors (LGA1700):


Digi Power design

6 Power Phase design

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Mainboard

Chipset Intel H610
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support


ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage

Multi-adjustment

Memory

Memory Dual Channel DDR4 Memory Technology

Slots: 2 x DDR4 DIMM Slots


Supported Memory: Supports DDR4 non-ECC, un-buffered memory up to 3200

Supports ECC UDIMM memory modules (operate in non-ECC mode)

Supports Intel Extreme Memory Profile (XMP) 2.0


Maximum Memory: 64GB

Graphics

Graphics Intel Xe Graphics Architecture (Gen 12)


Three graphics output options: D-Sub, HDMI and DisplayPort 1.4


Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz


Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz

/ 5K (5120x3200) @ 120Hz

Supports D-Sub with max. resolution: up to 1920x1200 @ 60Hz


Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Networking & Connectivity

LAN LAN Port (s):


Gigabit LAN 10/100/1000 Mb/sGiga PHY Intel I219V

Supports Wake-On-LAN

Supports Energy Efficient Ethernet 802.3az

Supports UEFI PXE

Audio & Microphone

Audio 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)

Supports Surge Protection

Ports

Slots PCI: 1 x PCIe Gen4x16 Slot


2 x PCIe Gen3x1 Slots

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Internal I/O Ports 1 x COM Port Header


1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)


1 x 24 pin ATX Power Connector


1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
USB 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)


2 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HDMI 1 x HDMI Port

Special Features

Special Features ASRock Super Alloy:


Premium Power Choke
Sapphire Black PCB

High Density Glass Fabric PCB


ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)


ASRock Full Spike Protection (for all USB, Audio, LAN Ports)


ASRock Live Update & APP Shop

Physical Specification

Form Factor Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm


Solid Capacitor design

Warranty Information

Warranty 03 Year

PRODUCT DESCRIPTION

ASROCK H610M-HDV/M.2 12th Gen Micro ATX Motherboard

Live Update & APP Shop:

ASRock Live Update & APP Shop Is Designed For Your Convenience. We Provide Various Apps And Support Software For Users Download. You Can Also Easily Optimize Your System And Keep Your Motherboard Up To Date With ASRock Live Update & APP Shop.

ELNA Audio Caps:

Who Says High Quality Audio Is Only Available On High-End Motherboards? ASRock Applied ELNA Audio Capacitors On Mainstream And Entry-Level Motherboards! Compared With Traditional Solid Caps, The Leakage Current Of ELNA Audio Caps Is Merely 3uA. This Is The Key To Reduce Noise Level Significantly And Satisfy Even The Pickiest Audiophiles.Techland bd

Full Spike Protection:

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
