Product Information
Cudy GS2028PS4-400W 24-GbE PoE L2 Managed Network Switch
24× GbE with 802.3at/af PoE
4× GbE/SFP Combo Ports
300W Power Supply
L2 Managing Features
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Networking & Connectivity
8192
9.6 KB
VLANs: 4096
802.3 Protocols:
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3az Power Saving
802.3ad Active Link Aggregation
802.3at PoE
802.3af PoE
802.1 Protocols:
802.1d: STP
802.1s: MSTP
802.1p: LAN Layer 2 QoS/CoS
802.1q: VLAN Bridge Operation
802.1w: RSTP
802.1ab: LLDP/LLDP-MED
802.1x User Authentication
Battery And Power
Power Methods: AC
AC: 100-240V~, 50/60Hz
Max Power Consumption:
300W version: 300W
400W version: 400W
Max Power Excluding PoE: 12W
Ports
Gigabit RJ45/SFP Combo Ports: 4
Gigabit RJ45 PoE Ports: #1~#24
Max Power on a Single PoE Port: 30W
PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
Console Ports: 1× RJ45
LED:
Power
System
Link/ACT of Each Ethernet Port
Power Input: AC Inlet
Physical Buttons: Reset Button
Security
L2 Features:
IGMP Snooping
Loop Prevention
DHCP Snooping
STP/RSTP
LLDP Config and Neighbors
MTU VLAN
Port-Based VLAN
802.1Q VLAN
Voice VLAN
Protocol VLAN
Surveillance VLAN
DSCP QoS
802.1p QoS
Port-Based QoS
GVRP
L3 Features:
Static Routing
ARP Proxy
Dynamic ARP
Interface Configuration
IMPV Binding
IP Source Guard
UDLD
ACL (Layer 2 - Layer 4)
AAA
RADIUS
TACACS+
Management VLAN
Others
Grounding Methods: Three-Prong Plug
EMS:
IEC/EN 61000-4-2 ESD Level 4: Contact 8kV, Air 15kV
IEC/EN 61000-4-5 Surge Level X: CM 6kV, DM 4kV
Control Methods:
Config Web Page
SNMP V1/V2/V3
Telnet
SSH
RMON
Console
Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Physical Specification
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

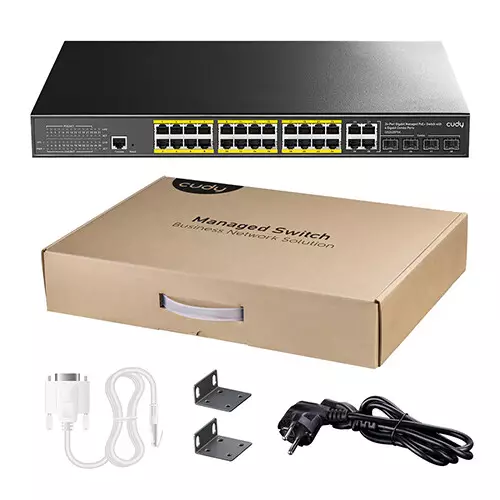

GS2028PS4
Power Cord
Mounting Kit
Installation Guide
3489 g
445×285×45 mm
Technical Info
Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Max Switching Capacity: 56 Gbps
41.664 Mpps
4 Mbit
PoE Priority
PoE Watchdog On/Off
PoE Wattage/Voltage/Current Status
PoE Time Schedule
Port On/Off
Port Negotiation Speed
Port Trunk (Static Aggregation)
802.3ad LACP (Active Aggregation)
Port Mirror
Data Rate Limit
Jumbo Frame Settings
Storm Control
Traffic Monitor
MAC Address Management
EEE (802.3az)
Warranty Information
2-Year Brand Warranty
PRODUCT DESCRIPTION
Cudy GS2028PS4 24-GbE PoE L2 Managed Network Switch in Bangladesh
Cudy GS2028PS4 24-GbE PoE L2 Managed Network Switch is a high-performance networking solution designed for enterprises, surveillance systems, and organizations in Bangladesh that require reliable connectivity with advanced management features. Equipped with 24 Gigabit PoE ports and 4 Gigabit RJ45/SFP combo ports, this switch ensures seamless integration of both copper and fiber connections, making it versatile for diverse network setups. Each PoE port supports up to 30W under IEEE 802.3at/af standards, allowing direct power delivery to IP cameras, VoIP phones, and wireless access points without the need for additional adapters. With a switching capacity of 56 Gbps and a forwarding rate of 41.664 Mpps, the GS2028PS4 guarantees smooth data transmission even in demanding environments. It supports up to 4096 VLANs and features a 8192-entry MAC address table, providing scalability for growing infrastructures. Advanced Layer 2 and Layer 3 protocols such as VLAN bridging, QoS, IGMP snooping, static routing, ACLs, and authentication (RADIUS, TACACS+) give administrators complete control over traffic management and security. Intelligent PoE management includes scheduling, monitoring, and prioritization, helping optimize power usage while reducing operational costs. Built with a durable metal casing and rackmount design, the GS2028PS4 is engineered for reliability, operating between -10℃ and 50℃ with surge and ESD protection. Its management options include web-based configuration, SNMP, Telnet, SSH, and console access, ensuring flexibility for IT professionals. With jumbo frame support, storm control, and energy-efficient technology (802.3az), this switch delivers both performance and efficiency. Whether deployed in enterprise offices, surveillance networks, or campus environments, the Cudy GS2028PS4 offers a cost-effective and robust solution for modern networking needs. Available now in Bangladesh, it is the perfect choice for businesses seeking speed, scalability, and stability in one device.
Buy the Best Cudy GS2028PS4 Network Switch in Bangladesh from Tech Land BD
For customers in Bangladesh, Tech Land BD is the most trusted destination to purchase the Cudy GS2028PS4 24-GbE PoE L2 Managed Network Switch. As a leading retailer of IT and networking products, Tech Land BD ensures genuine devices with warranty support and competitive pricing. The GS2028PS4 is ideal for enterprises, surveillance systems, and institutions that require stable, high-speed connectivity with advanced management features. Tech Land BD provides a seamless shopping experience with secure payment options, detailed product information, and fast nationwide delivery. By choosing Tech Land BD, customers can be confident they are investing in an authentic product backed by excellent after-sales service, making it the best shop for networking solutions in Bangladesh.
FAQs:
How much PoE power does the Cudy GS2028PS4 provide per port?
Each PoE port supports up to 30W under IEEE 802.3at/af standards, suitable for powering IP cameras, VoIP phones, and access points.
What is the maximum switching capacity of the Cudy GS2028PS4?
The GS2028PS4 offers a maximum switching capacity of 56 Gbps, ensuring smooth and efficient data flow across networks.
Where can I buy the Cudy GS2028PS4 in Bangladesh?
You can purchase the Cudy GS2028PS4 from Tech Land BD, a trusted retailer for networking products in Bangladesh.
