Product Information

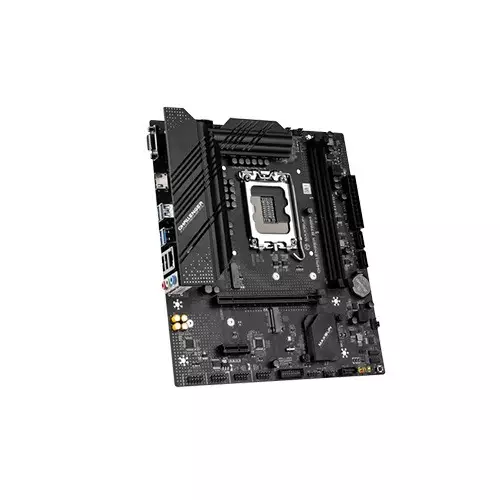

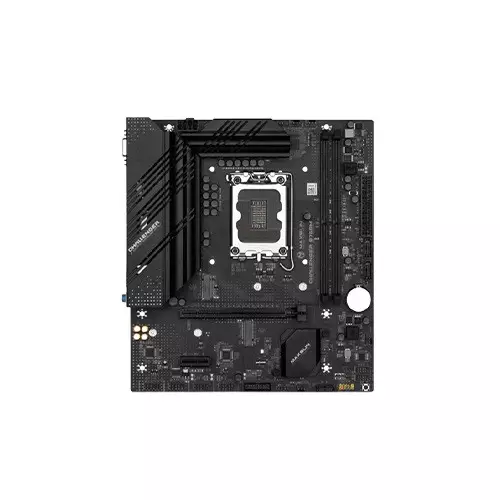

Maxsun Challenger B760M DDR4 Micro-ATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Pentium Gold and Celeron Processors
LGA 1700
Mainboard
Memory
Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.)
/ 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.)
/ 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
Supports Intel XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
Storage
M.2_2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
3 x SATA 6Gb/s ports
Graphics
*Support VGA, maximum resolution of 2048x1536 50Hz,
2048x1280 60Hz, 1920x1200 60Hz
1x HDMI port
*HDMI port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types.
Please refer to www.intel.com for any updates.
Networking & Connectivity
Audio & Microphone
5.1-Channel High Definition Audio
Ports
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
1x PUMP Fan
2x System Fan
2 x M.2 slots (Key-M)
3x SATA 6Gb/s ports
1x CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x 9-Pin BIOS_SPI
1x 2-Pin ME_PROTECT
2x USB 3.2 Gen1 Type A
4x USB 2.0
*Rear USB (Total 6 ports)
4x USB 3.2 Gen1 Type A
2x USB 2.0
Others
Supports RAID 0, RAID 1,
RAID 5 and RAID 10 for SATA storage devices
Physical Specification
1x PCIe 3.0 x1 slot
230mm x 205mm
Technical Info
Warranty Information
PRODUCT DESCRIPTION
Maxsun Challenger B760M DDR4 Micro-ATX Motherboard in Bangladesh
The Maxsun Challenger B760M DDR4 Micro-ATX Motherboard is a robust, feature-rich motherboard designed to deliver exceptional performance for modern computing needs. With support for 12th and 13th Gen Intel Core processors and advanced memory configurations, this motherboard is tailored for gamers, professionals, and PC enthusiasts looking to build a powerful system. Its compact Micro-ATX form factor makes it suitable for a variety of setups without compromising on essential features.
Technical Details
The Maxsun Challenger B760M DDR4 Micro-ATX Motherboard is powered by the Intel B760 chipset and supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors, using the LGA 1700 socket. It accommodates up to 64GB of DDR4 memory across two DIMM slots, supporting speeds up to 4266MHz (O.C.) and Intel XMP 2.0 for optimized overclocking. Onboard graphics support includes one VGA port (2048x1536@50Hz) and one HDMI port (up to 4K@30Hz), dependent on the processor’s integrated graphics capabilities. The motherboard features dual PCIe slots: one PCIe 4.0 x16 for high-speed GPUs and one PCIe 3.0 x1 for additional expansion. Storage options are versatile, with two M.2 slots supporting PCIe 4.0 x4 and three SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support. USB connectivity includes six ports on the front (two USB 3.2 Gen1 Type A and four USB 2.0) and six on the rear (four USB 3.2 Gen1 Type A and two USB 2.0). Networking and audio are powered by Realtek RTL8111H 1G LAN and Realtek ALC897 Codec with 5.1-channel HD audio. The motherboard includes essential internal I/O connectors, such as fan headers, debug LEDs, and support for Windows 11 and 10 64-bit operating systems. Its compact size (230mm x 205mm) fits snugly in most mid-sized PC cases.
Availability and Usability
The Maxsun Challenger B760M DDR4 Micro-ATX Motherboard is available at Tech Land BD, making it accessible for PC builders and enthusiasts in Bangladesh. This motherboard is perfect for gaming, multimedia, and general productivity tasks, thanks to its wide range of features like high-speed memory, versatile storage options, and advanced connectivity. Customers searching for the Maxsun Challenger B760M DDR4 Micro-ATX Motherboard Price in BD will find Tech Land BD an excellent choice for quality products at competitive prices.
Highlights
- Supports 12th and 13th Gen Intel Core processors for exceptional performance.
- Dual M.2 PCIe 4.0 slots and RAID-ready SATA ports for versatile storage solutions.
- 64GB DDR4 memory capacity with Intel XMP 2.0 support for overclocking.
- Compact Micro-ATX form factor with HDMI and VGA for display options.
- Realtek 1G LAN and HD audio for smooth connectivity and immersive sound.
Build Your Dream PC with the Maxsun Challenger B760M DDR4 Micro-ATX Motherboard from Tech Land BD
Don’t wait to elevate your computing experience—purchase the Maxsun Challenger B760M DDR4 Micro-ATX Motherboard from Tech Land BD today! With its cutting-edge features, robust build quality, and excellent compatibility, this motherboard is perfect for gamers and professionals alike. Explore the Maxsun Challenger B760M DDR4 Micro-ATX Motherboard Price in Bangladesh and take the first step toward building a high-performance PC. Tech Land BD offers reliable service, competitive pricing, and top-notch products—grab yours now before stock runs out!
