Product Information

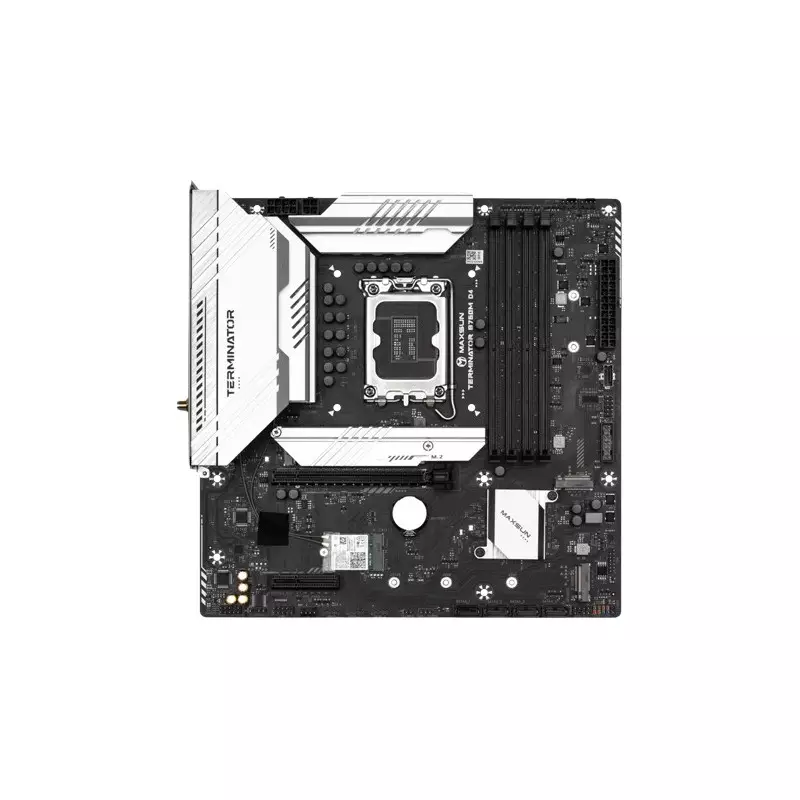

MAXSUN Terminator B760M D4 WIFI6E Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Memory
Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
Storage
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Graphics
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
Audio & Microphone
5.1-Channel High Definition Audio
Ports
1x 8+4-pin Power Connector (CPU_PWR)
1x CPU Fan
3x System Fan
3 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x Clear CMOS
1x 4-Pin SPEAKER
1x Front Audio
1x M.2 slots (Key-E)
1x COM_A Port
1x TPM pin header (Support TPM 2.0)
1x USB 3.2 Gen2x2 Type C
2x USB 3.2 Gen1 Type A
2x USB 2.0
Rear USB (Total 8 ports):
2x USB 3.2 Gen1 Type A
6x USB 2.0
Software
Physical Specification
1x PCIe 3.0 x4 slot
245mm x 245mm
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MAXSUN Terminator B760M D4 WIFI6E Motherboard in Bangladesh
The Maxsun Terminator B760M D4 WIFI6E Motherboard, available at TechLand BD, is a top-tier motherboard designed for high-performance computing. It features an Intel B760 chipset and supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors with an LGA 1700 socket. The motherboard supports DDR4 memory with a maximum capacity of 128GB and a wide range of bus speeds from 2133 MHz to 5333 MHz (O.C.). It also supports Intel® XMP 2.0 OC and dual-controller dual-channel mode. For graphics, it offers 1x DisplayPort 1.4 and 1x HDMI™ port that supports up to 4K@30Hz. The motherboard also includes 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot for expansion. For storage, it supports M.2 SSDs (2242/2280/22110) with PCIe 4.0 x4 mode and has 4x SATA 6Gb/s ports. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard features a total of 13 USB ports, a Realtek® RTL8125BG 2.5G LAN, and Intel® Wi-Fi 6E AX211 for wireless connectivity. It also supports Bluetooth® 5.3. The motherboard features a Realtek® ALC897 codec for audio, providing a 5.1-channel high-definition audio experience. The motherboard also includes a variety of internal I/O ports and features 4x distributed debug LED. It supports Windows® 11 64-bit and Windows® 10 64-bit operating systems. The Maxsun Terminator B760M D4 WIFI6E Motherboard comes in an M-ATX form factor with dimensions of 245mm x 245mm. This high-performance motherboard is available at TechLand BD.
