Product Information

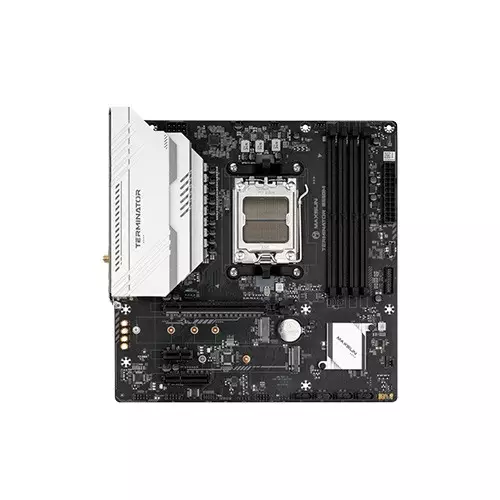

MAXSUN Terminator B650M WIFI6 AMD B650 AM5 DDR5 M-ATX Motherboard
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Ryzen7000, Ryzen8000,
Ryzen9000 series processors
TDP: 170W
Mainboard
Memory
Supports dual-channel memory technology
Support 4800MHZ/5200MHZ/OC Memeroy Frequency
Storage
4x SATA 3.0 ports
3* SATA3.0 ports
Display
1 DP interface with a maximum resolution of 4096x2160@60Hz
Networking & Connectivity
Audio & Microphone
Ports
1 8PIN motherboard ATX 12V power port with 12V input
1x CPU Fan
2x System Fan
1x PS/2 interface
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 4-Pin SPEAKER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x CLR CMOS
4* USB2.0 ports,and and 1 USB Type-C (10Gbps) port Board pins: 1 set (2) USB2.0 pins,
1 set (2) USB3.2 GEN1 pins, 1 front USB Type-C (10Gbps) port
Software
Physical Specification
1x PCIe 4.0 x4 slot
1x PCIe 3.0 x1 slot
245mm x 245mm
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MAXSUN Terminator B650M WiFi6 AMD B650 AM5 DDR5 M-ATX Motherboard in Bangladesh
MAXSUN Terminator B650M WiFi6 Motherboard is a robust and future-ready AMD platform built for users who demand performance, stability, and next-gen features in a compact M-ATX form factor. Designed around the AMD B650 chipset, it supports AM5 socket processors including Ryzen 7000, 8000, and 9000 series, with a TDP of up to 170W, making it ideal for high-performance builds in gaming, content creation, or productivity. This board features 4 DDR5 DIMM slots, supporting up to dual-channel memory at speeds from 4800MHz to 5200MHz, with room for overclocking. It includes one HDMI port (4K@30Hz) and one DisplayPort (4K@60Hz), ensuring high-definition visual output for modern displays. Expansion is handled through a PCIe 4.0 x16 slot, a PCIe 4.0 x4 slot, and a PCIe 3.0 x1 slot, giving flexibility for powerful GPUs and additional cards. Storage capabilities are strong with one M.2 PCIe 4.0 slot (2242/2280/22110), ideal for NVMe SSDs, and four SATA 6Gb/s ports for HDDs or additional SSDs. On the connectivity side, the board is equipped with Wi-Fi 6, Realtek 2.5G LAN, and Bluetooth, providing fast and stable internet connections. Rear I/O includes USB 3.2 Gen1, USB 2.0, and a USB Type-C (10Gbps) port, while internal headers allow further USB expansion including a front USB-C 10Gbps. With Realtek ALC897 audio, rich I/O options, a solid power delivery system, and extensive internal connectivity, the MAXSUN Terminator B650M WiFi6 is a feature-packed, reliable choice for AMD-based builds. Now available at Tech Land BD with a 3-year warranty, it's a smart investment for serious PC builders.
Which AMD processors are compatible with the MAXSUN Terminator B650M?
It supports Ryzen 7000, 8000, and 9000 series processors on the AM5 socket.
Does the motherboard support Wi-Fi and Bluetooth?
Yes, it comes with Wi-Fi 6 and Bluetooth connectivity built-in.
How many M.2 and SATA storage slots are available?
It offers 1x M.2 PCIe 4.0 slot and 4x SATA 6Gb/s ports for storage expansion.
