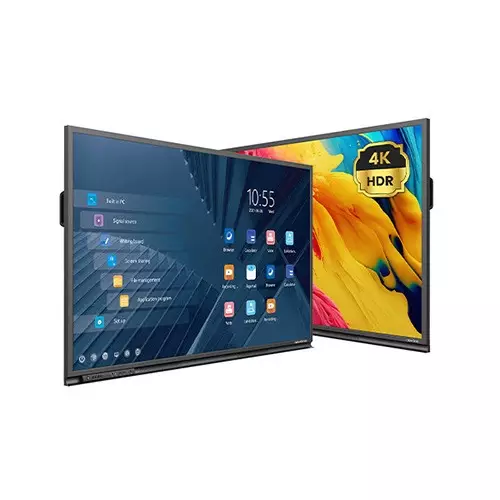

Newline S TT-8622S 86-inch 4K UHD Education/Meeting Room Interactive Flat Panel Display
Newline S TT-8622S 86-inch 4K UHD Education/Meeting Room Interactive Flat Panel Display Newline S TT-8622S 86-inch 4K UHD Education/Meeting Room Interactive Flat Panel Display - 1

Newline S TT-8622S 86-inch 4K UHD Education/Meeting Room Interactive Flat Panel Display

0 Reviews
Stock : In Stock
PID : P5192506005
SKU : TT-8622S
Brand : Newline
Model : S TT-8622S
Warranty : 3-Years
  • Screen Size: 86 Inch
  • Resolution: 3840 x 2160 4K UHD
  • Ram: 4GB
  • ROM: 32GB build in

    • Product Pricing

    Discount Price

    ৳400,000 ৳440,000
    + Available Payment Method

    EMI Start From*

    ৳14,084

    PRODUCT SPECIFICATIONS

    Processor

    Processor A55*4 ( 4 Core )

    Memory

    RAM 4GB DDR4
    Memory Total In-built Memory: 64GB (Inbuilt TF Card slot support max 64GB)

    External Memory: 32GB TF card (build-in)

    Storage

    ROM 32GB build in

    Display

    Screen Size 86 Inch
    Resolution 3840*2160
    Brightness 500cd/m2
    Aspect Ratio 16:9
    Response Time 4ms
    Display Colors 10 bits
    Viewing Angle 178∘
    Contrast 15000:1
    Display Area 1895 × 1066 mm
    Display Details Display Orientation: Landscape

    Graphics

    Graphics Mali G52MP2 (4 Core)

    Mouse & touch

    Touch System Bondin Technology: Zero Bonding

    Touch Sensor: Advanced IR

    Surface material of touch surface: Anti - Glare+ Anti-Fingerprint + Tempered Glass

    Touch Screen Writing Tools: Nano Pen (>2mm width) included or Finger

    TOUCH Response time: 4ms

    Positioning Accuracy: ±1mm

    Transmission Range: 5M

    Transparency: >88%

    Glass thickness: 4mm

    Touch Points: Up to 20 points

    Networking & Connectivity

    Connectivity AV Inputs at front side:
    HDMI IN (2.0) *1, Touch USB (USB2.0 Type-B) *1,

    USB3.0(Public Type-A) *2,

    1*USB Type-C PD 65WMic in(3.5)*1



    AV Inputs at rear side:

    HDMI IN (2.0) *2,

    Touch USB (2.0 Type-B) *1,

    Display Port IN 1.2*1, VGA*1,

    VGA AUDIO IN(3.5)*1


    AV Outputs at rear side:

    Audio Line out *1, HDMI OUT（2.0）*1,

    S/PDIF Out*1


    Other ports at rear side:

    USB 2.0(Type A - Android) *1,

    USB 2.0(Type A -Public) *2, RJ45 in *1, out*1, RS232*1, OPS PC Slot*1,

    Wi-Fi module slot *1, Type-C(For camera, USB 2.0)
    Wi-Fi v6
    Bluetooth v5.2

    Audio & Microphone

    Speaker 2x20 Watts

    Battery And Power

    Voltage AC 100 - 240V 5.0A 50/60Hz
    Power Consumption ≤500W & Standby Mode <0.5W

    Special Features

    Backlight DLED
    Key Features Available in front hard button - To Enter into the customize source/function App store:

    Apk Pure - user can download education / corporate related applications (3rd Party application -install manually )
    Software Android 11

    Others

    Application Wireless casting application: 9 screens can connect simultaneously
    Other Features Wireless casting application: 9 screens can connect simultaneously

    Split Screen mode: Dual view

    Picture-in-Picture: Yes


    Classroom Share: Includes Vote , Responder, Selector , Message , Manager ,

    Export Built-in Applications: Aqua mail, Chromium, File Management ,

    White Board , Browser , Calculator, Clock , vote, Visualizer ,Memory cleaner,

    classroom tools, Eshare Pro, iMirror, Office Suite, Picture in Picture,

    Screen Recorder, Sign-in.


    Other features: The onboard system supports, Annotation,

    saving and send email of annotation files and selecting the inputs and changing the volume,

    Scheduling function for meeting room schedules, Build in WIFI (2.4G/5G), and so on.


    Email support: Pre-loaded Aqua mail - you can easily email your whiteboard content to anyone

    OTA Firmware Management: Remotely manage firmware and software updates with no user intervention

    Smart Eye production: Smart Eye Protect keep eye vision safe from IFPD's light

    Physical Specification

    Working Humidity 20~80%RH
    Storage humidity 0~90%RH
    Working temperature 0~40°C
    Storage Temperature -20~60°C

    Technical Info

    System System Safety

    Self-shutdown: Self-shutdown during abnormal temperature
    Life Time >50,000 hours
    Model TT-8622S

    Warranty Information

    Warranty 3 Years

    PRODUCT DESCRIPTION


    Newline S TT-8622S 86-inch 4K UHD Education/Meeting Room Interactive Flat Panel Display in Bangladesh

    Newline S TT-8622S is an advanced 86-inch 4K UHD interactive flat panel display, ideal for educational and professional settings. With exceptional image quality, a highly responsive touch interface, and a robust set of smart features, it enhances collaborative work and learning environments. The screen's anti-glare, anti-fingerprint tempered glass and zero bonding technology offer a smooth, engaging experience, while its innovative safety and eye protection features ensure comfortable, long-term use.


    Technical Details

    Newline S TT-8622S features a massive 86-inch 4K UHD display with a resolution of 3840 x 2160, delivering stunning clarity and vivid colors with 10-bit color depth. The display’s DLED backlighting and brightness of 500 cd/m², paired with a high contrast ratio of 15,000:1, ensure excellent image quality in various lighting conditions. The advanced IR touch sensor supports up to 20 simultaneous touchpoints and responds in just 4ms, providing seamless interactivity for multiple users. The touch surface is coated with anti-glare and anti-fingerprint tempered glass for durability and easy maintenance. With built-in dual 20W speakers, the audio experience is immersive and clear. The onboard Android 11 system comes equipped with 4GB DDR4 RAM and 32GB ROM (expandable up to 64GB), and it features a suite of built-in educational and business applications. The device supports wireless screen sharing for up to nine devices and has a dual-view split screen mode. It is also Bluetooth 5.2 enabled, features built-in Wi-Fi 6, and has multiple connectivity options including HDMI, USB, DisplayPort, and more. The display is designed with eye-protection technology, a blue light filter, and smart self-shutdown to ensure user safety and energy efficiency.


    Availability and Usability

    Newline S TT-8622S 86-inch 4K UHD Interactive Flat Panel Display is available at Tech Land BD, offering a versatile and powerful solution for classrooms, boardrooms, and collaborative workspaces. Its superior touch technology and high-quality display make presentations, lessons, and brainstorming sessions more dynamic and effective. Built-in features like wireless casting, annotation tools, and advanced connectivity options simplify content sharing and collaboration. This display's reliability and advanced safety measures make it a must-have for any institution or company seeking to upgrade their interactive setup. To check the Newline S TT-8622S Price in BD, head over to Tech Land BD and explore this transformative technology.


    Highlights

    • Stunning 86-inch 4K UHD display with 10-bit color depth
    • Zero bonding technology for ultra-responsive touch performance
    • Anti-glare and anti-fingerprint tempered glass for easy maintenance
    • Built-in Android 11 system with extensive educational and meeting tools
    • Supports nine-device wireless casting and dual-view split screen mode


    Upgrade Your Interactive Experience with Newline S TT-8622S from Tech Land BD

    Transform your classroom or meeting room with the Newline S TT-8622S 86-inch 4K UHD Interactive Flat Panel Display, available now at Tech Land BD. This feature-rich display combines brilliant visual performance, seamless touch functionality, and an intuitive onboard system to redefine interactivity. Perfect for educational institutions and professional teams, it offers everything you need for effective and engaging collaboration. With robust safety features, easy content sharing, and multiple connectivity options, this display is an investment in productivity and innovation. Don’t wait—check the Newline S TT-8622S Price in Bangladesh and order from Tech Land BD today for an unparalleled interactive experience!
