Product Information

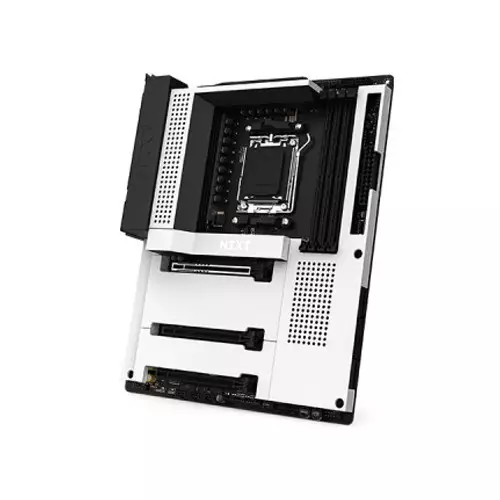

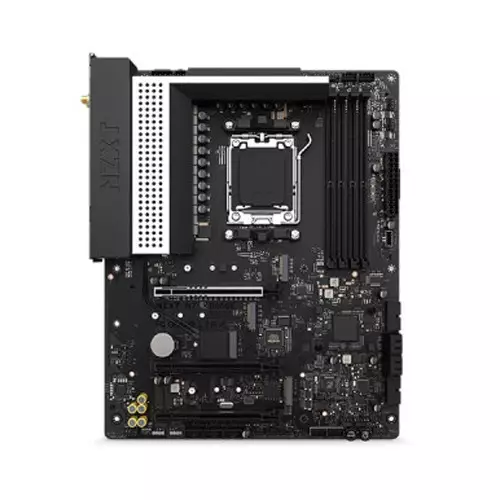

NZXT N7 B650E AM5 ATX AMD Gaming Motherboard - White
- Chipset AMD: B650E
- Max Memory Support: 128GB
- Form Factor: ATX
- 802.11ax Wi-Fi 6E Module
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Ryzen 9000, 8000, and 7000 Series Processors
Mainboard
Memory
Max Memory Support: 128GB
Memory Architecture: Dual-Channel
OC Frequency: DDR5 Non-ECC, Un-buffered
Memory up to 7200+ (OC). Please refer to
Memory QVL on NZXT’s website (www.nzxt.com) for more information.
Extreme Memory Profile (XMP): Supported
Extended Profiles for Overclocking (EXPO): Supported
Storage
M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): 1
SATA 6Gb/s ports: 4
RAID 0/1/10 for SATA storage devices: Supported
RAID 0/1/10 for M.2 NVMe storage devices: Supported
NVMe SSD as boot disks: Supported
Graphics
HDMI 2.1 TMD Compatible: 1
HDR: Supported
HDCP 2.3: max. resolution up to 4K 60Hz
Networking & Connectivity
Bluetooth: V5.2
Audio & Microphone
Ports
HDMI port: 1
USB 2.0:2
USB 3.2 Gen 2 Type-C port: 1
USB 3.2 Gen 2 ports: 2
USB 3.2 Gen 1 ports: 4
Clear CMOS button: 1
BIOS Flashback button: 1
LAN (RJ45) port: 1
Audio jacks: 5
Optical S/PDIF Out port: 1
8+4-pin ATX 12V power connector: 1
4-pin CPU_FAN connector: 1
4-pin AIO_PUMP connector: 1
4-pin SYS_FAN connectors: 5
NZXT RGB LED connectors: 4
5V ARGB LED connector: 2
USB 2.0 header (Up to 6 USB 2.0 ports): 3
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): 2
USB 3.2 Gen2x2 front panel header (For USB Type-C): 1
Front panel audio connector: 1
Power button: 1
Reset button: 1
POST LEDs: 4
Physical Specification
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3),
support ×2 mode: 2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT
PCIe Wi-Fi module: 1
Technical Info
Microsoft Windows® 11/10 operating system.
Warranty Information
PRODUCT DESCRIPTION
NZXT N7 B650E AM5 ATX AMD Gaming Motherboard - White in Bangladesh
NZXT N7 B650E AM5 ATX Gaming Motherboard is a premium choice for PC builders and gamers. Designed for AMD Ryzen 7000, 8000, and 9000 series processors, this stylish white motherboard delivers high performance, efficient cooling, and seamless compatibility with NZXT CAM software for an optimized gaming experience.
Technical Details
NZXT N7 B650E motherboard is built with the AMD B650E chipset and supports AMD AM5 Ryzen processors, ensuring exceptional performance. With DDR5 memory support of up to 128GB and speeds up to 7200+ MHz (OC), it guarantees superior multitasking and gaming capabilities. It features PCIe 5.0 and PCIe 4.0 expansion slots for next-gen GPUs and NVMe SSDs, along with support for RAID configurations. Integrated Wi-Fi 6E and Bluetooth 5.2 provide fast and reliable wireless connectivity. The motherboard's Realtek ALC1220 audio codec and extensive rear I/O, including multiple USB ports and HDMI 2.1, ensure robust multimedia functionality. Its minimalist design, coupled with customizable NZXT RGB LED connectors, makes it an aesthetic choice for gaming setups.
Availability and Usability
NZXT N7 B650E AM5 ATX Motherboard is available at Tech Land BD, a trusted source for gaming and PC components in Bangladesh. This motherboard is ideal for gamers and content creators who demand high performance and style. It offers excellent connectivity, advanced cooling solutions, and effortless integration with NZXT’s ecosystem. Its PCIe 5.0 support future-proofs your system for upcoming GPUs, while its Wi-Fi 6E ensures lag-free online gaming. For pricing details, check out NZXT N7 B650E Price in BD at Tech Land BD for competitive deals and availability.
