Product Information

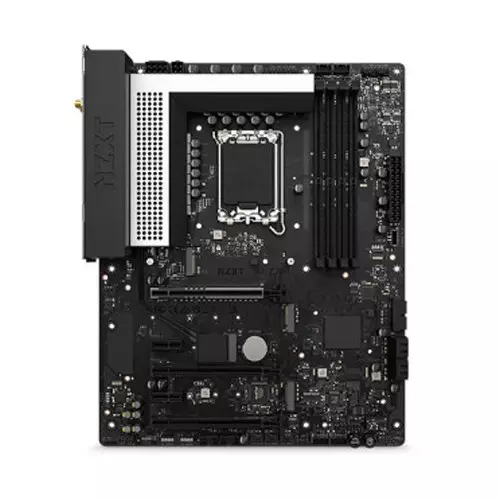

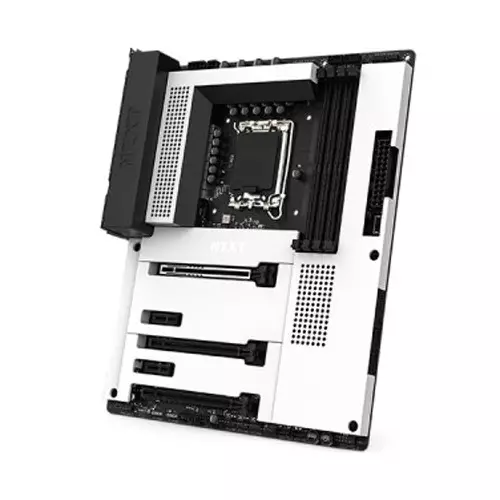

NZXT N7 Z790 LGA1700 ATX intel Gaming Motherboard - White
- Color: White
- Form Factor: ATX
- Chipset Intel Z790
- DIMM Slots: 4, DDR5
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Generation Core i9/ Core i7/ Core i5 Processors
Intel Core Processors. Please refer to the CPU support list.
Intel Hybrid Technology: Supported
Turbo Boost Max 3.0 Technology: Supported
Intel Thermal Velocity Boost (TVB): Supported
Intel Adaptive Boost Technology (ABT): Supported
Memory
Max Memory Support: 192GB, DDR5
Memory Architecture: Dual-Channel
OC Frequency: 7200+(O.C.). Please refer to memory QVL.
Intel Extreme Memory Profile (XMP) 3.0: Supported
Storage
M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode): 1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode): 1
SATA 6Gb/s ports: 4
Intel Volume Management Device (VMD): Supported
NVMe SSD as boot disks: Supported
Networking & Connectivity
Bluetooth: V5.3
Audio & Microphone
Ports
HDMI port: 1
USB 2.0: 2
USB 3.2 Gen 2x2 Type-C port: 1
USB 3.2 Gen 2 ports: 2
USB 3.2 Gen 1 ports: 3
Clear CMOS button: 1
LAN (RJ45) port: 1
Audio jacks: 5
Optical S/PDIF Out port: 1
8+4-pin ATX 12V power connector: 1
4-pin CPU_FAN connector: 1
4-pin AIO_PUMP connector: 1
4-pin SYS_FAN connectors: 5
NZXT RGB LED connectors: 4
5V ARGB LED connector: 2
USB 2.0 header (Up to 4 USB 2.0 ports): 2
USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports): 1
USB 3.2 Gen2x2 front panel header (For USB Type-C): 1
Front panel audio connector: 1
Power button: 1
Reset button: 1
POST LEDs: 4
Physical Specification
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), .
support ×4 mode: 2 (Supports NVMe SSD as boot disks).
PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*: 2 .
(Supports NVMe SSD as boot disks).
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT .
PCIe Wi-Fi module and Intel CNVio/CNVio2: 1.
Technical Info
Warranty Information
PRODUCT DESCRIPTION
NZXT N7 Z790 LGA1700 ATX Gaming Motherboard - White in Bangladesh
NZXT N7 Z790 ATX Motherboard is a high-performance, feature-rich motherboard designed for Intel’s latest 14th, 13th, and 12th Gen Core processors. With an elegant white finish, it’s the perfect foundation for a premium gaming or productivity PC build, combining functionality with aesthetic appeal.
Technical Details
The NZXT N7 Z790 Motherboard is powered by the Intel Z790 chipset, supporting Intel LGA1700 socket processors with Intel Hybrid Technology. It accommodates up to 192GB DDR5 RAM with overclocking speeds beyond 7200 MHz, offering exceptional performance for gaming and multitasking. With PCIe 5.0 and PCIe 4.0 expansion slots, it supports cutting-edge GPUs and NVMe SSDs, ensuring future-proofing. Storage options include 3 M.2 slots and 4 SATA ports, supporting RAID configurations. Equipped with Wi-Fi 6E, Bluetooth 5.3, and a 2.5G LAN port, it guarantees ultra-fast connectivity. Its Realtek ALC1220 audio codec delivers immersive sound, while an extensive rear I/O layout provides versatile connectivity options, including USB 3.2 Gen 2x2 Type-C and multiple USB 3.2 ports.
Availability and Usability
The NZXT N7 Z790 Motherboard is available at Tech Land BD, catering to PC enthusiasts and gamers in Bangladesh. It’s an ideal choice for building a powerful gaming rig or workstation, offering advanced features like robust overclocking, efficient cooling solutions, and compatibility with NZXT’s RGB ecosystem for stunning lighting effects. The NZXT N7 Z790 Price in BD makes it a competitive option for enthusiasts seeking both performance and style in their systems. Check Tech Land BD for current pricing and availability.
