Product Information
Save: ৳3,500

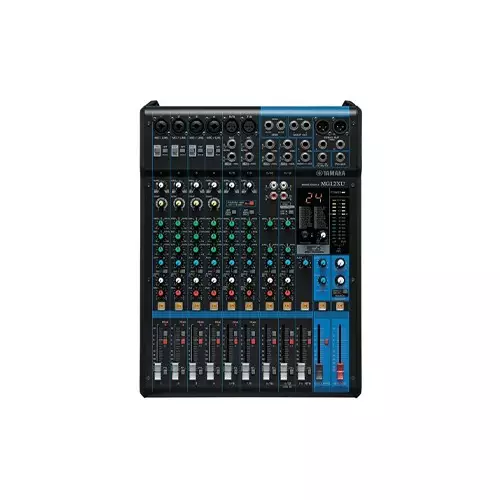

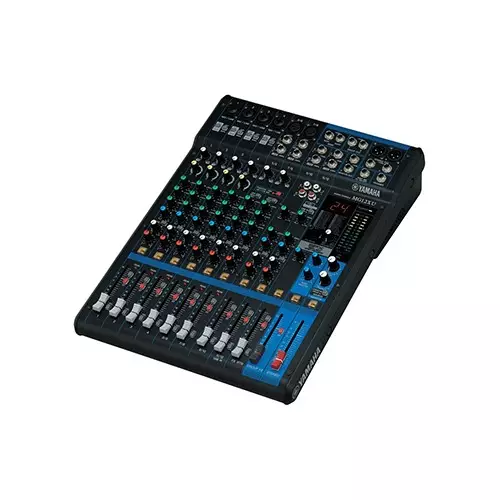

Yamaha MG12XU 12-channel Mixer with USB and Effects
Product Pricing
EMI Start From*
৳2,042
PRODUCT SPECIFICATIONS
Audio & Microphone
Audio Input
4x mono [mic/line]
2x mono/stereo [mic/line]
2x stereo [line]
2x mono/stereo [mic/line]
2x stereo [line]
Noise Ratio
Equivalent Input Noise: -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)
Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: min)
Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: min)
Audio Output
2x stereo out
1x monitor out
1x headphone out
2x aux out
2x group out
1x monitor out
1x headphone out
2x aux out
2x group out
Channel
12-Channel Mixing Console
Battery And Power
Power Requirement
AC 100 - 240 V, 50 / 60 Hz
Power Consumption
22 W
Power
+48 V switchable, channels 1 - 4
Ports
I/O Port
Digital I/O
USB: USB Audio Class 2.0 compliant
Sampling frequency: max 192 kHz
Bit depth: 24-bit
USB: USB Audio Class 2.0 compliant
Sampling frequency: max 192 kHz
Bit depth: 24-bit
Others
Other Features
Built-in Effects
SPX algorithm: 24 programs,
PARAMETER control:1,
FOOT SW:1 (FX RTN CH on/off)
Bus
Stereo: 1
AUX: 2
GROUP: 2
Pad: 26 dB (mono)
HPF: 80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor
Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
Equalizer
EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Level Metering: 2 x 12-segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Crosstalk: -78 dB
SPX algorithm: 24 programs,
PARAMETER control:1,
FOOT SW:1 (FX RTN CH on/off)
Bus
Stereo: 1
AUX: 2
GROUP: 2
Pad: 26 dB (mono)
HPF: 80 Hz, 12 dB/oct (mono/stereo: MIC only)
Compressor
Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output level: 0 dB to 7 dB
Attack time: approx. 25 msec
Release time: approx. 300 msec
Equalizer
EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Level Metering: 2 x 12-segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Crosstalk: -78 dB
Physical Specification
Color
Black
Dimension
308 x 118 x 422 mm
Weight
4.2 kg
Technical Info
LED Indicators
Peak LED turns on when post EQ signal reaches 3 dB below clipping
Distortion
Total Harmonic Distortion
0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min
Brand
Yamaha
Model
MG12XU
PRODUCT DESCRIPTION
Yamaha MG12XU 12-channel Mixer with USB and Effects in Bangladesh
Yamaha MG12XU 12-Channel Mixer with USB and Effects is a high-performance audio mixing console designed for musicians, sound engineers, and live event professionals in Bangladesh. This compact yet powerful mixer features 12 inputs—accommodating up to 6 microphones and 12 line sources—making it ideal for live sound, studio work, or streaming setups. Equipped with Yamaha’s renowned “D-PRE” mic preamps using an inverted Darlington circuit, the MG12XU delivers warm, natural sound with exceptional clarity. Onboard 1-knob compressors simplify dynamic control, while SPX digital effects with 24 presets (reverb, delay, chorus, etc.) add professional polish to any mix. The mixer offers 24-bit/192kHz 2-in/2-out USB audio interface functionality and is compatible with iPads (with adapter) for modern recording flexibility. Additional features include +48V phantom power, PAD switches, balanced XLR outputs, and a rugged metal chassis for durability. With Cubase AI DAW software included, the Yamaha MG12XU is a versatile mixing solution ideal for Bangladesh’s musicians, content creators, and sound technicians.
Buy the Best Yamaha MG12XU Model in Bangladesh from Tech Land BD
Buy the Yamaha MG12XU 12-Channel Mixer from Tech Land BD, your trusted destination for premium sound equipment in Bangladesh. Perfect for live performances, studio production, or streaming, this mixer offers high-end features like SPX digital effects, USB audio interface, and professional-grade mic preamps. Tech Land BD ensures authentic Yamaha products with expert guidance, competitive pricing, and fast delivery across the country. Whether you're setting up a studio or managing live sound, the MG12XU from Tech Land BD guarantees exceptional audio quality and dependable performance.
FAQ:
Can I use the Yamaha MG12XU with my computer for recording?
Yes, it includes a 24-bit/192kHz USB audio interface, perfect for 2-in/2-out recording and playback with your computer.
Does the Yamaha MG12XU support condenser microphones?
Absolutely. It provides +48V phantom power on mic inputs to support condenser mics.
Is the MG12XU suitable for live sound and studio use?
Yes, its durable design, built-in effects, and flexible input/output options make it ideal for both live and studio applications.
CUSTOMER REVIEWS
Overall Rating
0
Total Reviews
Login to write a review.
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0
No reviews yet
Be the first to share your thoughts about this product.
What is the Yamaha MG12XU 12-channel Mixer with USB and Effects Price in Bangladesh 2026 ?
The Yamaha MG12XU Price in BD is 58,000৳ . This Yamaha MG12XU 12-channel Mixer with USB and Effects Manufacturing by Yamaha Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you Yamaha MG12XU by 58,000৳ and its regular price is 61,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
