Product Information

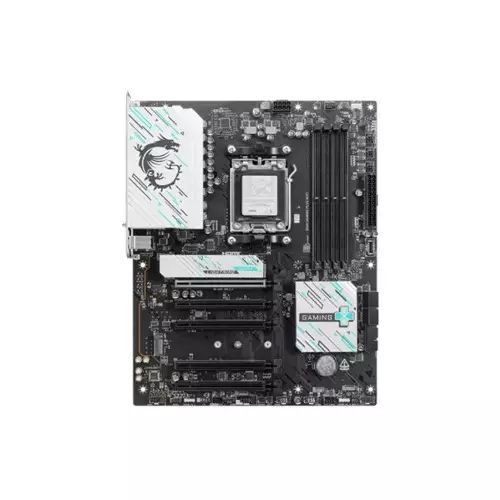

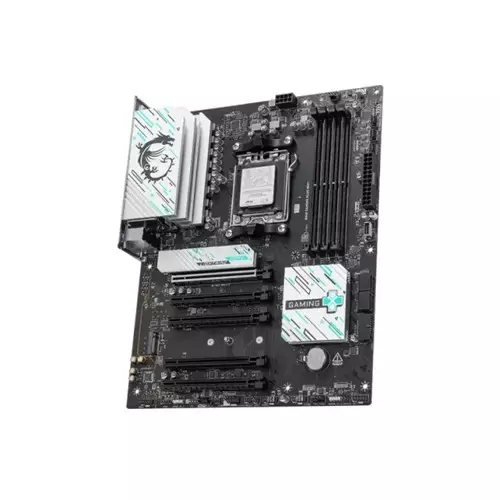

MSI B840 GAMING PLUS WIFI AM5 ATX AMD Motherboard
- Socket AM5
- Chipset AMD B840
- Form Factor ATX
- Memory Type DDR5
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Socket AM5
Memory
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0
x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0
x4 , supports 22110/2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Networking & Connectivity
The Wireless module is pre-installed in the M.2
(Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*
(320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
Audio & Microphone
7.1-Channel High Definition Audio
Ports
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
Physical Specification
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
243.84mmx304.8mm
Warranty Information
PRODUCT DESCRIPTION
MSI B840 GAMING PLUS WIFI AM5 ATX AMD Motherboard in Bangladesh
MSI B840 GAMING PLUS WIFI AM5 ATX AMD Motherboard is a premium gaming motherboard designed for enthusiasts and professionals in Bangladesh. Its advanced features, such as support for AMD Ryzen 9000 series processors, DDR5 memory, and Wi-Fi 7, make it an excellent choice for building high-performance gaming rigs or workstations.
Technical Details
The MSI B840 GAMING PLUS WIFI motherboard boasts an AM5 socket, ensuring compatibility with the latest AMD Ryzen 9000, 8000, and 7000 series processors. Its DDR5 memory slots support up to 256GB RAM, offering unparalleled speed and multitasking capabilities. The board features two M.2 slots with PCIe 4.0 for ultra-fast SSDs, along with 4 SATA ports for additional storage options. With Wi-Fi 7, Bluetooth 5.4, and Realtek 8125BG 2.5G LAN, it provides exceptional connectivity. The motherboard's 7.1-Channel High Definition Audio enhances sound quality, while customizable RGB lighting adds aesthetic appeal. Its ATX form factor is ideal for spacious builds.
Availability and Usability
The MSI B840 GAMING PLUS WIFI AM5 ATX AMD Motherboard is available at Tech Land BD, ensuring you can purchase it conveniently in Bangladesh. This motherboard offers excellent usability for gamers, content creators, and PC enthusiasts with its advanced compatibility with Ryzen processors, high-speed memory, and future-ready connectivity features. If you are looking for the MSI B840 GAMING PLUS WIFI Price in BD, Tech Land BD provides competitive pricing for this high-performance motherboard, making it a valuable addition to your setup.
Highlights
- Supports AMD Ryzen 9000/8000/7000 series processors with AM5 socket.
- Dual M.2 slots with PCIe 4.0 for lightning-fast storage.
- Wi-Fi 7 and Bluetooth 5.4 for seamless connectivity.
- 7.1-Channel High Definition Audio for immersive sound quality.
- Customizable RGB lighting to match your gaming rig.
Get the Best Price for MSI B840 GAMING PLUS WIFI at Tech Land BD
Don’t miss your chance to own the powerful MSI B840 GAMING PLUS WIFI AM5 ATX AMD Motherboard at Tech Land BD. With its cutting-edge performance, robust build, and advanced features, it’s the perfect choice for gamers and professionals. Grab it now at the best MSI B840 GAMING PLUS WIFI Price in Bangladesh and elevate your gaming or work experience to the next level. Hurry, stocks are limited!
