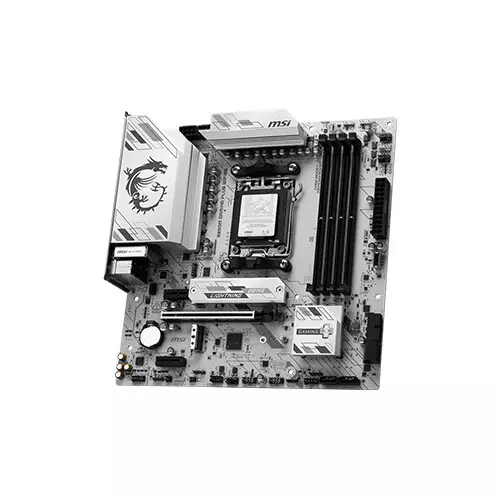

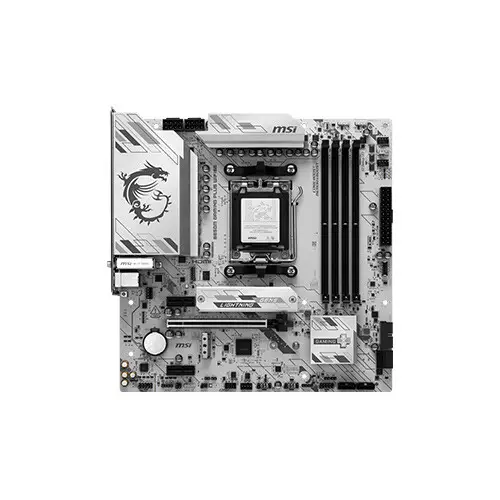

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard - 1 MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard - 2 MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard - 3
Discount Tag

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard

0 Reviews
Stock : In Stock
PID : P0332508006
Brand : MSI
Model : B850M GAMING PLUS WIFI6E
Warranty : 3 Years
  • Memory size - 256GB
  • Memory type - DDR5
  • Chipset - AMD B850
  • BIOS - Flash BIOS Button

Product Pricing

Discount Price

৳23,100 ৳26,000
+ Available Payment Method

EMI Start From*

৳813

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Supports AMD Ryzen 9000/ 8000/
7000 Series Desktop Processors

Socket AM5
Chipset

AMD B850

Mainboard

BIOS

Flash BIOS Button

Memory

Memory

Type

DDR5

Slots

4 x UDIMM

Supported Memory

Memory Support DDR5 8200 - 5600
(OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max.
overclocking frequency:

1DPC 1R Max speed up to 8200+ MT/s

1DPC 2R Max speed up to 6400+ MT/s

2DPC 1R Max speed up to 6400+ MT/s

2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only

Maximum Memory

256GB

Storage

Raid

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage

2x M.2

M.2_1 Source (From CPU)
supports up to PCIe 5.0 x4 ,
supports 2280/2260 devices

M.2_2 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

4x SATA 6G

M2_1 slot

Supports up to PCIe 5.0 x4
(For Ryzen 9000/ 7000 Series processors)

Supports up to PCIe 4.0 x4
(For Ryzen 8000 Series processors)

M2_2 slot

Supports up to PCIe 4.0 x4
(For Ryzen 9000/ 8700/ 8600/
8400/ 7000 Series processors)

Supports up to PCIe 4.0 x2
(For Ryzen 8500/ 8300 Series processors)

Graphics

Graphics

Graphics

1x HDMI

Support HDMI 2.1,
maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4,
maximum resolution of 4K 60Hz

Networking & Connectivity

LAN

Realtek 8125D 2.5G LAN
WiFi

Wi-Fi 6E Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth

Supports Bluetooth 5.3, FIPS, FISMA

Audio & Microphone

Audio

Realtek ALC897

7.1-Channel High Definition Audio

Ports

Slots

Expansion Slots

PCI

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0
supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 4.0
supports up to x16 (From CPU)

PCI_E3 Gen PCIe 3.0
supports up to x1 (From Chipset)

PCI_E2 slot

Supports PCIe 4.0 x16 (For Ryzen
9000/ 7000 Series processors)

Supports PCIe 4.0 x8 (For Ryzen
8700/ 8600/ 8400 Series processors)

Supports PCIe 4.0 x4 (For Ryzen
8500/ 8300 Series processor)

M.2 Socket

2x M.2

M.2_1 Source (From CPU)
supports up to PCIe 5.0 x4 ,
supports 2280/2260 devices

M.2_2 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

4x SATA 6G

M2_1 slot

Supports up to PCIe 5.0 x4 (For Ryzen
9000/ 7000 Series processors)

Supports up to PCIe 4.0 x4 (For Ryzen
8000 Series processors)

M2_2 slot

Supports up to PCIe 4.0 x4 (For Ryzen
9000/ 8700/ 8600/ 8400/ 7000 Series processors)

Supports up to PCIe 4.0 x2 (For Ryzen
8500/ 8300 Series processors)
Internal I/O Ports

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

3x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)
External I/O Ports

Clear CMOS Button

DisplayPort 1.4

2.5G LAN

USB 10Gbps (Type-A)

Wi-Fi / Bluetooth

HD Audio Connectors

Flash BIOS Button

HDMI™

USB 10Gbps (Type-A)

USB 10Gbps (Type-C)

USB 5Gbps (Type-A)
USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)
HDMI

1x HDMI 2.1

Software

Operating System

Support for Windows 11 64-bit

Special Features

Special Features

4x EZ Debug LED

1x EZ Memory Detection LED

Physical Specification

Form Factor

mATX

243.84mmx243.84mm

Technical Info

OS

Support for Windows 11 64-bit

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

MSI B850M GAMING PLUS WIFI6E Motherboard in Bangladesh

MSI B850M GAMING PLUS WIFI6E mATX Motherboard, available at Tech Land BD in Bangladesh, is a gaming-oriented powerhouse built on the AMD B850 chipset, designed to support AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket. This Micro-ATX board supports up to 256GB of DDR5 memory across four UDIMM slots, with overclocking speeds reaching 8200+ MT/s (1DPC 1R) and AMD EXPO™ support for optimized performance. It features a PCIe 4.0 x16 slot (with Steel Armor) for high-end graphics cards and two PCIe 3.0 x1 slots, catering to diverse expansion needs. Storage options include two M.2 slots—one supporting PCIe 5.0 x4 (128Gbps) for Ryzen 9000/7000 and another PCIe 4.0 x4—alongside four SATA 6G ports, with RAID 0, 1, and 10 support for SATA and RAID 0/1 for M.2 NVMe. The motherboard ensures robust connectivity with Wi-Fi 6E (up to 2.4Gbps, 6GHz support) and Bluetooth 5.3, paired with a Realtek 2.5G LAN for lag-free gaming. It offers versatile USB options, including USB 10Gbps Type-C and Type-A ports, and supports 4K 60Hz displays via HDMI 2.1 and DisplayPort 1.4 (on CPUs with integrated graphics). Audio is powered by Realtek ALC897 for 7.1-channel HD sound. Cooling is enhanced with extended heatsinks, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr, complemented by multiple fan headers. The board’s DIY-friendly features, like EZ M.2 Clip II and EZ Antenna, simplify assembly. With ARGB lighting and MSI Mystic Light compatibility, it adds aesthetic flair. Purchase the MSI B850M GAMING PLUS WIFI6E from Tech Land BD for a high-performance, future-proof gaming platform in Bangladesh.

Which CPUs are compatible?

Supports AMD Ryzen 7000/8000 series (AM5 socket) with DDR5 memory.


Does it have WiFi 6E and Bluetooth?

Yes, includes WiFi 6E (6GHz band) + Bluetooth 5.3 with an external antenna.

What’s the LAN speed?

Features a 2.5G Ethernet port (Realtek RTL8125BG) for fast wired networking
