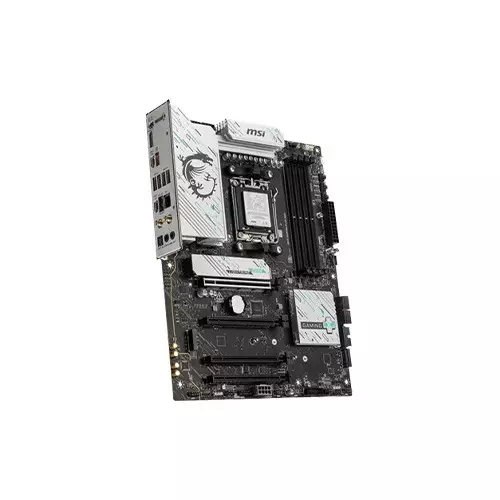

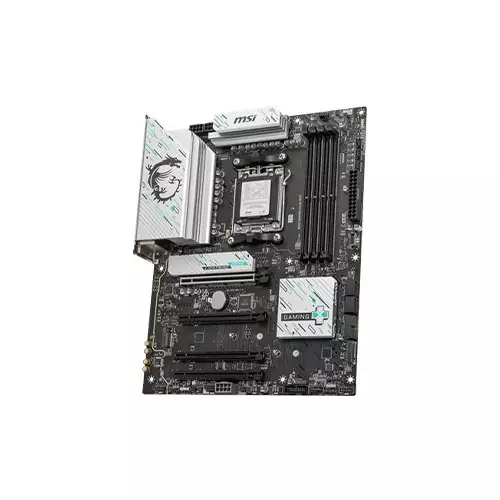

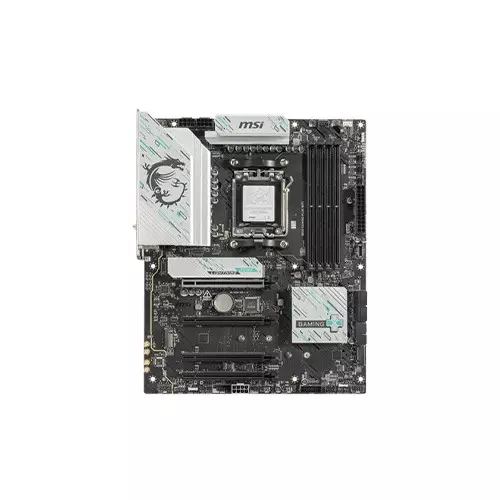

MSi B850 GAMING PLUS WIFI AMD B850 DDR5 ATX Motherboard
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Socket AM5
Mainboard
Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
Graphics
Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
Audio & Microphone
7.1-Channel High Definition Audio
Ports
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth,
PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
Software
Others
Physical Specification
243.84mmx304.8mm
Technical Info
Warranty Information
PRODUCT DESCRIPTION
MSI B850 GAMING PLUS WIFI Motherboard Price in Bangladesh
MSI B850 GAMING PLUS WIFI is a high-performance ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors with Socket AM5. Powered by the AMD B850 chipset, it supports DDR5 memory up to 256GB, ensuring exceptional speed and multitasking capabilities. For expansion, the board includes four PCI-E x16 slots, with PCI-E 5.0 support for Ryzen 9000/7000 processors, making it ideal for gaming and high-end computing. Storage is future-proof with three M.2 slots, including PCIe 5.0 x4 support for ultra-fast NVMe SSDs. Connectivity is top-notch with Wi-Fi 7, Bluetooth 5.4, and Realtek 8126VB 5G LAN, providing blazing-fast networking speeds. The motherboard also features multiple USB ports, including USB 10Gbps Type-C, for seamless peripheral connections. With 7.1-channel Realtek ALC897 HD audio, RGB lighting support, and an EZ Debug LED system, the MSI B850 GAMING PLUS WIFI is a powerhouse for gaming, content creation, and workstation setups. Get it now at Tech Land BD and enjoy a 3-year warranty!
Which processors are compatible with the MSI B850 GAMING PLUS WIFI?
It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket.
Does this motherboard support DDR4 RAM?
No, it only supports DDR5 memory with speeds up to 8200+ MT/s (OC).
How many M.2 slots does this motherboard have?
It has three M.2 slots, including PCIe 5.0 x4 support for high-speed NVMe SSDs.
