MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS

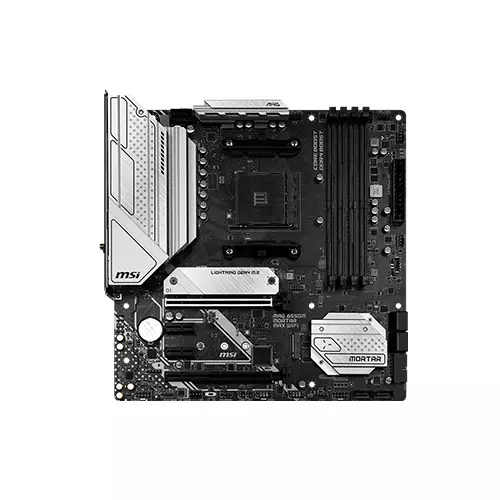

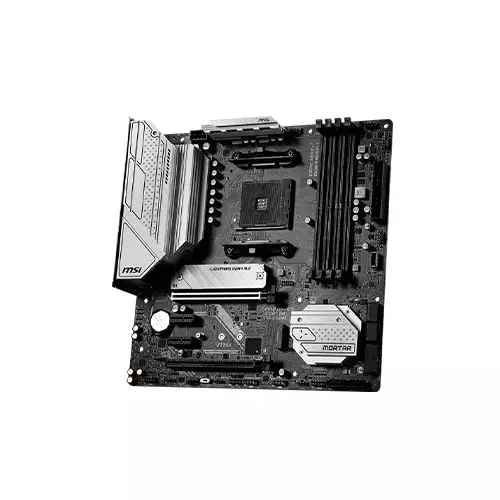

MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS - 1 MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS - 2 MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS - 3
Discount Tag

MSI MAG B550M MORTAR MAX WIFI AMD MICRO-ATX MOTHERBOARDS

0 Reviews
Stock : Out of Stock
PID : P0402506160
Brand : MSI
Model : MAG B550M MORTAR MAX WIFI
Warranty : 3 Years
  • Supported CPU: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors S...
  • Chipset: AMD B550 Chipset
  • Memory: 4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933...
  • Supported Storage: AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) S...

Product Pricing

Discount Price

৳22,000 ৳23,300
+ Available Payment Method

EMI Start From*

৳775

PRODUCT SPECIFICATIONS

Processor

Supported CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors

Support Socket AM4

Mainboard

Chipset AMD B550 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP
OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Storage

Supported Storage AMD B550 Chipset


6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

Graphics

Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

Support HDCP 1.4 & 2.3

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Maximum shared memory of 16 GB

Networking & Connectivity

LAN 1x Realtek RTL8125B 2.5Gbps LAN controller
WiFi AMD® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2
Bluetooth AMD Wi-Fi 6E

Audio & Microphone

Audio Realtek ALC1220P Codec

Ports

Internal I/O Ports 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

3x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1xTPM module connector

1x Clear CMOS jumper
External I/O Ports DisplayPort 1.4

PS/2 Combo Port

2.5G LAN Port

USB 3.2 Gen 2 10Gbps Type-A

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

Flash BIOS Button

USB 2.0 Port

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-C

Optical S/PDIF OUT
USB AMD B550 Chipset


3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor


2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Physical Specification

Form Factor Micro-ATX Form Factor
Dimension 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Warranty Information

Warranty 3 years

PRODUCT DESCRIPTION

MSI MAG B550M MORTAR WIFI MATX motherboard in Bangladesh

The MSI MAG B550M MORTAR WIFI MATX motherboard is here to support the very latest amd processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. With years of experience, MSI is no stranger to building high-performance motherboards. MSI, R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed.
