Product Information

Save: ৳3,600

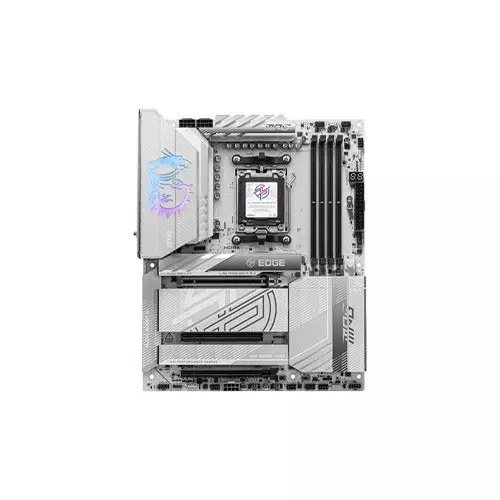

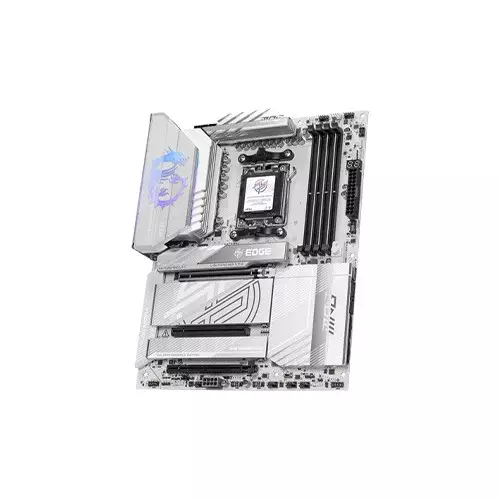

MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 1 MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 2 MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 3 MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 4

MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0402506481
Brand : MSI
Model : MPG X870E EDGE TI WIFI
Warranty : 3-Years
  • Form Factor - ATX / 243.84mmx304.8mm
  • Chipset - AMD X870E
  • CPU - Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  • OPERATING SYSTEM - Support for Windows 11 64-bit

    • 🎧 FREE HS35 V2 HEADSET WITH PC BUILD

    Product Pricing

    Night Offer Price 00:00:00

    ৳50,900 ৳54,500
    + Available Payment Method

    EMI Start From*

    ৳1,792

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000

    Series Desktop Processors Socket AM5

    Mainboard

    Chipset AMD X870E

    Memory

    Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

    Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

    Ryzen 9000 Series Processors max. overclocking frequency:

    • 1DPC 1R Max speed up to 8400+ MT/s

    • 1DPC 2R Max speed up to 6400+ MT/s

    • 2DPC 1R Max speed up to 6400+ MT/s

    • 2DPC 2R Max speed up to 4800+ MT/s



    Supports AMD POR Speed and JEDEC Speed

    Supports Memory Overclocking and AMD EXPOTM

    Supports Dual-Channel mode

    Supports Non-ECC, Un-buffered memory

    Supports CUDIMM, Clock Driver bypass mode only*

    Storage

    Storage 4x M.2

    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

    4x SATA 6G



    M.2_1 slot

    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

    • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)



    M.2_2 slot

    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

    • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)



    * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.

    * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4
    bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You
    can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
    The USB4 host controller supports up to PCIe 4.0 x4.

    Graphics

    Graphics 1x HDMI

    Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

    2x Type-C DisplayPort

    USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,

    maximum resolution of 4K@60Hz*

    Networking & Connectivity

    LAN 1x Realtek 8126 5G LAN
    Bluetooth Wi-Fi 7

    The Wireless module is pre-installed in the M.2 (Key-E) slot

    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be



    Supports Bluetooth 5.4**, MLO, 4KQAM



    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

    Bluetooth 5.4 will be ready in Windows 11 version 24H2.

    Audio & Microphone

    Audio Realtek ALC4080 Codec

    7.1-Channel USB High-Performance Audio

    Supports up to 32-Bit/384 kHz playback on front panel

    Supports S/PDIF output

    Ports

    Slots 3x PCI-E x16 slot

    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



    PCI_E1 slot

    • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

    • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

    • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
    Internal I/O Ports 1x Power Connector(ATX_PWR)

    2x Power Connector(CPU_PWR)

    1x Power Connector(PCIE_PWR 8pin)

    1x CPU Fan

    1x Combo Fan (Pump_Sys Fan)

    6x System Fan

    1x EZ Conn-header (JAF_2)

    2x Front Panel (JFP)

    1x Chassis Intrusion (JCI)

    1x Front Audio (JAUD)

    3x Addressable V2 RGB LED connector (JARGB_V2)

    1x RGB LED connector(JRGB)

    1x TPM pin header(Support TPM 2.0)

    4x USB 2.0 ports

    4x USB 5Gbps Type A ports

    1x USB 20Gbps Type C ports
    External I/O Ports Clear CMOS Button

    USB 10Gbps Type-A

    USB 2.0

    5G LAN

    Wi-Fi / Bluetooth

    Audio Connectors

    Flash BIOS Button

    HDMI

    USB 40Gbps Type-C

    USB 10Gbps Type-A

    USB 10Gbps Type-C

    Optical S/PDIF Out
    USB 4x USB 2.0 (Rear)

    4x USB 2.0 (Front)

    4x USB 5Gbps Type A (Front)

    5x USB 10Gbps Type A (Rear)

    1x USB 10Gbps Type C (Rear)

    1x USB 20Gbps Type C (Front)

    2x USB 40Gbps Type C (Rear)

    Software

    Operating System Support for Windows 11 64-bit

    Others

    Other Features RAID - Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices

    Physical Specification

    Color Black
    Form Factor ATX

    243.84mmx304.8mm

    Technical Info

    LED Type 4x EZ Debug LED

    1x EZ Digi-Debug LED
    Brand MSi
    Model MPG X870E EDGE TI WIFI

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    MSI MPG X870E EDGE TI WIFI Motherboard Price in Bangladesh

    MSI MPG X870E EDGE TI WIFI is a high-end ATX motherboard featuring the AMD X870E chipset, designed for AMD Ryzen 9000, 8000, and 7000 Series processors with AM5 socket. It delivers cutting-edge performance with DDR5 memory support up to 256GB, achieving speeds up to 8400+ MT/s (OC). Equipped with PCIe 5.0 x16 support, this motherboard is perfect for high-performance GPUs, ensuring seamless gaming, streaming, and content creation. Storage options include four M.2 slots, with dual PCIe 5.0 x4 support, making it future-proof for ultra-fast SSDs. Networking is top-tier with Realtek 5G LAN and Wi-Fi 7, ensuring high-speed internet connectivity. The USB4 (40Gbps) ports, HDMI 2.1 (8K@60Hz), and USB 20Gbps Type-C offer next-gen connectivity for peripherals and high-resolution displays. Featuring Realtek ALC4080 7.1-Channel HD Audio, customizable RGB lighting, and EZ Debug LEDs, the MSI MPG X870E EDGE TI WIFI is a premium choice for gamers, content creators, and PC enthusiasts. Available now at Tech Land BD with a 3-year warranty!


    Which processors are supported by the MSI MPG X870E EDGE TI WIFI?

    It supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket.

    Does this motherboard support DDR4 RAM?

    No, it exclusively supports DDR5 memory with speeds up to 8400+ MT/s (OC).

    How many M.2 slots are available?

    It has four M.2 slots, including two PCIe 5.0 x4 slots for ultra-fast NVMe SSDs.

    CUSTOMER REVIEWS

    Overall Rating

    0 out of 5 stars
    0
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    0
    3 star
    0
    2 star
    0
    1 star
    0

    No reviews yet

    Be the first to share your thoughts about this product.

    What is the MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard Price in Bangladesh 2026 ?

    The MSI MPG X870E EDGE TI WIFI Price in BD is 52,000৳ . This MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard Manufacturing by MSI Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MPG X870E EDGE TI WIFI by 52,000৳ and its regular price is 54,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
