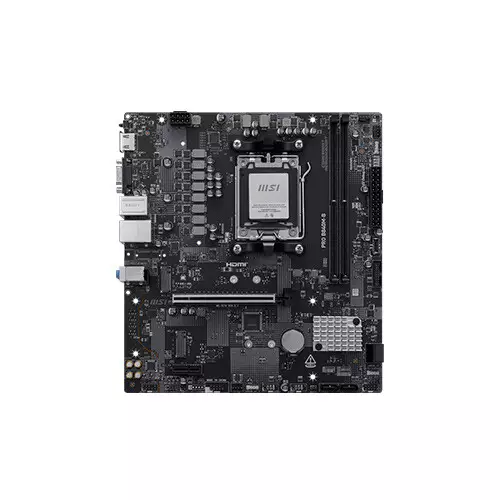

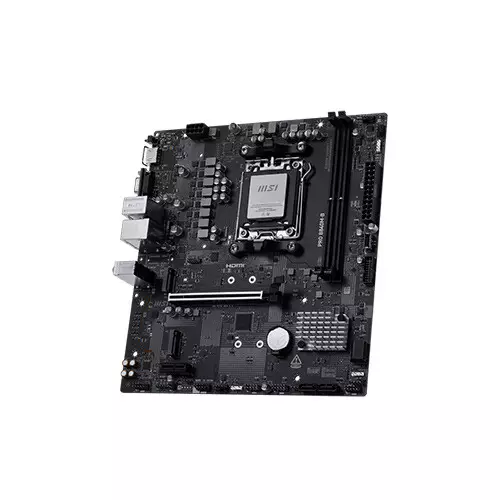

MSI PRO B840M-B AM5 AMD mATX Motherboard
MSI PRO B840M-B AM5 AMD mATX Motherboard MSI PRO B840M-B AM5 AMD mATX Motherboard - 1 MSI PRO B840M-B AM5 AMD mATX Motherboard - 2 MSI PRO B840M-B AM5 AMD mATX Motherboard - 3
Discount Tag

MSI PRO B840M-B AM5 AMD mATX Motherboard

0 Reviews
Stock : In Stock
PID : P0332510010
Brand : MSI
Model : PRO B840M-B
Warranty : 3 Years

Memory size - 128GB
Memory type - DDR5
Chipset - AMD B840
Form Factor - mATX

Product Pricing

Night Offer Price 00:00:00

৳14,900 ৳15,700
+ Available Payment Method

EMI Start From*

৳525

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Supports AMD Ryzen 9000/ 8000/ 7000
Series Desktop Processors

Socket AM5
Chipset

AMD B840

Memory

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max.
overclocking frequency:

• 1DPC 1R Max speed up to 8000+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s


Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

Storage

Raid

Supports RAID 0, RAID 1 and
RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1
for M.2 NVMe storage devices
Supported Storage

2x M.2

M.2_1 Source (From CPU) supports up to
PCIe 4.0 x4, supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to
PCIe 4.0 x4, supports 2280/2260 devices

4x SATA 6G


M2_2 slot

• Supports up to PCIe 4.0 x4

• Supports up to PCIe 4.0 x2
(For Ryzen 8500/ 8300 Series processors)

Graphics

Graphics

1x HDMI

Support HDMITM 2.1,
maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution
of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*

Networking & Connectivity

LAN

Realtek 8125D 2.5G LAN

Audio & Microphone

Audio

Realtek ALC897

7.1-Channel High Definition Audio

Ports

Slots

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0
supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0
supports up to x1 (From Chipset)


PCI_E1 slot

• Supports PCIe 4.0 x16
(For Ryzen 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8
(For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4
(For Ryzen 8500/ 8300 Series processors)
Internal I/O Ports

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

3x Addressable V2 RGB LED
connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports
External I/O Ports

Clear CMOS Button

HDMI

VGA

USB 5Gbps Type-A

2.5G LAN

Audio connectors

Flash BIOS Button

USB 2.0
USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

Software

Operating System

Support for Windows 11 64-bit

Physical Specification

Form Factor

mATX

226mmx243.84mm

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

MSI PRO B840M-B AM5 AMD mATX Motherboard in Bangladesh

MSI PRO B840M-B AM5 AMD mATX Motherboard is a powerful and feature-packed mainboard designed to deliver outstanding performance, stability, and flexibility for modern AMD Ryzen systems. It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket, ensuring compatibility with the latest generation of CPUs. Built on the AMD B840 chipset, this motherboard provides a solid foundation for high-speed computing, gaming, and content creation. It supports dual-channel DDR5 memory up to 128GB and speeds of 8000+ MHz (OC), offering lightning-fast performance and efficiency. For storage, it includes 2x M.2 PCIe 4.0 slots and 4x SATA 6Gb/s ports, supporting both RAID 0, 1, and 10 configurations for enhanced speed and data protection. The Realtek 8125D 2.5G LAN ensures ultra-fast network connectivity, while the Realtek ALC897 7.1-channel audio codec delivers crystal-clear sound quality for immersive entertainment. The motherboard also includes a variety of expansion options, such as 1x PCIe 4.0 x16 slot and 1x PCIe 3.0 x1 slot, allowing for graphics card and peripheral upgrades. With multiple RGB headers and fan connectors, users can customize their setup for optimized cooling and style. The rear I/O includes HDMI 2.1, VGA, multiple USB 5Gbps Type-A and Type-C ports, and a Flash BIOS button for easy firmware updates. Compact in mATX form factor (226mm x 243.84mm), the MSI PRO B840M-B is ideal for efficient builds. Get it now at the best price in Bangladesh from Tech Land BD, your trusted tech retailer.

Which processors are supported by the MSI PRO B840M-B motherboard?

It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with socket AM5.

What type and capacity of memory does this motherboard support?

It supports up to 128GB of DDR5 memory with speeds up to 8000+ MHz (OC).

How many storage options does it offer?

The board includes 2x M.2 PCIe 4.0 slots and 4x SATA 6Gb/s ports with RAID support.
