GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

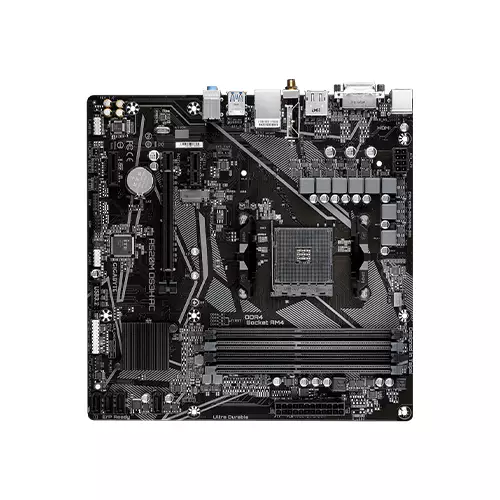

GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard - 1 GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard - 2
Discount Tag

GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506249
Brand : Gigabyte
Model : A520M DS3H AC
Warranty : 3 years
  • Chipset AMD A520
  • Realtek GbE LAN chip
  • 1 x PCI Express x16 slot
  • iTE I/O Controller Chip

    • Product Pricing

    Discount Price

    ৳10,800 ৳12,500
    + Available Payment Method

    EMI Start From*

    ৳380

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

    Mainboard

    Chipset AMD A520
    BIOS 1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:

    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
    3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 /
    2133 MHz memory modules

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

    4 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, and RAID 10

    Graphics

    Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors

    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

    * The DVI-D port does not support D-Sub connection by adapter.

    1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)
    WiFi WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    Bluetooth BLUETOOTH 4.2

    Audio & Microphone

    Audio Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    Slots CPU:

    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

    Chipset:

    2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    2 x system fan headers

    1 x addressable LED strip header

    1 x RGB LED strip header

    1 x M.2 Socket 3 connector

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    1 x USB 2.0/1.1 header

    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    1 x serial port header

    1 x Clear CMOS jumper

    1 x Q-Flash Plus button
    External I/O Ports 1 x PS/2 keyboard/mouse port

    1 x DVI-D port

    1 x DisplayPort

    1 x HDMI port

    2 x SMA antenna connectors (1T1R)

    4 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    USB 4 x USB 3.2 Gen 1 ports on the back panel

    2 x USB 3.2 Gen 1 ports available through the internal USB header

    4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB

    Physical Specification

    Form Factor Micro ATX Form Factor
    Dimension 24.4cm x 24.4cm

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    GIGABYTE A520M DS3H AC Motherboard in Bangladesh

    Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M. 2 Connector Onboard Intel Dual Band 802.11 ac Wireless & BT 4.2 with WIFI Antenna GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, Display Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
