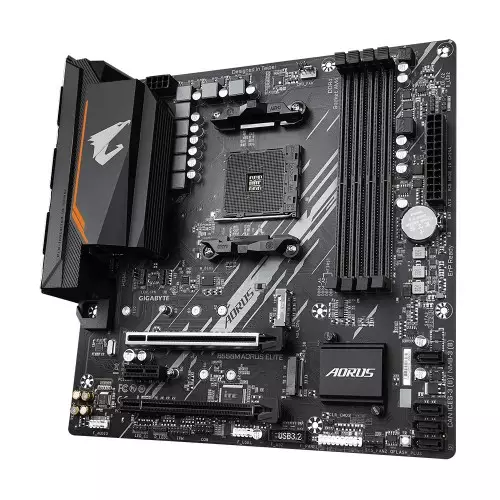

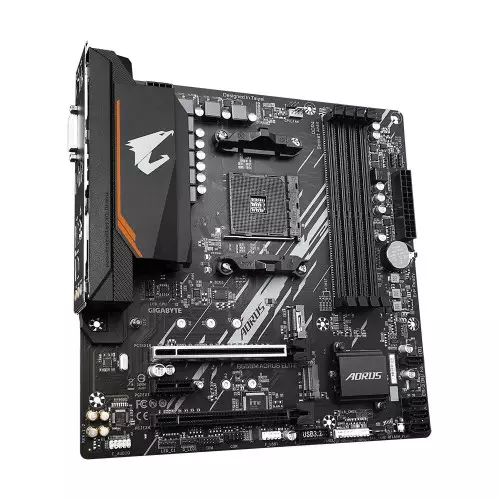

Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard
Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard - 1 Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard - 2 Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard - 3
Discount Tag

Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506078
Brand : Gigabyte
Model : Aorus B550M
Warranty : 3 years
  • Supported CPU: AMD Socket AM4
  • Chipset AMD B550
  • LAN: Realtek GbE LAN chip
  • Audio: Realtek ALC887

    • Product Pricing

    Discount Price

    ৳15,500 ৳18,500
    + Available Payment Method

    EMI Start From*

    ৳546

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

    Mainboard

    Chipset AMD B550
    BIOS 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    AMD Ryzen 5000 series processors:
    Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen Processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3rd Gen AMD Ryzen with Radeon Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
    Supporting SATA and PCIe 3.0 x2 SSDs
    4 x SATA 6Gb/s connectors, integrated into the Chipset:
    Support for RAID 0, RAID 1, and RAID 10

    Graphics

    Graphics
    Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
    DVI-D port, supporting a maximum resolution of 1920x1200 60 Hz
    The DVI-D port does not support D-Sub connection by adapter.
    HDMI port, supporting a maximum resolution of 4096x2160 60 Hz
    Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)

    Audio & Microphone

    Audio Realtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel

    Ports

    Slots PCI Express x16 slot (PCIEX16), integrated in the CPU:
    3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
    3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    Supporting PCIe 3.0 x4 mode
    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
    Supporting PCIe 3.0 x1 mode
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    External I/O Ports PS/2 keyboard/mouse port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    USB CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    HDMI HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

    Others

    Other Features Support for APP Center
    BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Physical Specification

    Form Factor Micro ATX
    Dimension 24.4cm x 24.4cm

    Warranty Information

    Warranty 03 years

    PRODUCT DESCRIPTION

    Gigabyte Aorus B550M Elite AMD 3rd Gen Micro ATX Motherboard

    The Gigabyte BB550M AORUS ELITE AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has four memory slots, supporting up to 128GB of dual-channel RAM, which can run at up to 4733 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.
    PCIe 4.0 Bandwidth
    This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
    Dual NVMe PCIe 4.0/3.0 M.2 Connectors
    With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors support RAID 0/1/10 modes.
    Realtek LAN
    Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority.
    HDMI 2.1
    HDMI 2.1 offers 48 Gb/s of bandwidth, which unlocks the ability to transfer multiple video streams as well as a native cinematic 21:9 aspect ratio, and Full HDR and HDCP 2.3 support. HDMI 2.1 is also backward compatible with HDMI 2.0/1.4.
    Smart Fan 5
    Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid cooling friendly.
    RGB Fusion 2.0
    RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support.
