Product Information

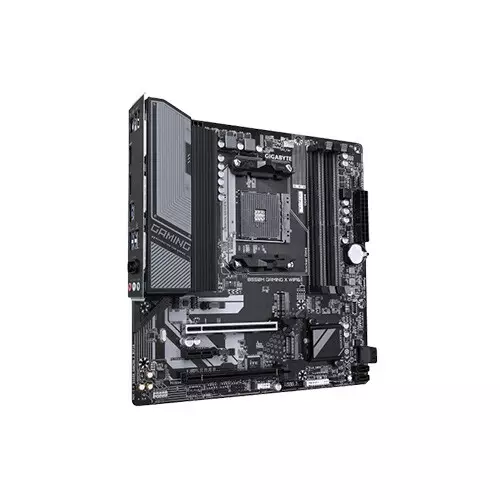

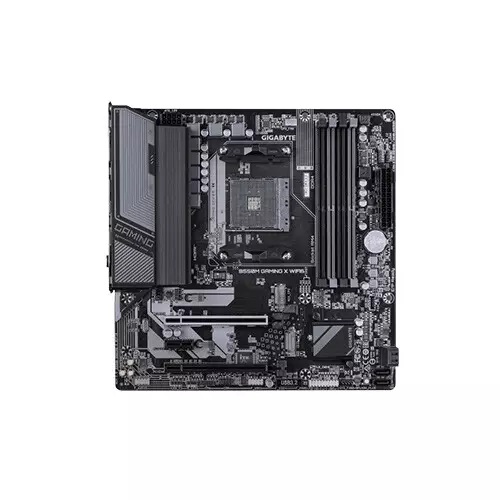

Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard
- Supported CPU - AMD Ryzen 5000 G-Series
- Chipset - AMD B550
- Form Factor - Micro ATX
- LAN - Realtek GbE LAN chip
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Socket AM4, support for:
AMD Ryzen 5000 G-Series Processors/
AMD Ryzen 5000 Series Processors/
AMD Ryzen 4000 G-Series Processors/
AMD Ryzen 3000 G-Series Processors/
AMD Ryzen 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
AMD B550
Mainboard
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
Networking & Connectivity
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Audio & Microphone
Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Ports
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Special Features
Support for APP Center
BIOS
- EasyTune
- RGB Fusion
- Smart Backup
- System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Others
iTE I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Physical Specification
Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty Information
3-Years
PRODUCT DESCRIPTION
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard Price in Bangladesh
Gigabyte B550M GAMING X WIFI6 AMD AM4 Micro ATX Motherboard is a high-performance board designed for gamers, content creators, and power users who want the perfect balance of speed, stability, and connectivity. Powered by the AMD B550 chipset, this motherboard supports the latest AMD Ryzen 5000, 4000, and 3000 series processors, including G-series APUs with Radeon graphics, making it an excellent choice for both gaming rigs and productivity builds. It comes with 4x DDR4 DIMM slots, supporting up to 128GB of RAM, optimized for XMP profiles to ensure maximum performance. For graphics, it features HDMI 2.1 and DisplayPort 1.4 outputs, capable of up to 5K resolution, delivering stunning visuals for gaming and creative work. With support for PCIe 4.0 x16, it unlocks the full power of modern GPUs and NVMe SSDs for ultra-fast performance.
Storage expansion includes dual M.2 slots (one PCIe Gen4, one PCIe Gen3) and 4x SATA 6Gb/s ports, supporting RAID 0/1/10 configurations for maximum speed and redundancy. On the connectivity side, this motherboard is equipped with Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for seamless wireless networking, plus Realtek GbE LAN for stable wired performance. The rear I/O offers a variety of ports including USB 3.2 Gen1, USB Type-C, HDMI, DisplayPort, RJ-45 LAN, and multiple audio jacks powered by Realtek ALC1220 high-definition audio codec, delivering immersive 7.1-channel surround sound. Designed with durability in mind, the Gigabyte B550M GAMING X WIFI6 includes RGB Fusion support, Smart Fan 5 cooling system, and Q-Flash Plus BIOS update feature for easy firmware updates without a CPU or RAM.
Its compact Micro-ATX form factor makes it suitable for smaller gaming builds without sacrificing performance and features. If you’re looking for a future-ready AM4 motherboard with advanced features like PCIe 4.0, Wi-Fi 6, dual M.2 slots, and premium audio, the Gigabyte B550M GAMING X WIFI6 is a top choice. Order yours today from TechLand BD for the best price in Bangladesh.
Does the Gigabyte B550M GAMING X WIFI6 support Ryzen 5000 processors?
Yes, it fully supports AMD Ryzen 5000, 4000, and 3000 series CPUs (check Gigabyte’s website for detailed CPU support).
How many M.2 slots are available on this motherboard?
It comes with 2x M.2 slots (one PCIe Gen4 x4 and one PCIe Gen3 x2) for NVMe and SATA SSDs.
Is Wi-Fi included in this motherboard?
Yes, it features Wi-Fi 6 (802.11ax) and Bluetooth 5.3 built-in for fast and stable wireless connectivity.
