GIGABYTE B850M D3HP AM5 Micro ATX Motherboard

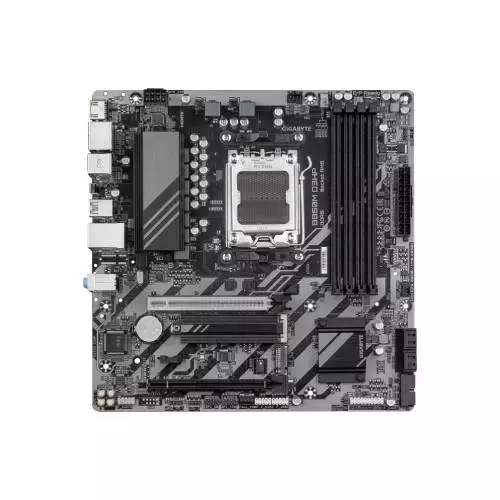

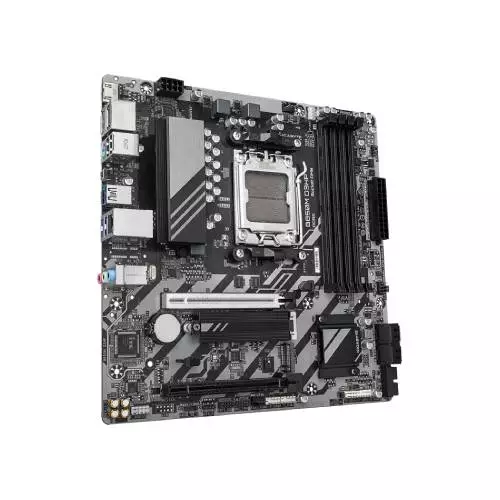

GIGABYTE B850M D3HP AM5 Micro ATX Motherboard GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 1 GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 2 GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 3

GIGABYTE B850M D3HP AM5 Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506479
Brand : Gigabyte
Model : B850M D3HP
Warranty : 3 Year
  • Chipset: AMD B850
  • Form factor: Micro ATX
  • DDR5 DIMM Max. 256GB (Dual Channel)
  • CPU Socket: AM5

    • 17800TK BUNDLE WITH FULL PC

    Product Pricing

    Night Offer Price 00:00:00

    ৳17,799 ৳23,500
    + Available Payment Method

    EMI Start From*

    ৳627

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM5, support for:

    AMD Ryzen 9000 Series Processors/

    AMD Ryzen 8000 Series Processors/

    AMD Ryzen 7000 Series Processors

    Mainboard

    Chipset AMD B850
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) /
    6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

    Storage

    Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs


    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

    AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs


    4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices


    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    Graphics

    Graphics Integrated Graphics Processor with AMD Radeon Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Support for native HDMI 2.1 TMDS compatible ports.

    2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    Support for DisplayPort 1.4 version.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

    Ports

    Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be
    installed, be sure to install it in the PCIEX16 slot.



    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    1 x system fan header

    1 x system fan/water cooling pump header

    2 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 1 x HDMI port

    2 x DisplayPorts

    1 x PS/2 keyboard/mouse port

    1 x Q-Flash Plus button

    1 x USB Type-C port, with USB 3.2 Gen 1 support

    3 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    USB CPU:

    1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 port on the back panel

    1 x USB 2.0/1.1 port on the back panel

    Chipset:

    1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    5 x USB 2.0/1.1 ports

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit

    Support for Windows 10 64-bit

    Special Features

    Speacial Features iTE I/O Controller Chip

    Others

    Other Features H/W Monitoring

    Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    Physical Specification

    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Warranty Information

    Warranty 3 Year

    PRODUCT DESCRIPTION

    GIGABYTE B850M D3HP AM5 Micro ATX Motherboard

    The GIGABYTE B850M D3HP AM5 Micro ATX Motherboard is a high-performance and feature-rich motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset, it supports DDR5 memory up to 8200 MT/s (OC) with a maximum capacity of 256GB, ensuring fast and efficient multitasking. The board offers extensive storage options, including two M.2 slots (supporting PCIe 5.0 and 4.0 SSDs) and four SATA 6Gb/s ports with RAID configurations. For graphics, the motherboard features integrated AMD Radeon Graphics support (based on the installed CPU) and provides multiple display options, including one HDMI 2.1 port (4K@60Hz) and two DisplayPorts (4K@144Hz) for an immersive visual experience. Expandability is enhanced with one PCIe 5.0 x16 slot for high-end GPUs and an additional PCIe 3.0 x4 slot for other add-on cards. Connectivity is seamless with Realtek GbE LAN (1Gbps) and multiple USB ports, including USB 3.2 Gen 1 and USB Type-C for high-speed data transfer. The motherboard also features multiple fan and water cooling pump headers, along with RGB and addressable Gen2 LED headers, allowing users to optimize cooling and customize lighting effects. With a Micro ATX form factor (24.4cm x 24.4cm), the GIGABYTE B850M D3HP fits perfectly in compact builds without compromising on performance. It supports Windows 11 and Windows 10 (64-bit) and comes with a 3-year warranty, making it a reliable, future-proof, and high-performance choice for gamers, content creators, and professionals.
