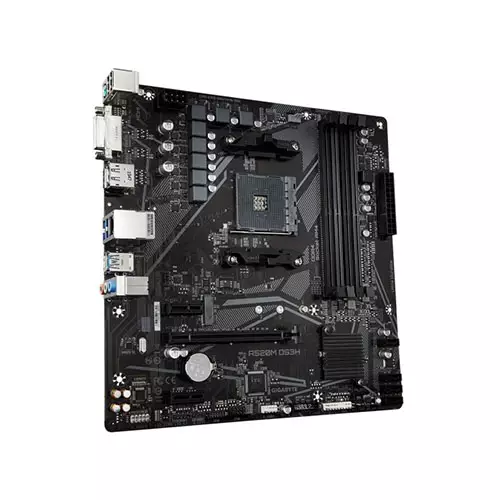

Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard
Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard - 1 Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard - 2
Discount Tag

Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard

4 Reviews
Stock : In Stock
PID : P0392506139
Brand : Gigabyte
Model : A520M DS3H
Warranty : 3 years
  • Smart Fan 5
  • Chipset: AMD A520
  • 3rd Gen AMD Ryzen processors
  • Realtek GbE LAN chip

    • Product Pricing

    Discount Price

    ৳10,100 ৳10,500
    + Available Payment Method

    EMI Start From*

    ৳356

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors

    Mainboard

    Chipset AMD A520
    BIOS 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Type: Dual-Channel Memory Architecture ;
    Slots: 4 x DDR4 DIMM
    Supported Memory 3rd Gen AMD Ryzen Processors:
    Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3rd Gen AMD Ryzen with Radeon Graphics processors:
    Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Mamory 128 GB (32 GB single DIMM capacity)

    Storage

    Supported Storage CPU:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10

    Graphics

    Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    Support for up to 3 displays at the same time
    Max Shared Memory 16 GB

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)

    Audio & Microphone

    Audio Realtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel

    Ports

    Slots PCI CPU:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
    M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x serial port header
    1 x Clear CMOS jumper
    1 x Q-Flash Plus button
    External I/O Ports 1 x PS/2 keyboard/mouse port
    1 x DVI-D port
    1 x DisplayPort
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    USB CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    Physical Specification

    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Warranty Information

    Warranty 03 Years

    PRODUCT DESCRIPTION

    Gigabyte A520M DS3H Motherboard

    Features:
    • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • HDMI, DVI-D, Display Ports for Multiple Display
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    **03 Years Warranty.


    PERFORMANCE

    GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

    Exclusive Realtek 8118 Gaming LAN

    High Speed Gigabit LAN with Automatic Bandwidth Allocation

    Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

    HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

    HDMI 2.1, which is backward compatible with HDMI 2.0/ 1.4 and offers 48 Gb/s of bandwidth – twice times more than the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers

    Smart Fan 5

    With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
