GIGABYTE B550I AORUS PRO AX AMD Motherboard
GIGABYTE B550I AORUS PRO AX AMD Motherboard GIGABYTE B550I AORUS PRO AX AMD Motherboard - 1 GIGABYTE B550I AORUS PRO AX AMD Motherboard - 2
Discount Tag

GIGABYTE B550I AORUS PRO AX AMD Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506071
SKU : TFIYETIDYTJ
Brand : Gigabyte
Model : B550I AORUS PRO AX
Warranty : 3 years
  • Supported CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryze...
  • Chipset: AMD B550
  • BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,...
  • Memory: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory...

PRODUCT SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors

Mainboard

Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
- Supporting SATA and PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
Maximum shared memory of 16 GB

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

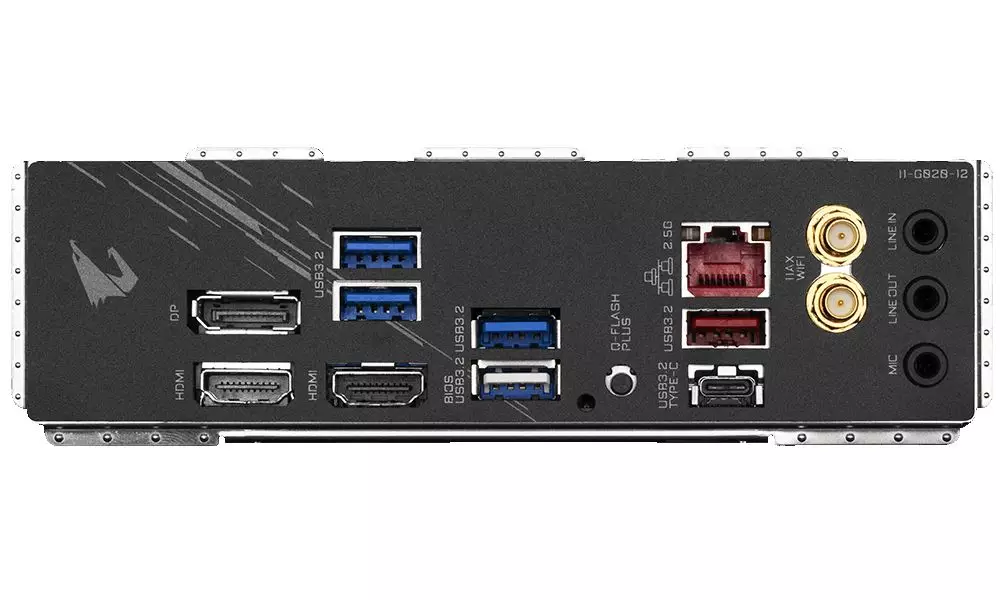

External I/O Ports 1 x DisplayPort
2 x HDMI ports
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header

Physical Specification

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

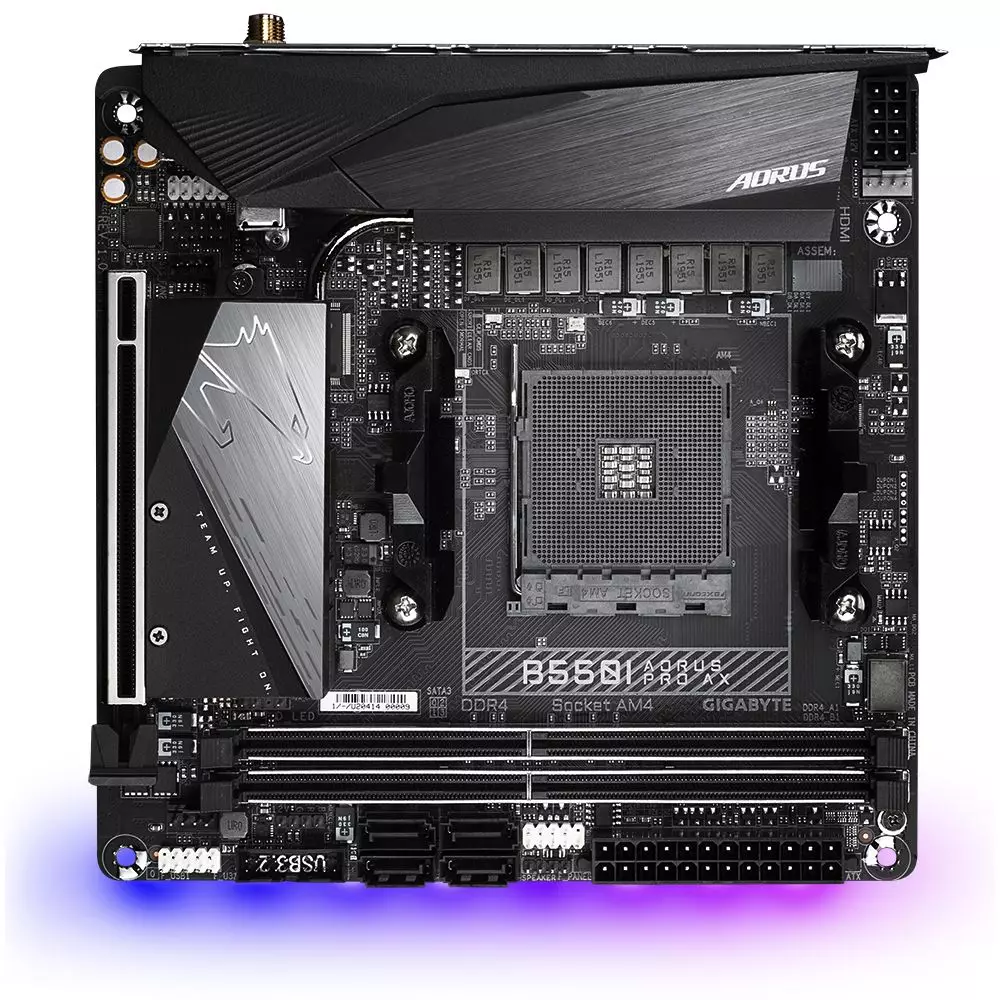

GIGABYTE B550I AORUS PRO AX Motherboard

Features :
  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & DisplayPort + Dual HDMI Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation
**03 Years Warranty.

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, IntelWiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Best Choice for Small but Powerful PC

B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.
