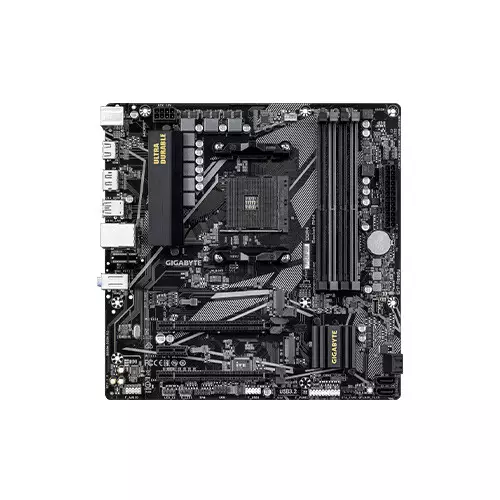

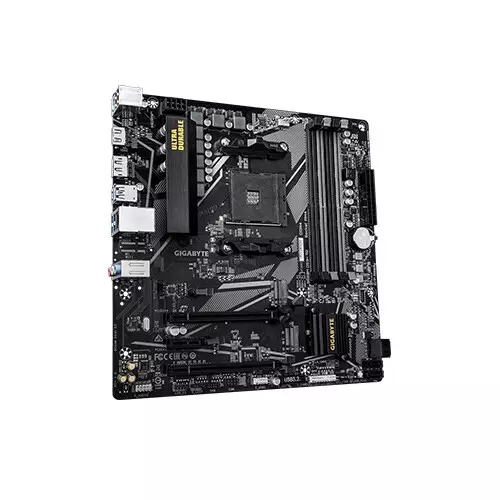

Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard
Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard - 1 Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard - 2 Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard - 3
Discount Tag

Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0322512003
Brand : Gigabyte
Model : B550M DS3H R2
Warranty : 3 Years

Memory size - 128 GB
Memory type - DDR4
Chipset - AMD B550

Form Factor - Micro ATX

Product Pricing

Night Offer Price 00:00:00

৳12,800 ৳14,500
+ Available Payment Method

EMI Start From*

৳451

PRODUCT SPECIFICATIONS

Processor

Supported CPU

AMD Socket AM4, support for:

AMD Ryzen 5000 G-Series Processors/

AMD Ryzen 5000 Series Processors/

AMD Ryzen 4000 G-Series Processors/

AMD Ryzen 3000 G-Series Processors/

AMD Ryzen 3000 Series Processors
Chipset

AMD B550

Mainboard

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory

4 x DDR4 DIMM sockets supporting
up to 128 GB (32 GB single DIMM capacity)
of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) /
4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) /
3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules

Dual-channel memory architecture

Support for ECC Un-buffered DIMM
1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP)
memory modules

Storage

Supported Storage

1 x M.2 connector (M2A_CPU),
integrated in the CPU, supporting Socket 3,
M key, type 2280 SSDs:

AMD Ryzen 5000/3000 Series
Processors support SATA and PCIe 4.0x4/x2 SSDs

AMD Ryzen 5000 G/4000 G/3000 G
Series Processors support SATA and
PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB),
integrated in the Chipset, supporting
Socket 3, M key, type 2280 SATA
and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for
NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for
SATA storage devices

Graphics

Graphics

Integrated Graphics Processor with
AMD Radeon Graphics support:

- 1 x DisplayPort, supporting a
maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version,
HDCP 2.3, and HDR.



- 1 x HDMI port, supporting a
maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.



(Graphics specifications may vary
depending on CPU support.)

Maximum shared memory of 16 GB

Networking & Connectivity

LAN

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Audio & Microphone

Audio

Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio - 2/4/5.1/7.1-channel

Ports

Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 5000/3000 Series
Processors support PCIe 4.0 x16 mode

AMD Ryzen 5000 G/4000 G/3000 G Series
Processors support PCIe 3.0x16 mode

Chipset:

- 1 x PCI Express x16 slot (PCIEX4),
supporting PCIe 3.0 and running at x4

- 1 x PCI Express x1 slot (PCIEX1),
supporting PCIe 3.0 and running at x1
Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button
External I/O Ports

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x HDMI port (Note)

1 x DisplayPort (Note)

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
USB

CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 1 support,
available through the internal USB header

- 2 x USB 3.2 Gen 1 ports available through
the internal USB header

- 4 x USB 2.0/1.1 ports (2 ports on the back panel,
2 ports available through the internal USB header)

Software

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software
Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Others

Controller

iTE® I/O Controller Chip

Physical Specification

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

Gigabyte B550M DS3H R2 AMD Micro ATX Motherboard in Bangladesh

Gigabyte B550M DS3H R2 AMD DDR4 Micro ATX Motherboard is a feature-packed, high-performance motherboard designed for gamers, content creators, and PC builders in Bangladesh who demand reliability, speed, and flexibility. Built on the AMD B550 chipset, it supports a wide range of AMD Socket AM4 processors, including Ryzen 5000, 4000 G-Series, 3000 G-Series, and 3000 Series CPUs, offering exceptional performance for gaming, multitasking, and professional workloads. The motherboard supports up to 128GB of DDR4 memory across 4 DIMM slots, with speeds up to 4733 MHz (OC), dual-channel architecture, and compatibility with XMP profiles for maximum memory optimization. Storage options include 2 M.2 slots (one CPU-integrated supporting PCIe 4.0, one chipset-integrated supporting PCIe 3.0/SATA) and 4 SATA 6Gb/s connectors, with RAID 0, 1, and 10 support for SSDs and HDDs, ensuring fast, reliable data access. Graphics support is versatile, offering integrated AMD Radeon graphics with HDMI 2.1 and DisplayPort 1.4, supporting up to 5120x2880 resolution and HDR, perfect for high-definition gaming and creative applications. Expansion options include PCIe x16, x4, and x1 slots, allowing users to install discrete GPUs, network cards, or other peripherals. Networking is powered by a Realtek Gigabit LAN chip for stable wired connections, and audio is enhanced by the Realtek ALC1220 codec, supporting 2/4/5.1/7.1-channel HD audio. The board is designed for convenience and advanced customization with headers for CPU/system fans, RGB/Addressable LED strips, USB 3.2 Gen 1, USB Type-C, TPM, and front panel connectors, along with a Q-Flash Plus button for easy BIOS updates without CPU installation. The board is a Micro ATX form factor (24.4 x 24.4 cm), fitting compact cases while offering full-featured capabilities. With Windows 10 and 11 64-bit support, bundled Norton Internet Security, and a 3-year warranty, the Gigabyte B550M DS3H R2 ensures reliability and long-term support. Whether building a gaming rig, workstation, or multimedia PC, this motherboard delivers robust performance, upgradeability, and stability, making it a top choice in Bangladesh for AMD-based builds.

Buy Gigabyte B550M DS3H R2 AMD Micro ATX Motherboard in Bangladesh Tech Land BD:

Tech Land BD is a trusted and reputable computer hardware retailer in Bangladesh, known for providing authentic products at competitive prices. When purchasing the Gigabyte B550M DS3H R2 Micro ATX Motherboard from Tech Land BD, customers get genuine items, professional guidance, and excellent after-sales service. The store ensures updated stock, fast delivery, and clear pricing, giving Bangladeshi PC builders confidence in every purchase. With a reputation for reliability and customer satisfaction, Tech Land BD is the ideal shop to buy high-quality motherboards and other PC components at the best price in Bangladesh.

FAQ

Q1: Which CPUs are supported by the Gigabyte B550M DS3H R2 motherboard?

It supports AMD Ryzen 5000/4000 G-Series/3000 G-Series/3000 Series processors with Socket AM4.

Q2: How much RAM can this motherboard support?

Up to 128GB DDR4 across 4 DIMM slots, including support for XMP profiles.

Q3: Does it support PCIe 4.0 for GPUs?

Yes, the CPU-integrated PCIe x16 slot supports PCIe 4.0 x16 mode for compatible Ryzen CPUs.
