Product Information

Save: ৳6,700
GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard

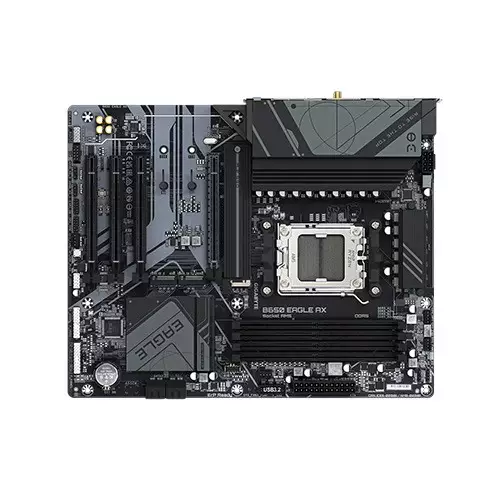

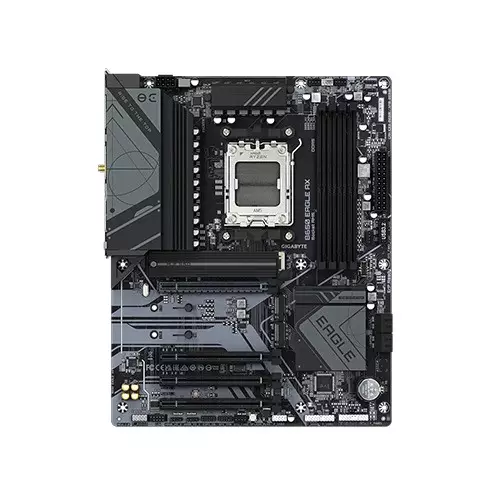

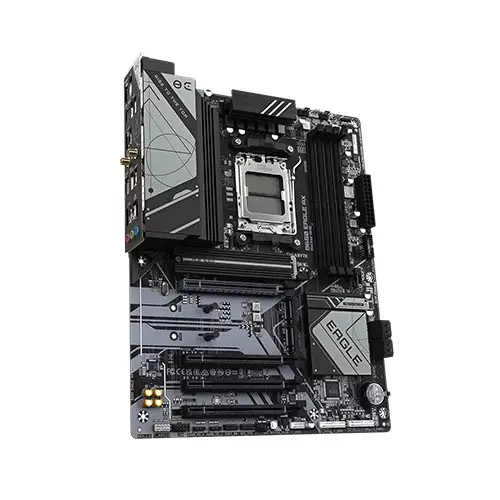

GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard - 1 GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard - 2 GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard - 3 GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard - 4

GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard

0 Reviews
Stock : In Stock
PID : P0392506397
Brand : Gigabyte
Model : B650 EAGLE AX
Warranty : 3 years
  • Chipset: AMD B650
  • Type: DDR5
  • Slots: 4 DIMMs
  • Form Factor: ATX

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳26,300 ৳33,000
    + Available Payment Method

    EMI Start From*

    ৳926

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors

    Mainboard

    Chipset AMD B650
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Size 192GB
    Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

    Storage

    Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs


    1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs

    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs

    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs


    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

    4 x SATA 6Gb/s connectors

    Graphics

    Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:

    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 1.4 version.

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support for native HDMI 2.1 TMDS compatible ports.

    Networking & Connectivity

    Wireless Connectivity ealtek Wi-Fi 6E RTL8852CE

    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.3

    - Support for 11ax 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)
    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

    Audio & Microphone

    Audio Output 3 x Audio jacks
    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    I/O Port Internal I/O Connectors

    1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    2 x system fan headers

    1 x system fan/water cooling pump header

    3 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    3 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 header

    3 x USB 2.0/1.1 headers

    1 x Q-Flash Plus button

    1 x serial port header j

    1 x Clear CMOS jumper


    Back Panel Connectors

    1 x DisplayPort

    1 x HDMI port

    1 x PS/2 keyboard/mouse port

    2 x SMA antenna connectors (2T2R)

    1 x USB Type-C port, with USB 3.2 Gen 1 support

    2 x USB 3.2 Gen 2 Type-A ports (red)

    6 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    PCI Card Slot 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed,
    be sure to install it in the PCIEX16 slot.

    2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1

    * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.

    1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
    Port 1 x DisplayPorts
    Slots 4 DIMMs
    USB CPU:

    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    CPU+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    - 2 x USB 3.2 Gen 1 ports available through the internal USB header

    - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

    - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    HDMI 1x HDMI

    Software

    Software Features Norton Internet Security (OEM version)

    LAN bandwidth management software

    Special Features

    Speacial Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also
    vary depending on motherboard specifications.

    Others

    Other Features RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    Physical Specification

    Form Factor ATX Form Factor; 30.5cm x 24.4cm

    Technical Info

    Type DDR5

    Warranty Information

    Warranty 3 Years

    PRODUCT DESCRIPTION

    GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard in Bangladesh


    Technical Details

    The GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard supports AMD Socket AM5, compatible with AMD Ryzen 8000 and 7000 Series Processors. Built on the AMD B650 chipset, this ATX form factor motherboard measures 30.5cm x 24.4cm. It features a Realtek Audio CODEC for high-definition audio and supports 2/4/5.1/7.1-channel configurations. Expansion slots include one PCI Express x16 slot for graphics cards or NVMe SSDs, and three additional PCI Express x16 slots for various configurations. The motherboard supports up to 192GB of DDR5 memory across four DIMM slots, with speeds up to 7600 MT/s. Integrated graphics support includes one DisplayPort and one HDMI port, providing high resolutions and refresh rates. Connectivity options include multiple USB ports, Realtek GbE LAN, and Realtek Wi-Fi 6E with Bluetooth 5.3. Storage support includes three M.2 connectors and four SATA 6Gb/s connectors. The motherboard also offers advanced features like Q-Flash, Q-Flash Plus, and bundled software for enhanced functionality.


    Availability and Usability

    The GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard is available at Tech Land BD. This high-performance motherboard is ideal for gamers and professionals seeking robust performance, advanced connectivity, and extensive memory support. Its compatibility with the latest AMD processors and support for high-speed DDR5 memory ensure top-notch performance. For those looking for the best "GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard Price in BD," Tech Land BD offers competitive pricing and excellent customer service.


    Highlights

    • Supports AMD Ryzen 8000/7000 Series Processors
    • Up to 192GB DDR5 memory support
    • Multiple high-speed M.2 and SATA connectors
    • Integrated Wi-Fi 6E and Bluetooth 5.3
    • Advanced Q-Flash and Q-Flash Plus features


    Upgrade Your System with GIGABYTE B650 AX from Tech Land BD

    Experience cutting-edge performance and connectivity with the GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard, available at Tech Land BD. This motherboard offers extensive memory support, high-speed storage options, and advanced features for both gamers and professionals. Don't miss out on the best "GIGABYTE B650 EAGLE AX AM5 AMD DDR5 Motherboard Price in Bangladesh." Purchase today from Tech Land BD and take your system to the next level!
