GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard

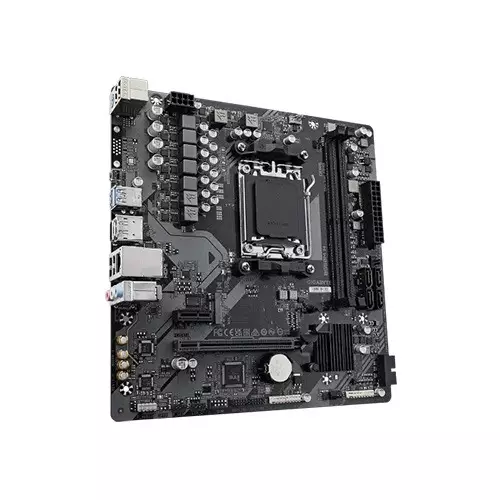

GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard - 1 GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard - 2
Discount Tag

GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506400
Brand : Gigabyte
Model : B650M H
Warranty : 3 years
  • Chipset: AMD B650
  • Type: DDR5
  • Form Factor: Micro ATX
  • Slots: 2 x DIMM

    • Product Pricing

    Night Offer Price 00:00:00

    ৳13,699 ৳14,500
    + Available Payment Method

    EMI Start From*

    ৳482

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

    Mainboard

    Chipset AMD B650
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Size supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Memory Specifications 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
    memory modules

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and
    Extreme Memory Profile (XMP) memory modules
    Memory Type DDR5

    Storage

    Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,
    M key, type 2580/2280 SSDs:

    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2
    SSDs
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors

    Graphics

    Graphics supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 1.4 version.

    supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support for native HDMI 2.1 TMDS compatible ports.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    I/O Port 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    2 x system fan headers

    1 x addressable LED strip header

    1 x RGB LED strip header

    1 x M.2 Socket 3 connector

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Clear CMOS jumper


    Back Panel Connectors

    4 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x Q-Flash Plus button

    2 x USB 3.2 Gen 1 ports

    1 x DisplayPort
    PCI Card Slot 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
    Port 1 x DisplayPort
    Slots 2 x DIMM
    Jack 3 x audio jacks
    USB CPU:

    - 2 x USB 3.2 Gen 1 ports on the back panel

    - 1 x USB 2.0/1.1 port on the back panel

    Chipset:

    - 2 x USB 3.2 Gen 1 ports available through the internal USB header

    - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available
    through the internal USB headers)
    HDMI 1 x HDMI

    Software

    Software Features Norton Internet Security (OEM version)

    LAN bandwidth management software

    Special Features

    Speacial Features TPM:1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    Support for GIGABYTE Control Center (GCC)

    Support for Q-Flash

    Support for Q-Flash Plus

    Others

    Other Features RAID:

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    Physical Specification

    Form Factor mATX

    Warranty Information

    Warranty 3 Years

    PRODUCT DESCRIPTION

    GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard in Bangladesh


    Technical Details

    The GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard is engineered for high performance, supporting AMD Ryzen 7000, 8000, and 9000 Series Processors with its robust AMD B650 chipset. This Micro-ATX motherboard features DDR5 memory support with dual-channel architecture, capable of reaching speeds up to 6400 MT/s. It includes a PCI Express x16 slot for high-performance graphics cards or NVMe SSDs and offers multiple connectivity options such as HDMI 2.1, DisplayPort 1.4, and several USB ports. The Realtek Audio CODEC provides high-definition audio, while the Realtek GbE LAN chip ensures stable and fast network connections. The board also supports RAID configurations and is equipped with GIGABYTE’s exclusive software tools like Q-Flash and GIGABYTE Control Center for enhanced user experience.


    Availability and Usability

    The GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard is available at Tech Land BD, offering top-notch performance and reliability for gaming and productivity builds. Whether you are assembling a new PC or upgrading an existing one, this motherboard provides the latest features and compatibility with next-gen AMD processors. To ensure you get the best deal, check the GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard Price in BD at Tech Land BD.


    Highlights

    • Supports AMD Ryzen 7000, 8000, and 9000 Series Processors
    • DDR5 memory support with speeds up to 6400 MT/s
    • High-definition audio with Realtek Audio CODEC
    • Multiple connectivity options including HDMI 2.1 and DisplayPort 1.4
    • Comprehensive RAID support for NVMe and SATA storage


    Get Your GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard at Tech Land BD Today!

    Don’t miss out on the chance to build a powerful and future-proof PC with the GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard, now available at Tech Land BD. With its advanced features and compatibility with next-gen AMD processors, this motherboard is perfect for gamers and professionals alike. Visit Tech Land BD to find the best GIGABYTE B650M H AM5 DDR5 Micro-ATX Motherboard Price in Bangladesh and secure your motherboard today!
