Product Information

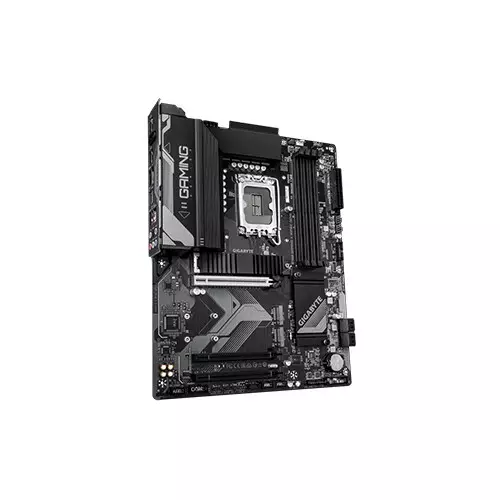

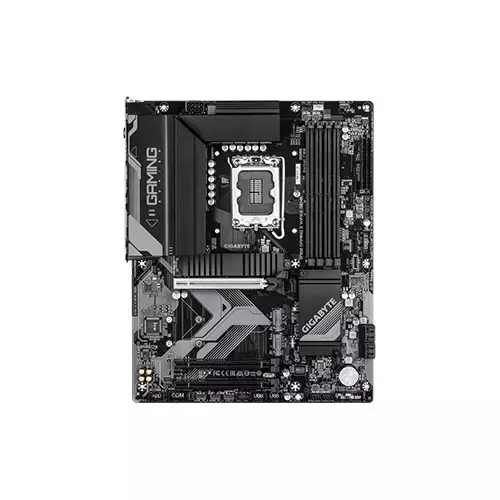

Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard
Chipset: Intel B760 Express Chipset
Support socket: LGA1700
Memory: 4 x DDR5 up to 256 GB
Wireless: Intel Wi-Fi 6E AX210 and BT 5.3
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core,
Pentium\ Gold and Celeron Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Intel B760 Express Chipset
Mainboard
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Networking & Connectivity
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps
Intel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
BBT 5.3
Audio & Microphone
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Ports
Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x RJ-45 port
6 x audio jacks
(Note) Actual support may vary by CPU.
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Norton Internet Security (OEM version)
Special Features
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Unique Features
Support for GIGABYTE Control Centre (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on the motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Others
iTE I/O Controller Chip
Physical Specification
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
3 Years
PRODUCT DESCRIPTION
Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard in Bangladesh
Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard is a premium choice for gamers, creators, and professionals in Bangladesh who want cutting-edge performance and reliability. Built on the Intel B760 Express Chipset, it supports the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron® processors with the LGA1700 socket, ensuring future-ready compatibility. Memory performance is exceptional, with support for DDR5 modules up to 7600(O.C.) MT/s across four DIMM slots, allowing up to 256GB dual-channel system memory. The motherboard also supports Extreme Memory Profile (XMP) for easy overclocking and enhanced speed.
For graphics, it features DisplayPort 1.2 and HDMI 2.1 outputs, supporting resolutions up to 4096x2304@60Hz, depending on CPU capabilities. Audio is powered by the Realtek® Audio CODEC, delivering high-definition sound with support for 2/4/5.1/7.1-channel configurations and S/PDIF Out. Networking is robust with Realtek 2.5GbE LAN and Intel® Wi-Fi 6E AX210, offering ultra-fast wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands, plus Bluetooth 5.3 for seamless device pairing. Expansion is future-proof, with a PCIe 5.0 x16 slot for high-performance graphics cards or NVMe SSDs, along with additional PCIe 3.0 slots.
Storage options include three M.2 connectors (PCIe 4.0 x4/x2) and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 for versatile configurations. Connectivity is extensive, with USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and multiple USB 2.0 ports, ensuring compatibility with modern peripherals. The motherboard also integrates advanced cooling and customisation features, including multiple fan headers, water pump support, and RGB Fusion with addressable Gen2 LED strip headers.
With Q-Flash Plus, BIOS updates are simplified, while GIGABYTE Control Centre (GCC) provides easy system management. Measuring 30.5cm x 24.4cm in ATX form factor, it is designed for durability and performance. Supporting Windows 11 and Windows 10 (64-bit), the Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard is the ultimate solution for building a powerful gaming or productivity PC in Bangladesh.
Buy the Best Gigabyte B760 GAMING X WIFI6E GEN5 Motherboard in Bangladesh from Tech Land BD
Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard is available at Tech Land BD, the most trusted destination for genuine PC components in Bangladesh. Tech Land BD ensures customers receive authentic Gigabyte products at competitive prices with reliable after-sales support. With its support for the latest Intel processors, DDR5 memory, PCIe 5.0 graphics, and Wi-Fi 6E connectivity, this motherboard is perfect for gamers, streamers, and professionals who demand high performance. Tech Land BD guarantees quality and affordability, making it the best shop to purchase the Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard in Bangladesh.
Does the Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard support Intel 14th Gen processors?
Yes, it fully supports Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
Can I use DDR5 RAM with the Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard?
Yes, it supports DDR5 memory modules up to 7600(O.C.) MT/s with a maximum capacity of 256GB.
Why should I buy the Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard from Tech Land BD?
Tech Land BD offers authentic Gigabyte products, competitive pricing, and dependable after-sales service in Bangladesh.
