Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

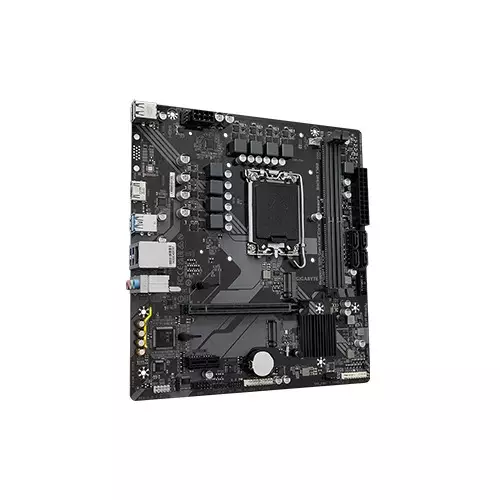

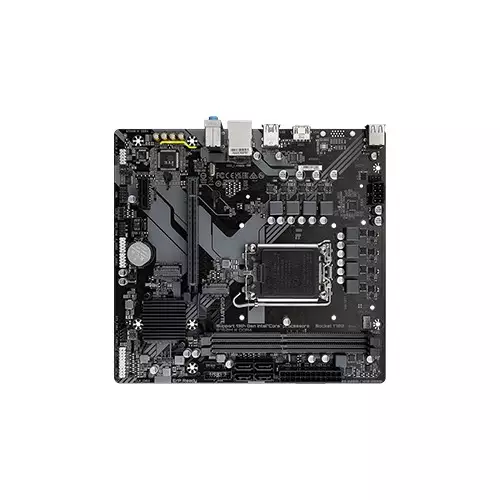

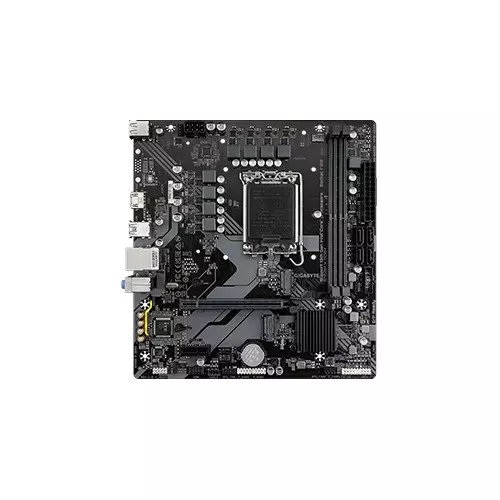

Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard - 1 Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard - 2 Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard - 3 Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard - 4
Discount Tag

Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard

0 Reviews
Stock : In Stock
PID : P0392506455
Brand : Gigabyte
Model : B760M K DDR4
Warranty : 3 Year
  • LGA1700 socket
  • Intel B760 Express Chipset
  • Support for DDR4
  • 1 x 128 Mbit flash

Product Pricing

Discount Price

৳13,500 ৳14,500
+ Available Payment Method

EMI Start From*

৳475

PRODUCT SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for the 14th, 13th, and
12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Mainboard

Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.) / 5133(O.C.) /
5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) /
4300(O.C.) / 4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 /
3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB
(32 GB single DIMM capacity) of system
memory
Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8
memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP)
memory modules

Storage

Storage CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280
PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280
PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for
SATA storage devices

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack
using the audio software. To configure



7.1-channel audio, access the audio software for
audio settings.

Support for S/PDIF Out

Ports

Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.



Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-
TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper
External I/O Ports 2 x USB 2.0/1.1 ports

1 x HDMI port

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
USB Chipset:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back
panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4
ports available through the internal USB headers)
HDMI 1 x HDMI port

Software

Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Physical Specification

Expansion Slots - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.



Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Form Factor Micro ATX Form Factor
Dimension 23.0cm x 21.5cm

Warranty Information

Warranty 03 years

PRODUCT DESCRIPTION

Gigabyte B760M K DDR4 motherboard in Bangladesh

Gigabyte B760M K DDR4 motherboard is a feature-packed solution designed to support 14th, 13th, and 12th Generation Intel processors. This Micro ATX motherboard offers robust performance, advanced connectivity, and versatile compatibility, making it an ideal choice for gaming enthusiasts and professionals in Bangladesh.


Technical Details

The Gigabyte B760M K DDR4 motherboard is built around the Intel B760 Express Chipset and supports Intel® Core™, Pentium® Gold, and Celeron® processors with the LGA1700 socket. It features two DDR4 DIMM slots, supporting up to 64GB of memory with speeds up to 5333 MHz (O.C.), allowing for exceptional multitasking and performance. For graphics, it includes an HDMI 2.1 port capable of 4K resolution at 60Hz. The motherboard provides dual M.2 connectors for PCIe 4.0 SSDs, ensuring high-speed storage options alongside four SATA 6Gb/s connectors.Connectivity options include six USB 3.2 Gen 1 and six USB 2.0/1.1 ports, as well as Realtek® GbE LAN for reliable networking. The expansion slots include one PCIe 4.0 x16 and one PCIe 3.0 x1 slot. The integrated Realtek Audio CODEC delivers high-definition audio with support for up to 7.1 channels. This Micro ATX board also includes features like RGB LED strip headers, multiple fan headers, and a Clear CMOS jumper for easy troubleshooting.


Availability and Usability

Gigabyte B760M K DDR4 motherboard is readily available at Tech Land BD, providing a reliable solution for PC builders and upgraders in Bangladesh. This motherboard offers excellent compatibility with modern Intel processors, advanced storage options, and seamless connectivity, making it a versatile choice for gaming, productivity, and everyday use. Its compact Micro ATX form factor fits perfectly into most PC cases, allowing for a clean and efficient build. For the best deals on the Gigabyte B760M K DDR4 Price in BD, visit Tech Land BD today.


Highlights

  • Supports Intel 14th, 13th, and 12th Gen processors with LGA1700 socket.
  • Dual M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors for fast storage.
  • HDMI 2.1 port for 4K resolution at 60Hz.
  • Robust DDR4 memory support up to 5333 MHz (O.C.).
  • Compact Micro ATX form factor with advanced features like RGB and fan headers.

Why Buy the Gigabyte B760M K DDR4 from Tech Land BD?

Build your dream PC with the Gigabyte B760M K DDR4 motherboard, available now at Tech Land BD. This motherboard’s advanced features, from its support for high-speed DDR4 memory to its PCIe 4.0 slots and 4K HDMI output, make it a solid foundation for any high-performance PC build. Whether you're a gamer, content creator, or professional user, the Gigabyte B760M K DDR4 Price in Bangladesh at Tech Land BD offers unmatched value. Don’t wait—upgrade your PC today with this cutting-edge motherboard for an unbeatable computing experience!
