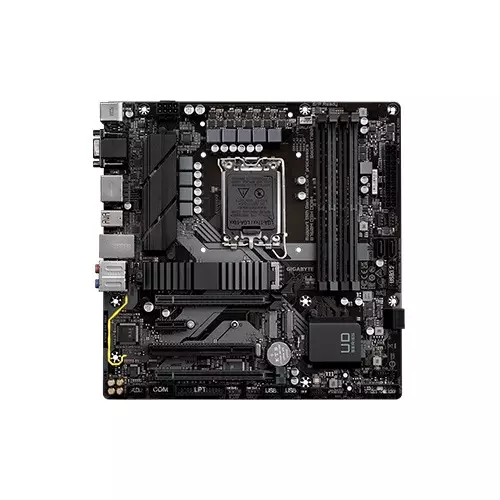

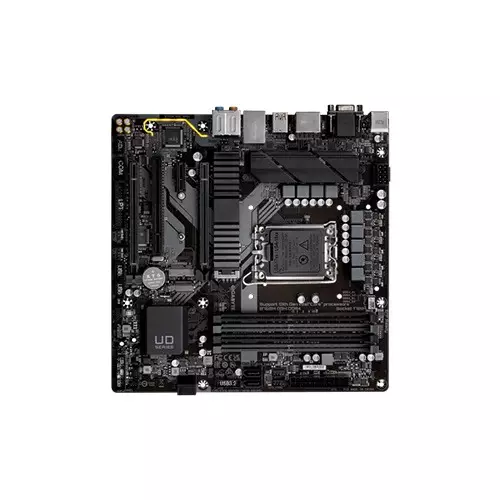

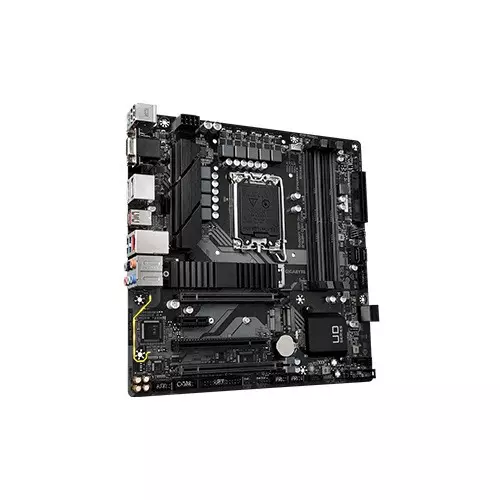

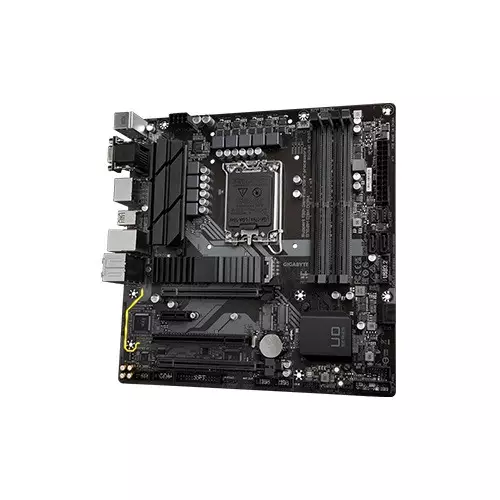

GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard
GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard - 1 GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard - 2 GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard - 3 GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard - 4 GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard - 5
Discount Tag

GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard

4 Reviews
Stock : In Stock
PID : P0392506454
Brand : Gigabyte
Model : B760M D3HP DDR4
Warranty : 3-Years
  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Memory Slot - 4
  • Memory Max - 128GB

    • Product Pricing

    Discount Price

    ৳16,500 ৳17,000
    + Available Payment Method

    EMI Start From*

    ৳581

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Support for the 14th, 13th, and 12th Generation Intel Core

    Pentium Gold and Celeron Processors
    CPU Socket LGA1700

    Mainboard

    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Type DDR4
    Expansion RAM Slot 4
    Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/

    4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/

    4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/

    3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/

    3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/

    2400/2133 MT/s memory modules


    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules



    Maximum Memory

    Supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    Storage

    Supported Storage CPU:

    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


    Chipset:

    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    - 4 x SATA 6Gb/s connectors

    Graphics

    Graphics Onboard Graphics

    Integrated Graphics Processor-Intel HD Graphics support:

    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support for native HDMI 2.1 TMDS compatible ports.




    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

    Audio & Microphone

    Audio Pin 3 x audio jacks
    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    I/O Port Internal I/O Connectors

    1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    3 x system fan headers

    1 x addressable LED strip header

    1 x RGB LED strip header

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x serial port header

    1 x parallel port header

    1 x S/PDIF Out header

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper



    Back Panel Connectors

    2 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x D-Sub port

    1 x DisplayPort

    1 x HDMI port

    3 x USB 3.2 Gen 1 ports

    1 x RJ-45 port

    3 x audio jacks
    PCI Card Slot CPU:

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.




    Chipset:

    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    USB Chipset:

    - 1 x USB Type-C port with USB 3.2 Gen 1 support,

    available through the internal USB header

    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel,

    2 ports available through the internal USB header)

    - 2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    HDMI 1 x HDMI port

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software

    Special Features

    Special Features Support for GIGABYTE Control Center (GCC)

    Support for Q-Flash

    Support for Q-Flash Plus

    Others

    Other Features Display Port (s): 1 x DisplayPort

    D-Sub (s): 1 x D-Sub port



    RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices




    TPM (Trusted Platform Module )

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

    Physical Specification

    Color Black
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Technical Info

    Model B760M D3HP DDR4

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION


    GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard in Bangladesh

    GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard is a reliable and feature-rich solution for building a powerful and efficient PC. Designed to support 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors, this motherboard is an ideal choice for gamers, content creators, and professionals. With a compact Micro ATX form factor and advanced connectivity options, it ensures seamless compatibility with modern components, making it a versatile choice for a variety of builds in Bangladesh.


    Technical Details

    GIGABYTE B760M D3HP DDR4 Motherboard features the Intel B760 Express Chipset, providing a stable and high-performing platform for your PC. It supports up to 128GB DDR4 memory across four slots, with speeds of up to 5333MHz (O.C.), ensuring fast and responsive multitasking. The motherboard offers dual M.2 connectors with PCIe 4.0 x4 SSD support, enabling blazing-fast storage performance. Integrated graphics options include HDMI 2.1, DisplayPort 1.2, and a D-Sub port, supporting resolutions up to 4096x2304@60Hz. With multiple USB 3.2 Gen 1 ports, SATA 6Gb/s connectors, and Realtek Gigabit LAN, the motherboard ensures high-speed connectivity and reliability for both gaming and professional use.


    Availability and Usability

    GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard is readily available at Tech Land BD, ensuring accessibility for customers across Bangladesh. This motherboard is an excellent choice for users who want to build a high-performance system that supports the latest Intel processors and DDR4 memory. Its compact size makes it suitable for small to mid-sized PC cases, while features like dual M.2 slots and high-speed USB ports enhance usability and performance. The GIGABYTE B760M D3HP DDR4 Price in BD is competitive, offering great value for those looking to upgrade or build their systems.


    Highlights

    • Supports 14th, 13th, and 12th Gen Intel Core processors
    • Dual M.2 slots with PCIe 4.0 x4 support for ultra-fast SSDs
    • Up to 128GB DDR4 memory support with speeds up to 5333MHz
    • HDMI 2.1 and DisplayPort 1.2 support for high-resolution displays
    • Compact Micro ATX form factor with advanced connectivity


    Upgrade Your PC with the GIGABYTE B760M D3HP DDR4 from Tech Land BD

    Get your hands on the GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard at Tech Land BD today and build the PC of your dreams. With support for the latest Intel processors, high-speed memory, and multiple connectivity options, this motherboard ensures excellent performance and versatility. The GIGABYTE B760M D3HP DDR4 Price in Bangladesh is unmatched, offering incredible value for gamers and professionals alike. Don’t miss out—visit Tech Land BD now to elevate your computing experience!
