Product Information

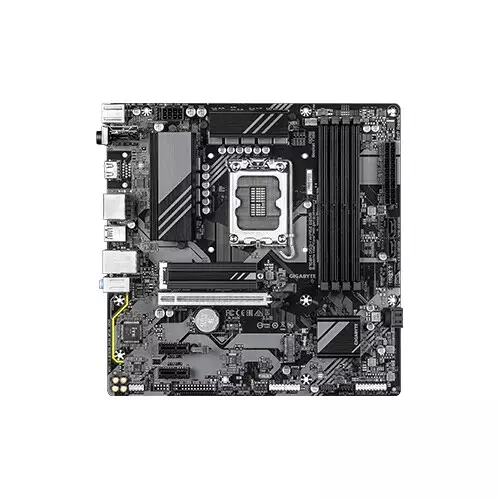

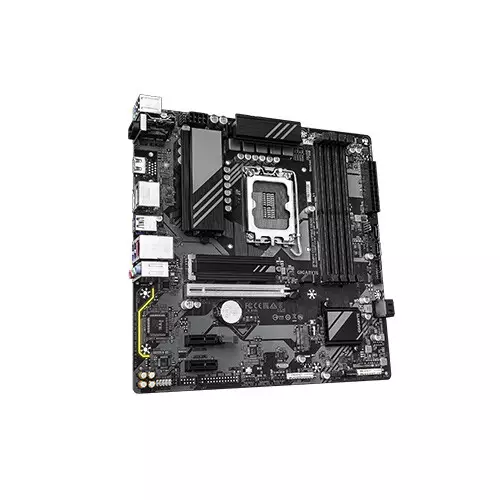

Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard
Chipset - Intel B760
Memory type - DDR5
Memory size - 256GB
Form Factor - Micro ATX
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA1700 socket: Support for the 14th,
13th, and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
Intel B760 Express Chipset
Mainboard
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0,
SM BIOS 2.7, ACPI 5.0
Memory
14th and 13th Generation Intel
Core i9/i7 Processors:
- Support for DDR5
5600/5200/4800/4400 MT/s
memory modules
13th Generation Intel Core i5/i3
and 12th Generation Intel Core,
Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400
MT/s memory modules
4 x DDR5 DIMM sockets supporting
up to 256 GB (64 GB single DIMM capacity)
of system memory
Dual-channel memory architecture
Support for ECC Un-buffered
DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile
(XMP) memory modules
(The CPU and memory configuration
may affect the supported memory types,
data rate (speed), and number
of DRAM modules. Please refer to
"Memory Support List" on GIGABYTE's
website for more information.)
Storage
CPU:
- 1 x M.2 connector (Socket 3,
M key, type 2280 PCIe 4.0 x4/x2
SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3,
M key, type 2280 PCIe 4.0 x4/x2
SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and
RAID 10 support for
SATA storage devices
Graphics
Integrated Graphics Processor-Intel
HD Graphics support:
- 1 x HDMI port, supporting
a maximum resolution of
4096x2160@60 Hz
* Support for HDMI 2.1
version and HDCP 2.3.
** Support for native HDMI
2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting
a maximum resolution
of 4096x2304@60 Hz
* Support for DisplayPort
1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting
a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Networking & Connectivity
Realtek 2.5GbE LAN chip
(2.5 Gbps/1 Gbps/100 Mbps)
Intel Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz
carrier frequency bands
Support for 11ax 160MHz
wireless standard
Audio & Microphone
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Ports
CPU:
- 1 x PCI Express x16 slot, supporting
PCIe 5.0 and running at x16
* The PCIEX16 slot can only
support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots,
supporting PCIe 3.0 and running at x1
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2
LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module
header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port,
with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Chipset:
- 1 x USB Type-C port on the
back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports
(3 ports on the back panel,
2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available
through the internal USB headers
Software
Norton Internet Security (OEM version)
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Others
iTE I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Physical Specification
Micro ATX Form Factor;
24.4cm x 24.4cm
Warranty Information
3 years
PRODUCT DESCRIPTION
Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard in Bangladesh
Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard, available at Tech Land BD in Bangladesh, is a next-generation Micro ATX motherboard designed to deliver high performance, stability, and connectivity for gamers, professionals, and power users. Built on the Intel B760 Express chipset and LGA1700 socket, it supports the latest 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron® processors, making it a reliable choice for modern builds. Featuring 4x DDR5 DIMM slots, it supports up to 256GB of ultra-fast memory with speeds up to 5600 MT/s, ensuring smoother multitasking, faster data processing, and enhanced gaming performance with XMP support. For graphics, the board offers HDMI 2.1 and dual DisplayPort outputs, supporting up to triple displays with 4K resolutions for immersive visuals. Storage expansion is future-ready with dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports supporting RAID 0/1/5/10 configurations, while a PCIe 5.0 x16 graphics slot ensures maximum bandwidth for the latest GPUs. Networking is powered by Realtek 2.5GbE LAN alongside Intel Wi-Fi 6E AX210 and Bluetooth 5.3, providing both stable wired and ultra-fast wireless connectivity. The motherboard also comes with multiple USB options, including a rear USB Type-C 3.2 Gen 2 port, USB 3.2 Gen 1, and legacy USB 2.0 support. Its audio system, backed by Realtek HD Audio CODEC, delivers rich 7.1-channel surround sound with S/PDIF Out. Designed with gamers in mind, it includes addressable RGB Gen2 and RGB LED headers, fully customizable via Gigabyte Control Center (GCC). With support for Q-Flash Plus, BIOS updates are made simple without CPU or RAM installation. Measuring 24.4cm x 24.4cm, this Micro ATX board balances compact size with full functionality, making it an ideal choice for both compact and mid-tower gaming rigs. Available now at Tech Land BD in Bangladesh at a competitive price, the Gigabyte B760M DS3H WIFI6E GEN5 ensures reliability, performance, and future-proof features in one powerful package.Which processors are supported by the Gigabyte B760M DS3H WIFI6E GEN5?
It supports Intel 12th, 13th, and 14th Gen Core processors with LGA1700 socket.
What memory type and capacity does it support?
It supports DDR5 RAM up to 256GB with dual-channel architecture.
Does the Gigabyte B760M DS3H have built-in Wi-Fi?
Yes, it comes with Wi-Fi 6E and Bluetooth 5.3 support.
CUSTOMER REVIEWS
Overall Rating
Login to write a review.
One of the best Motherboard
30 June, 2026
Best motherboard in gaming series
07 May, 2026
What is the Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard Price in Bangladesh 2026 ?
