Product Information

Save: ৳400

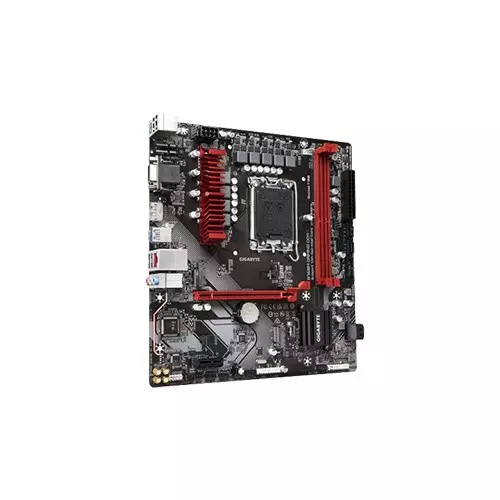

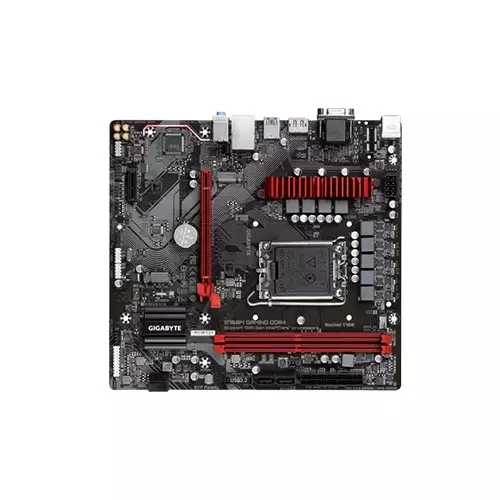

GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard
GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard - 1 GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard - 2 GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard - 3
Discount Tag

GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard

2 Reviews
Stock : In Stock
PID : P0392506499
Brand : Gigabyte
Model : B760M GAMING
Warranty : 3-Years
  • Chipset - Intel B760 Express Chipset
  • CPU - LGA1700 socket: Support for the 14th, 13th, and 12th Generation
  • Operating System - Support for Windows 11 64-bit / 10 64-bit
  • Form Factor - Micro ATX Form Factor; 24.4cm x 22.5cm

    • Product Pricing

    Discount Price

    ৳19,100 ৳19,500
    + Available Payment Method

    EMI Start From*

    ৳673

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation

    Intel Core, Pentium Gold and Celeron Processors

    L3 cache varies with CPU

    Mainboard

    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/
    4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/
    4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/
    3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/
    2666/ 2400/ 2133 MT/s memory modules

    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of
    system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Graphics

    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure
    7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

    Ports

    Interface CPU:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    3 x system fan headers

    1 x addressable LED strip headers

    1 x RGB LED strip headers

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x S/PDIF Out header

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x serial port header

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 2 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x D-Sub port

    1 x HDMI port

    1 x DisplayPort

    3 x USB 3.2 Gen 1 ports

    1 x USB Type-C port, with USB 3.2 Gen 1 support

    1 x RJ-45 port

    3 x audio jacks
    USB Chipset:

    1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the
    internal USB header)

    2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hubs:

    4 x USB 2.0/1.1 ports available through the internal USB headers

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management softwarec

    Special Features

    Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each
    application may also vary depending on motherboard specifications.

    Support for Q-Flash

    Support for Q-Flash Plus

    Others

    Controller iTE I/O Controller Chip
    Other Features H/W Monitoring

    Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    Physical Specification

    Expansion Slots CPU:

    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    Chipset:

    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

    Technical Info

    Model B760M GAMING

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard in Bangladesh

    GIGABYTE B760M GAMING DDR4 is a high-performance Micro ATX motherboard designed for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. Built on the Intel B760 Express chipset, this motherboard supports DDR4 memory with speeds up to 5333MT/s (O.C.), making it an excellent choice for gaming and multitasking. It features dual DIMM slots supporting up to 64GB of system memory and Extreme Memory Profile (XMP) support for overclocking. For graphics output, the motherboard provides D-Sub, HDMI 2.1 (4K@60Hz), and DisplayPort 1.2 (4K@60Hz), allowing up to three displays simultaneously. The Realtek 2.5GbE LAN chip ensures high-speed wired network connectivity, ideal for gamers and content creators. It includes two M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations for enhanced storage performance. Additionally, the PCIe 4.0 x16 slot allows for seamless compatibility with the latest graphics cards and NVMe SSDs. The motherboard is equipped with multiple USB ports, including USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, and USB 2.0/1.1 ports, ensuring fast data transfer and broad peripheral support. The Realtek HD Audio Codec provides 7.1-channel high-definition sound with S/PDIF out support for an immersive audio experience. Designed with Q-Flash and Q-Flash Plus for easy BIOS updates and GIGABYTE Control Center (GCC) support for advanced system tuning, the B760M GAMING DDR4 is built for stability, performance, and durability. Backed by a 3-year warranty, this motherboard is an excellent choice for gamers and PC builders in Bangladesh looking for affordable DDR4 performance.


    Does the GIGABYTE B760M GAMING DDR4 support DDR5 RAM?

    No, this motherboard only supports DDR4 memory.

    Can I use this motherboard for gaming?

    Yes, with support for PCIe 4.0 graphics cards, high-speed DDR4 RAM, and fast NVMe SSD storage, it's a great option for gaming.

    Does the motherboard support built-in Wi-Fi?

    No, it does not have Wi-Fi, but you can use a Wi-Fi adapter via USB or PCIe.

    What is the warranty period for this motherboard?

    It comes with a 3-year manufacturer warranty.

    CUSTOMER REVIEWS

    Overall Rating

    4 out of 5 stars
    2
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    2
    3 star
    0
    2 star
    0
    1 star
    0
    Bharat Motiani

    wanna brouht for my brother best motherboard

    08 July, 2026

    Imran

    thanks techland for the motherboard

    06 July, 2026

    What is the GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard Price in Bangladesh 2026 ?

    The Gigabyte B760M GAMING Price in BD is 19,100৳ . This GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING by 19,100৳ and its regular price is 19,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
