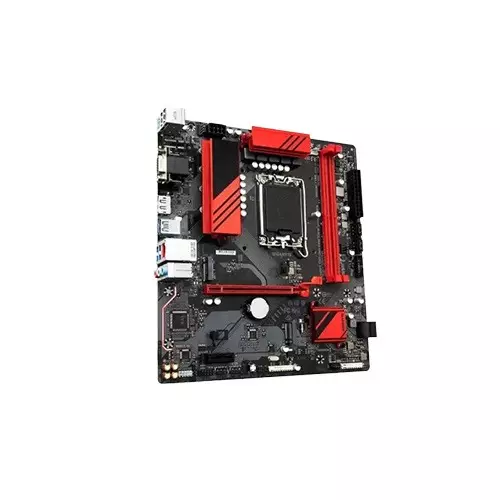

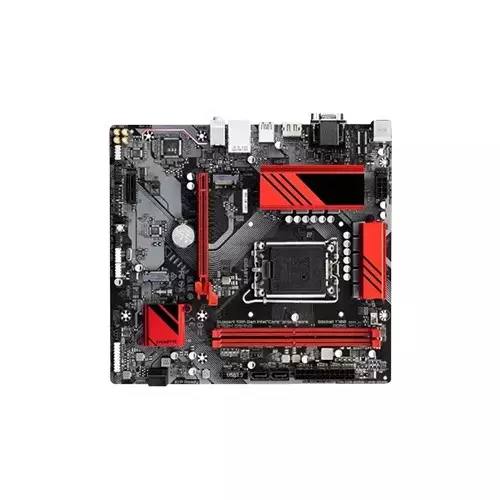

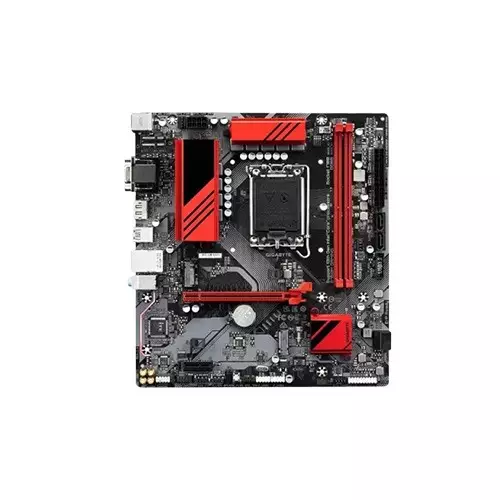

GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard
GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard - 1 GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard - 2 GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard - 3 GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard - 4

GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard

3 Reviews
Stock : In Stock
PID : P0392506498
Brand : Gigabyte
Model : B760M GAMING
Warranty : 3-Years
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 128GB 8000(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳19,800 ৳22,800
    + Available Payment Method

    EMI Start From*

    ৳697

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core,

    Pentium Gold and Celeron Processors
    L3 cache varies with the CPU

    Mainboard

    Chipset Intel B760 Express Chipset
    BIOS 1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Type DDR5
    Memory Slots - 2

    Supported Memory

    Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) /
    6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s
    memory modules

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of
    DRAM modules, please refer to "Memory Support List" for more information.)

    Maximum Memory

    Supporting up to 128 GB (64 GB single DIMM capacity) of system memory

    Storage

    Supported Storage CPU:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    4 x SATA 6Gb/s connectors

    Graphics

    Graphics Graphics

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software.

    To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

    Ports

    Jack 3 x audio jacks
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    3 x system fan headers

    1 x addressable LED strip headers

    1 x RGB LED strip headers

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x S/PDIF Out header

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x serial port header

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 2 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x D-Sub port

    1 x HDMI port

    1 x DisplayPort

    3 x USB 3.2 Gen 1 ports

    1 x USB Type-C port, with USB 3.2 Gen 1 support

    1 x RJ-45 port

    3 x audio jacks
    USB Chipset:

    1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hubs:

    4 x USB 2.0/1.1 ports available through the internal USB headers
    HDMI 1 x HDMI port
    Ports & Connectors Display Port (s) - 1 x DisplayPort

    D-Sub (s) - 1 x D-Sub port

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software

    Special Features

    Special Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model.

    Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash

    Support for Q-Flash Plus

    Others

    Other Features RAID

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices



    TPM (Trusted Platform Module )

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    Physical Specification

    Expansion Slots PCI

    CPU:

    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    Chipset:

    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard in Bangladesh

    GIGABYTE B760M GAMING is a high-performance DDR5 Micro ATX motherboard designed for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. Built on the Intel B760 Express chipset, it delivers enhanced gaming and multitasking capabilities with support for DDR5 memory up to 128GB and speeds of 8000MT/s (O.C.). This motherboard features a PCIe 4.0 x16 slot, ensuring optimal performance for graphics cards or NVMe SSDs. Additionally, it comes with two M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, offering high-speed storage expansion and RAID 0, 1, 5, and 10 support. For connectivity, the Realtek 2.5GbE LAN chip provides ultra-fast network performance, while the board includes multiple USB ports, such as USB 3.2 Gen 1 Type-C and five USB 3.2 Gen 1 ports. The integrated Realtek HD Audio Codec delivers immersive 7.1-channel high-definition audio with S/PDIF out support. For display output, it features D-Sub, HDMI 2.1 (4K@60Hz), and DisplayPort 1.2 (4K@60Hz), ensuring compatibility with high-resolution monitors. Designed for stability and durability, the B760M GAMING motherboard includes Q-Flash and Q-Flash Plus for easy BIOS updates without a CPU or RAM installed. The GIGABYTE Control Center (GCC) allows comprehensive system monitoring and customization. Its 3-year warranty ensures long-term reliability, making it a perfect choice for gamers and PC enthusiasts. Customers in Bangladesh can buy the GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard from Tech Land BD at the best price.


    Does the GIGABYTE B760M GAMING support DDR4 RAM?

    No, this motherboard only supports DDR5 memory modules.

    Can I use this motherboard for gaming?

    Yes, it supports PCIe 4.0 graphics cards, high-speed DDR5 RAM, and fast storage, making it ideal for gaming.

    Does the motherboard support Wi-Fi connectivity?

    No, it does not have built-in Wi-Fi, but you can add a Wi-Fi adapter using a PCIe slot or USB.

    CUSTOMER REVIEWS

    Overall Rating

    4 out of 5 stars
    3
    Total Reviews

    Login to write a review.

    5 star
    1
    4 star
    2
    3 star
    0
    2 star
    0
    1 star
    0
    A K Adi onny

    Best motherboard in Bangladesh

    09 July, 2026

    Humaun Kabir

    This one’s a beast for overclocking. Kept my CPU cool and stable even under heavy loads. The power delivery is top-notch. Only downside? The RGB software is clunky, but if you’re here for performance, you won’t care.

    07 July, 2026

    Engr. Jubayer Ahmed

    Solid board, zero headaches. Installation was smooth, BIOS is clean and easy to navigate. Boot times are quick, and everything worked out of the box with my RAM and CPU. No frills, just reliable performance. Great for a no-nonsense build.

    13 June, 2026

    What is the GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard Price in Bangladesh 2026 ?

    The Gigabyte B760M GAMING Price in BD is 19,800৳ . This GIGABYTE B760M GAMING Intel B760 DDR5 Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING by 19,800৳ and its regular price is 22,800৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
