Product Information

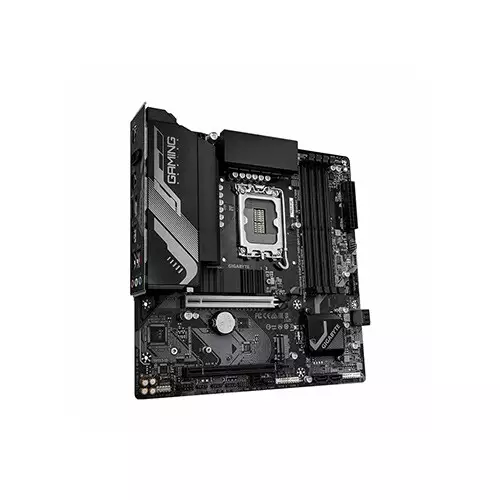

Gigabyte B760M GAMING X GEN5 Wi-Fi 6E DDR5 Gaming Motherboard
Chipset - Intel B760
Sockets Supported - LGA1700
Memory Slot - 4
Memory Max. - 256GB
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Intel B760 Express Chipset
Mainboard
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0,
SM BIOS 2.7, ACPI 5.0
Memory
14th and 13th Generation Intel Core
i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400
MT/s memory modules
13th Generation Intel Core i5/i3
and 12th Generation Intel Core,
Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s
memory modules
4 x DDR5 DIMM sockets supporting
up to 256 GB (64 GB single DIMM capacity)
of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM
1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile
(XMP) memory modules
(The CPU and memory configuration
may affect the supported memory types,
data rate (speed), and number of DRAM
modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Storage
CPU:
- 1 x M.2 connector
(Socket 3, M key, type
2280 PCIe 4.0 x4/x2 SSD support)
(M2A_CPU)
Chipset:
- 1 x M.2 connector
(Socket 3, M key, type
22110/2280 PCIe 4.0 x4/x2
SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID
10 support for SATA storage devices
Graphics
Integrated Graphics Processor-Intel
HD Graphics support:
- 1 x HDMI port, supporting
a maximum resolution of
4096x2160@60 Hz
* Support for HDMI 2.1 version
and HDCP 2.3.
** Support native HDMI 2.1
TMDS compatible ports.
- 1 x DisplayPort, supporting
a maximum resolution of
4096x2304@60 Hz
* Support for DisplayPort 1.2
version and HDCP 2.3
Networking & Connectivity
Realtek 2.5GbE LAN chip
(2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz
carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz
wireless standard
(Actual data rate may vary
depending on environment
and equipment.)
Audio & Microphone
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Ports
CPU:
- 1 x PCI Express x16 slot,
supporting PCIe 5.0 and
running at x16 (PCIEX16)
* The PCIEX16 slot can only
support a graphics card or an
NVMe SSD. If only one graphics
card is to be installed, be sure to
install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot,
supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header,
with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in
card connectors
1 x Trusted Platform Module
header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
Chipset:
- 1 x USB Type-C port with
USB 3.2 Gen 2 support, available
through the internal USB header
- 5 x USB 3.2 Gen 1 ports
(3 ports on the back panel,
2 ports available through the
internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports
(4 ports on the back panel,
4 ports available through the
internal USB headers)
Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Others
iTE I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Physical Specification
Micro ATX Form Factor;
24.4cm x 24.4cm
Warranty Information
3 years
PRODUCT DESCRIPTION
Gigabyte B760M GAMING X GEN5 (Wi-Fi 6E) DDR5 Gaming Motherboard in Bangladesh
Gigabyte B760M GAMING X GEN5 (Wi-Fi 6E) DDR5 Gaming Motherboard, available at Tech Land BD in Bangladesh, is a powerful and feature-rich Micro-ATX motherboard designed for gamers, creators, and professionals who demand cutting-edge performance and stability. Built on the Intel B760 chipset, it supports 12th, 13th, and the latest 14th Gen Intel® Core™ processors with the LGA1700 socket, ensuring long-term upgrade potential. With support for up to 256GB of ultra-fast DDR5 memory across four slots, this motherboard guarantees next-level speed and efficiency for multitasking, gaming, and heavy workloads.
Its PCIe Gen5 support delivers lightning-fast bandwidth for future-ready graphics cards and storage, while dual M.2 slots ensure ample expansion for high-speed NVMe SSDs. Featuring Intel Wi-Fi 6E and Bluetooth 5.3, it provides seamless wireless connectivity with low latency for gaming and streaming. The integrated graphics chipset allows display output when paired with supported Intel processors, making it versatile for different setups. Optimized for Windows 10 and 11, the board also offers multiple connectivity options, ensuring smooth compatibility with modern peripherals. Designed with a sleek black finish and durable build quality, it not only delivers excellent performance but also enhances the aesthetics of any gaming rig.
Backed by a 3-year warranty, the Gigabyte B760M GAMING X GEN5 Wi-Fi DDR5 Motherboard in Bangladesh stands out as a reliable and future-proof choice for enthusiasts who want top-tier performance, next-gen connectivity, and rock-solid durability at a competitive price from Tech Land BD. The Gigabyte B760M GAMING X GEN5 Wi-Fi 6E motherboard offers PCIe 5.0 support, DDR5 performance, robust power delivery, and ultra-fast Wi-Fi 6E for gaming PCs. A perfect choice for Intel 12th–14th Gen builds, delivering premium features at a competitive motherboard price in BD.
Which processors are supported by the Gigabyte B760M GAMING X GEN5?
It supports 12th, 13th, and 14th Gen Intel Core processors with LGA 1700 socket.
What type of memory does this motherboard use?
It supports DDR5 RAM up to 256GB with high overclocking speeds.
Does the Gigabyte B760M GAMING X GEN5 have built-in Wi-Fi?
Yes, it features Wi-Fi 6E and Bluetooth 5.3.
