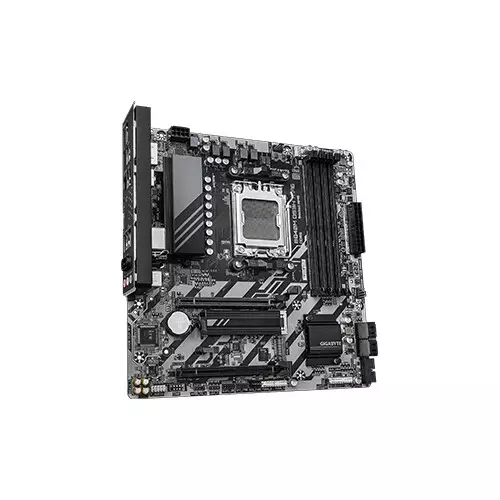

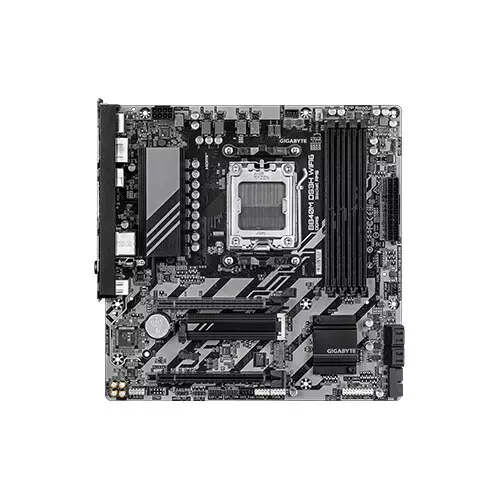

GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard
GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard - 1 GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard - 2 GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard - 3

GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard

1 Reviews
Stock : In Stock
PID : P0322510007
Brand : Gigabyte
Model : B840M DS3H WIFI6
Warranty : 3 Years

Chipset: AMD B840

CPU Socket: AMD AM5 Socket

Memory: 4 x DDR5 RAM

Form Factor: Micro ATX

🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳20,100 ৳21,000
+ Available Payment Method

EMI Start From*

৳708

PRODUCT SPECIFICATIONS

Processor

Supported CPU

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)
Chipset

AMD B840

Mainboard

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.

Memory

Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual-channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.)

Storage

Supported Storage

1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen 9000 Series Processors.



RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics

Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

**Support for native HDMI 2.1 TMDS-compatible ports. **



- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.



Support for up to triple-display at the same time

(Graphics specifications may vary depending on CPU support.)

Networking & Connectivity

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi

Realtek Wi-Fi 6 RTL8851BE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

- Support for 11ax 80MHz wireless
Bluetooth

BLUETOOTH 5.3

Audio & Microphone

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Ports

Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper
External I/O Ports

1 x HDMI port (Note)

2 x DisplayPorts (Note)

1 x Q-Flash Plus button

1 x PS/2 keyboard/mouse port

1 x USB Type-C port, with USB 3.2 Gen 1 support

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x antenna connectors (1T1R)

1 x RJ-45 port

3 x audio jacks


(Note) Actual support may vary by CPU.
USB

CPU:

- 1 x USB Type-C port, with USB 3.2 Gen 1 support on the back panel

- 1 x USB 3.2 Gen 1 port on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Bundled Software

Norton Internet Security (OEM version)
Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Special Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.



Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Others

Controller

I/O Controller: iTE I/O Controller Chip
Other Features

H/W Monitoring:

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Physical Specification

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty

3 Years

PRODUCT DESCRIPTION

GIGABYTE B840M DS3H WIFI6 Micro ATX Motherboard Price in Bangladesh

GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard is an advanced motherboard crafted for gamers, PC builders, and performance-focused users seeking reliability and speed. It features support for AMD Ryzen™ 7000, 8000, and 9000 Series processors on the AM5 socket, delivering exceptional processing power for both gaming and professional workloads. With 4 DDR5 DIMM slots supporting up to 256GB of RAM, it offers lightning-fast memory performance along with AMD EXPO™ and XMP overclocking capabilities, enabling seamless multitasking and high-speed operations.

This motherboard supports triple-display setups through dual DisplayPorts and HDMI 2.1, offering excellent visuals for productivity or gaming. For storage, it includes two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors, supporting RAID 0, 1, 5, and 10, ensuring fast and flexible storage solutions. Connectivity is enhanced with USB Type-C, multiple USB 3.2 and 2.0 ports, Realtek 2.5GbE LAN, Wi-Fi 6, and Bluetooth 5.3, providing stable wired and wireless connections. Audio enthusiasts benefit from Realtek High Definition Audio supporting up to 7.1-channel surround sound, while robust system monitoring, fan control, and water cooling support maintain optimal temperatures.

Features like GIGABYTE Control Center, Q-Flash Plus, and Smart Backup simplify BIOS updates and system maintenance. Its Micro ATX form factor (24.4 x 24.4 cm) allows compact builds without compromising performance. Compatible with Windows 10 and 11, this motherboard delivers a versatile and future-ready platform for all your computing needs in Bangladesh. The GIGABYTE B840M DS3H WIFI6 motherboard features next-gen DDR5 memory support, built-in WiFi 6, and solid power design for smooth computing performance. Perfect for modern Intel builds, offering great value for users searching for a reliable Gigabyte motherboard price in BD.



Buy GIGABYTE B840M DS3H WIFI6 Motherboard in Bangladesh from Tech Land BD

Purchase the GIGABYTE B840M DS3H WIFI6 motherboard at Tech Land BD, a trusted source for genuine PC hardware in Bangladesh. Tech Land BD offers competitive pricing, nationwide delivery, and reliable warranty service, making it the go-to choice for gamers, professionals, and PC enthusiasts. With advanced AMD AM5 support, DDR5 memory compatibility, high-speed Wi-Fi 6, and multiple expansion slots, this motherboard ensures exceptional performance and future-proofing for your PC build.

Which AMD processors are compatible with this motherboard?

It supports AMD Ryzen™ 7000, 8000, and 9000 Series processors via the AM5 socket.

How much RAM can it support?

It supports up to 256GB DDR5 memory across 4 DIMM slots with dual-channel architecture.

Does it include Wi-Fi and multiple display support?

Yes, it comes with Wi-Fi 6, Bluetooth 5.3, and triple-display support through HDMI 2.1 and dual DisplayPorts.

CUSTOMER REVIEWS

Overall Rating

5 out of 5 stars
1
Total Reviews

Login to write a review.

5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Tawhid

Installed Ryzen 5/7 with DDR5-6000 and it runs smoothly. Wi-Fi 6 and 2.5Gb LAN are nice extras at this price, and BIOS EXPO memory profiles worked without hassle

07 August, 2025

What is the GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte B840M DS3H WIFI6 Price in BD is 20,100৳ . This GIGABYTE B840M DS3H WIFI6 AMD AM5 DDR5 Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 1 reviews. Tech Land BD Offers you Gigabyte B840M DS3H WIFI6 by 20,100৳ and its regular price is 21,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
