Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

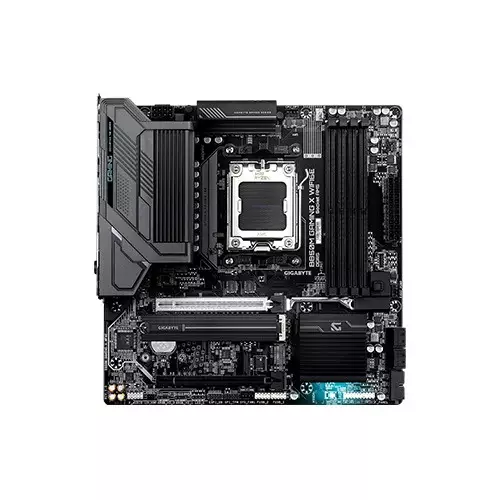

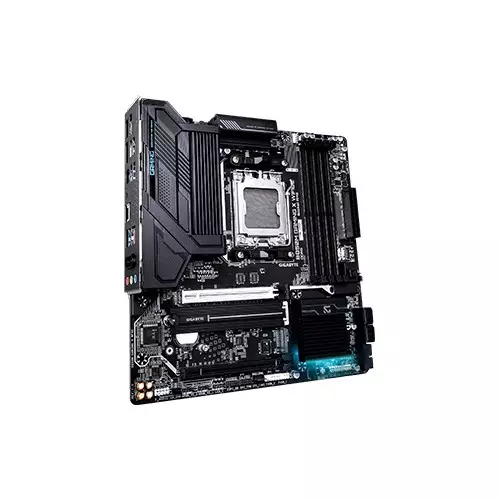

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard - 1 Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard - 2 Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard - 3

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506487
Brand : Gigabyte
Model : B850M Gaming X WF6E
Warranty : 3-Years
  • Chipset: AMD B850
  • BIOS: 1 x 256 Mbit flash
  • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
  • Maximum Resolution: 3840x2160@144 Hz

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳29,800 ৳35,000
    + Available Payment Method

    EMI Start From*

    ৳1,049

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD Socket AM5, support for:

    AMD Ryzen 9000 Series Processors/

    AMD Ryzen 8000 Series Processors/

    AMD Ryzen 7000 Series Processors

    (Go to GIGABYTE's website for the latest CPU support list.)

    Mainboard

    Chipset AMD B850
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) /

    7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) /

    6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.


    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system
    memory Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory
    Profile (XMP) memory modules

    Storage

    Supported Storage x M.2 connector (M2A_CPU), integrated into the CPU,


    supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:


    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs


    1 x M.2 connector (M2B_CPU), integrated into the CPU, supporting Socket 3, M key, type

    25110/22110/2580/2280 SSDs:

    AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    * RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1,

    and RAID 10 support for SATA storage devices

    Graphics

    Graphics Integrated Graphics Processor with AMD Radeon Graphics support:


    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3, and HDR.

    ** Support for native HDMI 2.1 TMDS compatible ports.

    - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 1.4 version.

    (Graphics specifications may vary depending on CPU support.)

    Support for up to triple-display at the same time

    Networking & Connectivity

    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    WiFi Realtek Wi-Fi 6E RTL8852CE

    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier
    Bluetooth v5.3

    - Support for 11ax 160MHz wireless standard

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    I/O Port Back Panel I/O Ports:

    1 x HDMI port (Note)

    2 x DisplayPort (Note)

    1 x Q-Flash Plus button

    1 x PS/2 keyboard/mouse port

    1 x USB 3.2 Gen 2 Type-A ports (red)

    1 x USB Type-C port, with USB 3.2 Gen 2 support

    2 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    2 x antenna connectors (2T2R)

    Š3 x audio jacks

    (Note) Actual support may vary by CPU




    Internal I/O Ports:

    1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    1 x system fan header

    1 x system fan/water cooling pump header

    3 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    4 x SATA 6Gb/s connectors

    2 x M.2 Socket 3 connectors

    1 x front panel header

    1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x reset button

    1 x reset jumper

    1 x Clear CMOS jumper
    USB CPU:


    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel


    CPU+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports on the back panel


    Chipset:

    - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    - 4 x USB 2.0/1.1 ports available through the internal USB headers

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software

    Physical Specification

    Color Black
    Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Technical Info

    Brand Gigabyte
    Model B850M Gaming X WF6E
    Operating System Support Support for Windows 11 64-bit

    Support for Windows 10 64-bit

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard in Bangladesh

    Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard is a powerful and versatile motherboard designed for gamers, content creators, and PC enthusiasts in Bangladesh who demand high performance and advanced features. Available at Tech Land BD, this motherboard supports AMD Socket AM5, making it compatible with the latest AMD Ryzen™ 9000, 8000, and 7000 Series Processors, ensuring exceptional performance for gaming, multitasking, and productivity.

    It features DDR5 memory support with speeds of up to 8200(O.C) MT/s, enabling faster data transfer and improved system responsiveness. The motherboard is equipped with a Realtek 2.5GbE LAN chip and Wi-Fi 6E (RTL8852CE) with Bluetooth 5.3, providing ultra-fast wired and wireless connectivity for seamless online gaming, streaming, and file transfers. For graphics, it supports AMD Radeon™ Graphics with HDMI 2.1 and DisplayPort 1.4 outputs, delivering stunning visuals with resolutions up to 4096x2160@60Hz and 3840x2160@144Hz, respectively.

    Storage options are abundant, with 2 x M.2 Socket 3 connectors and 4 x SATA 6Gb/s connectors, ensuring ample space for high-speed NVMe SSDs and traditional hard drives. The Realtek Audio CODEC delivers high-definition audio, supporting 2/4/5.1/7.1-channel configurations for an immersive sound experience. The motherboard also features RGB Fusion 2.0 with 3 x addressable RGB Gen2 LED strip headers and 1 x RGB LED strip header, allowing you to customise your system's lighting to match your style.

    With USB 3.2 Gen 2 Type-C ports, a PCIe 5.0 x16 slot, and multiple fan headers, the Gigabyte B850M Gaming X WF6E offers exceptional expandability and cooling options. Whether you're building a gaming rig, a workstation, or a high-performance PC, this motherboard provides the perfect balance of power, connectivity, and aesthetics. Visit Tech Land BD to purchase this cutting-edge motherboard and take your PC build to the next level.

    What processors are compatible with the Gigabyte B850M Gaming X WF6E AM5 Motherboard?

    The motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors with Socket AM5, ensuring compatibility with the latest AMD CPUs.

    Does this motherboard support Wi-Fi and Bluetooth connectivity?

    Yes, it features Wi-Fi 6E (RTL8852CE) and Bluetooth 5.3, providing high-speed wireless connectivity and low-latency Bluetooth support.

    What type of memory does the Gigabyte B850M Gaming X WF6E support?

    The motherboard supports DDR5 memory with speeds of up to 8200(O.C) MT/s, ensuring faster performance and improved efficiency.
