GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard

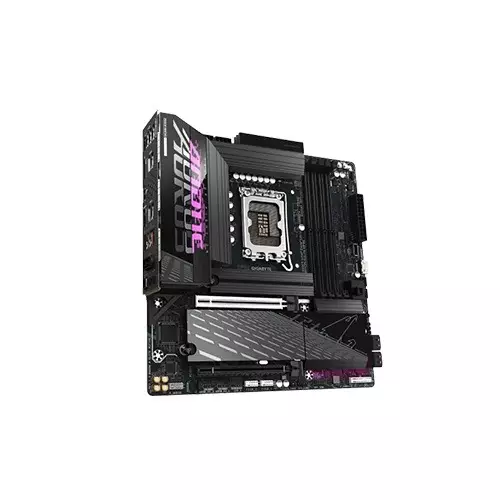

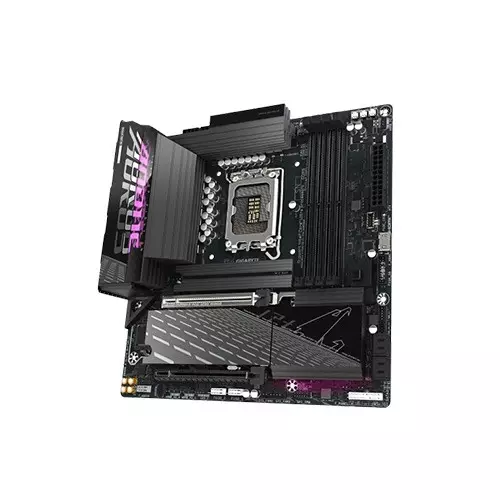

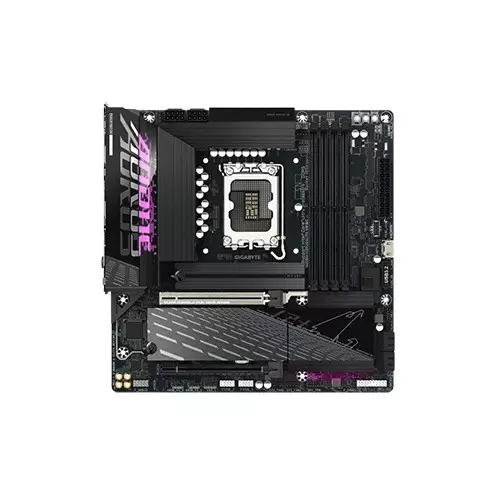

GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard - 1 GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard - 2 GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard - 3 GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard - 4 GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard - 5

GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard

3 Reviews
Stock : In Stock
PID : P0392506491
Brand : Gigabyte
Model : B860M AORUS ELITE WIFI6E
Warranty : 3-Years
  • Chipset - Intel  B860 Express Chipset
  • CPU - LGA1851 socket
  • Operating System - Support for Windows 11 64-bit
  • Form Factor - Micro ATX Form Factor; 24.4cm x 24.4cm

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Discount Price

    ৳33,400 ৳34,000
    + Available Payment Method

    EMI Start From*

    ৳1,176

    PRODUCT SPECIFICATIONS

    Processor

    CPU Socket LGA1851 socket: Support for Intel Core Ultra Processors

    (Go to GIGABYTE's website for the latest CPU support list.)

    L3 cache varies with CPU

    Mainboard

    Chipset Intel B860 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) /
    7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s
    memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the
    supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List"
    on GIGABYTE's website for more information.)

    Graphics

    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    - 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs

    and a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 2.1 version.





    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 2.1 version.





    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.





    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)





    Support for up to quad-display at the same time

    Networking & Connectivity

    Wireless Connectivity Intel Wi-Fi 6E AX211 (PCB rev. 1.0)

    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.3

    - Support for 11ax 160MHz wireless standard



    Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.3

    - Support for 11ax 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)
    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software.

    To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

    Ports

    Internal I/O Ports 1 x 24-pin ATX main power connector

    2 x 8-pin ATX 12V power connectors

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    3 x system fan headers

    1 x system fan/water cooling pump header

    3 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    3 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    2 x Thunderbolt add-in card connectors

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x HDMI port*

    1 x power button

    1 x reset button

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper



    * Actual support may vary by CPU.

    Back Panel Connectors

    4 x USB 2.0/1.1 ports

    4 x USB 3.2 Gen 1 ports

    1 x DisplayPort*

    1 x USB4 USB Type-C port (DisplayPort*)

    1 x HDMI port*

    1 x RJ-45 port

    2 x USB 3.2 Gen 2 Type-A ports (red)

    2 x antenna connectors (2T2R)

    2 x audio jacks

    1 x optical S/PDIF Out connector



    * Actual support may vary by CPU.
    USB CPU:

    - 1 x USB4 USB Type-C port on the back panel

    Chipset:

    - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    - 2 x USB 3.2 Gen 1 ports available through the internal USB header

    Chipset+USB 3.2 Gen 1 Hub:

    - 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    - 8 x USB 2.0/1.1 ports (4 ports on the back panel,

    4 ports available through the internal USB headers)

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit

    Special Features

    Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model.

    Supported functions of each application may also vary depending on motherboard specifications.




    Support for Q-Flash

    Support for Q-Flash Plus

    Support for Smart Backup

    Others

    Controller iTE I/O Controller Chip
    Other Features H/W Monitoring

    Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    * Whether the fan (pump) speed control function

    is supported will depend on the fan (pump) you install.

    Physical Specification

    Color Black
    Expansion Slots CPU:

    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.





    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Technical Info

    Brand GIGABYTE
    Model B860M AORUS ELITE WIFI6E

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard in Bangladesh

    GIGABYTE B860M AORUS ELITE WIFI6E is a high-performance Micro ATX motherboard designed for Intel Core Ultra Processors with LGA1851 socket, delivering exceptional performance for gaming, content creation, and professional applications. Featuring support for DDR5 memory up to 9200MT/s (O.C.), it provides ultra-fast speeds and stable performance. With PCIe 5.0 x16 slot, three M.2 slots (1x PCIe 5.0, 2x PCIe 4.0), and four SATA 6Gb/s connectors, this motherboard ensures excellent expandability for GPUs and NVMe SSDs. The Intel B860 Express Chipset enhances system efficiency, while Wi-Fi 6E and 2.5GbE LAN offer high-speed networking. Its USB4 Type-C port, along with USB 3.2 and Thunderbolt support, allows seamless connectivity for modern devices.

    The integrated graphics support via HDMI 2.1 and DisplayPort 2.1 ensures stunning 4K resolution at 144Hz, making it perfect for high-definition gaming and professional workflows. Additional features include RGB lighting support, multiple fan headers, Q-Flash Plus for easy BIOS updates, and Smart Backup for data protection. Whether you're a gamer, creator, or enthusiast, the GIGABYTE B860M AORUS ELITE WIFI6E delivers outstanding performance and future-ready features. Get the best price in Bangladesh exclusively at Tech Land BD – order now!


    Does this motherboard support Intel 14th Gen processors?

    No, it is compatible with Intel Core Ultra Processors (LGA1851 socket).

    How many M.2 slots are available?

    It has three M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) for high-speed NVMe SSDs.

    Does this motherboard have built-in Wi-Fi and Bluetooth?

    Yes, it features Intel Wi-Fi 6E and Bluetooth 5.3 for seamless connectivity.

    CUSTOMER REVIEWS

    Overall Rating

    4 out of 5 stars
    3
    Total Reviews

    Login to write a review.

    5 star
    1
    4 star
    2
    3 star
    0
    2 star
    0
    1 star
    0
    Bappi Hasan

    Compact and perfect for small builds. Fits nicely in a mini case, and the layout is smart. Only has two RAM slots, but that’s expected. Ran stable with no hiccups. Good option if space is tight.

    24 June, 2026

    Humaun Kabir

    Love the I/O on this thing—tons of USB ports and even a fast Ethernet jack. Setup was painless, and the onboard audio sounds crisp. The aesthetic is understated, which I appreciate. No regrets.

    18 June, 2026

    Bappi Hasan

    Decent board, but the fan headers are placed awkwardly. Made cable management a bit of a puzzle. Performance is average, nothing special. It works, but I’d only get it if it’s on sale.

    09 June, 2026

    What is the GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard Price in Bangladesh 2026 ?

    The Gigabyte B860M AORUS ELITE WIFI6E Price in BD is 33,400৳ . This GIGABYTE B860M AORUS ELITE WIFI6E Intel B860 Chip DDR5 Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B860M AORUS ELITE WIFI6E by 33,400৳ and its regular price is 34,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
