Product Information

Save: ৳800

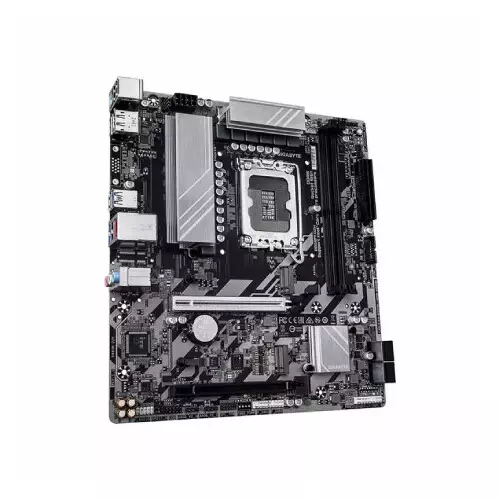

Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard
Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard - 0 Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard - 0
Discount Tag

Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard

3 Reviews
Stock : In Stock
PID : P0322510008
Brand : Gigabyte
Model : B860M D2H
Warranty : 3 Years
CPU: LGA1851 socket
Chipset: Intel B860 Express Chipset
Memory:  2x DDR5 DIMM sockets supporting up to 128 GB
Realtek 2.5GbE LAN chip

Product Pricing

Discount Price

৳17,200 ৳18,000
+ Available Payment Method

EMI Start From*

৳606

PRODUCT SPECIFICATIONS

Processor

Supported CPU

LGA1851 socket: Support for Intel Core Ultra Processors
Chipset

Intel B860 Express Chipset

Mainboard

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
External I/O Ports

3 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x DisplayPort*

1 x HDMI port*

3 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
USB
Chipset:
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Software Features
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

Special Features

Special Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Physical Specification

Form Factor

Micro ATX Form Factor; 24.4cm x 22.5cm

Technical Info

OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty Information

Warranty 3 Years

PRODUCT DESCRIPTION

Gigabyte B860M D2H DDR5 Motherboard

The Gigabyte B860M D2H DDR5 LGA1851 Motherboard is a next-generation mainboard designed for Intel’s latest Core Ultra processors, ensuring unmatched stability, speed, and performance for modern computing. Powered by the Intel B860 Express chipset, this motherboard supports LGA1851 socket CPUs, making it ideal for both gamers and professionals seeking cutting-edge reliability. It features dual DDR5 DIMM slots supporting up to 128GB memory with speeds up to 9066 MT/s (O.C.), ensuring blazing-fast multitasking and data transfer. With PCIe 5.0 x16 and PCIe 4.0 x4 expansion slots, users can harness the full potential of high-end graphics cards or NVMe SSDs for extreme gaming or content creation performance. For storage flexibility, the B860M D2H includes dual M.2 PCIe 4.0 connectors and four SATA 6Gb/s ports, supporting RAID 0/1/5/10 configurations.
Visual output options include DisplayPort 2.1 and HDMI 2.1, supporting 4K resolution at up to 144Hz for immersive visuals. The integrated Realtek 2.5GbE LAN ensures ultra-fast and stable network connectivity for seamless online gaming, streaming, and data transfer. Enhanced audio is powered by a Realtek HD Audio Codec, supporting up to 7.1-channel surround sound, offering crystal-clear sound for entertainment or professional use. In terms of connectivity, the motherboard provides a wide range of USB ports, including USB 3.2 Gen 1 and USB 2.0, ensuring compatibility with a variety of devices and peripherals. It also includes RGB Gen2 LED strip headers, offering customizable lighting effects through GIGABYTE Control Center (GCC). With features like Q-Flash, Q-Flash Plus, and Smart Backup, BIOS updates and data protection are effortless and secure.
Built with durable components and a Micro ATX form factor (24.4 x 22.5 cm), this motherboard is perfect for compact yet powerful PC builds. It also supports both Windows 11 and Windows 10 (64-bit) operating systems and comes with a 3-year warranty, ensuring long-term dependability. The Gigabyte B860M D2H DDR5 motherboard delivers enhanced stability, faster DDR5 memory support, and reliable performance for Intel 12th–14th Gen processors. Ideal for budget to mid-range builds, it provides a great balance of features and value at an attractive motherboard price in BD.

Gigabyte B860M D2H DDR5 Motherboard Price in BD

Purchase the Gigabyte B860M D2H DDR5 Motherboard from Tech Land BD to enjoy authentic products backed by an official warranty and expert customer support. Tech Land BD guarantees competitive pricing, fast delivery across Bangladesh, and after-sales service you can trust. Whether you’re building a gaming PC or a workstation, Tech Land BD is your reliable destination for genuine Gigabyte components and the best buying experience in the country.

FAQ:

Does the Gigabyte B860M D2H support Intel Core Ultra processors?

Yes, it supports Intel Core Ultra processors with the LGA1851 socket.

How much memory does this motherboard support?

It supports up to 128GB DDR5 memory with speeds up to 9066MHz (O.C.).

Does it support PCIe 5.0 graphics cards?

Yes, the main PCIe x16 slot supports PCIe 5.0, ensuring compatibility with the latest GPUs.

CUSTOMER REVIEWS

Overall Rating

4 out of 5 stars
3
Total Reviews

Login to write a review.

5 star
1
4 star
2
3 star
0
2 star
0
1 star
0
Rob

thanks Techland for Motherboard best !!

06 July, 2026

Lupin

best price in Bangladesh

03 July, 2026

ASHIQ

This motherboard paired with an Intel Core Ultra 7 works well for everyday gaming and editing. DDR5 speeds are high, and the dual M.2 slots are handy

08 August, 2025

What is the Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard Price in Bangladesh 2026 ?

The Gigabyte B860M D2H Price in BD is 17,200৳ . This Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 1 reviews. Tech Land BD Offers you Gigabyte B860M D2H by 17,200৳ and its regular price is 18,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
