Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard

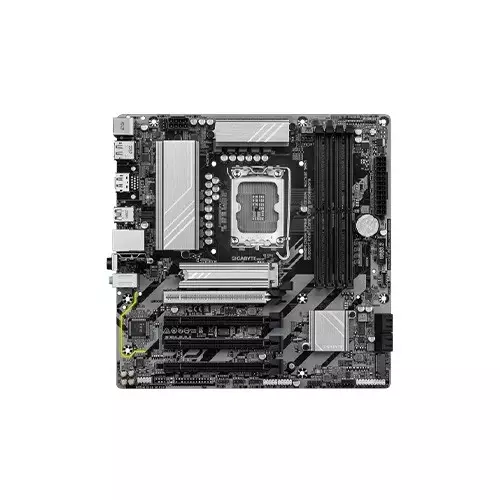

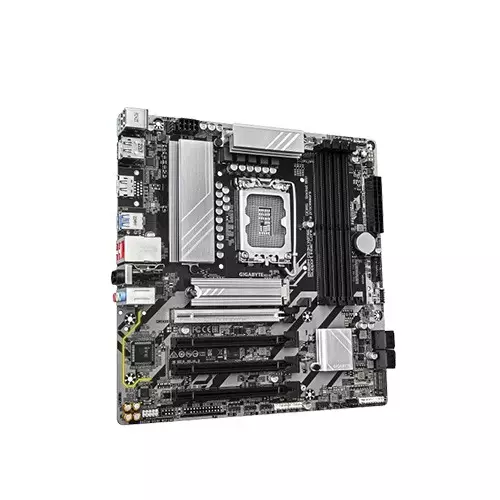

Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 1 Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 2 Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 3

Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard

1 Reviews
Stock : In Stock
PID : P0392506497
Brand : Gigabyte
Model : B860M D3HP
Warranty : 3-Years
  • CPU - LGA1851 socket
  • Chipset - Intel B860 Express Chipset
  • Form Factor - Micro ATX
  • Operating System - Support for Windows 11 64-bit /  10 64-bit

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳21,200 ৳22,000
    + Available Payment Method

    EMI Start From*

    ৳746

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors

    (Go to GIGABYTE's website for the latest CPU support list.)

    L3 cache varies with CPU

    Mainboard

    Chipset Intel B860 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) /
    7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s
    memory modules

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Graphics

    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.





    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 2.1 version.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    Interface CPU:

    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)

    Chipset:

    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)

    - 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    1 x system fan header

    1 x system fan/water cooling pump header

    2 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x serial port header

    1 x Clear CMOS jumper
    External I/O Ports 3 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x DisplayPort*

    1 x HDMI port*

    3 x USB 3.2 Gen 1 ports

    1 x RJ-45 port

    3 x audio jacks



    * Actual support may vary by CPU.
    USB Chipset:

    - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    - 3 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports available through the internal USB headers

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit

    Support for Windows 10 64-bit

    Special Features

    Features Support for GIGABYTE Control Center (GCC)

    Others

    Controller iTE I/O Controller Chip
    Other Features Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    Physical Specification

    Expansion Slots CPU:

    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.





    Chipset:

    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    GIGABYTE B860M D3HP – Ultra Durable Micro ATX Motherboard

    GIGABYTE B860M D3HP is a Micro ATX motherboard built with Intel B860 Express Chipset, supporting Intel Core Ultra Processors on the LGA1851 socket. Designed for performance and durability, it offers next-gen DDR5 memory support with speeds up to 9066 MT/s (O.C.), and a maximum capacity of 256GB across four DIMM slots. For visual output, the motherboard includes HDMI 2.1 and DisplayPort 2.1 for 4K resolution support, making it ideal for gaming, content creation, and office setups. Storage flexibility is enhanced with dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations.

    Expansion options include a PCIe 5.0 x16 slot for GPUs or NVMe SSDs and two PCIe 3.0 x1 slots for additional peripherals. For networking, it features Realtek Gigabit LAN, ensuring stable and high-speed wired connections. With USB 3.2 Gen 1, USB Type-C, and customizable RGB headers, this motherboard is well-equipped for modern PC builds. GIGABYTE Control Centre (GCC), Q-Flash, and Smart Backup ensure easy system management. Compatible with Windows 11 and Windows 10, the B860M D3HP is an excellent choice for gamers, professionals, and system builders.



    Gigabyte B860M D3HP DDR5 Motherboard Price in BD

    Buy the Gigabyte B860M D3HP DDR5 Motherboard from Tech Land BD for an official warranty, a genuine product, a competitive price, and fast delivery across Bangladesh. Enjoy trusted after-sales support and build your Intel Core Ultra PC with confidence.

    What processors are compatible with the GIGABYTE B860M D3HP?

    This motherboard supports Intel Core Ultra Processors using the LGA1851 socket. Check GIGABYTE’s official website for the latest CPU support list.

    How much RAM does this motherboard support?

    It supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 9066 MT/s (overclocked).

    Does this motherboard have built-in Wi-Fi and Bluetooth?

    No, this model does not include built-in Wi-Fi or Bluetooth. It uses Realtek Gigabit LAN for wired network connections.

    CUSTOMER REVIEWS

    Overall Rating

    3 out of 5 stars
    1
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    0
    3 star
    1
    2 star
    0
    1 star
    0
    Imran

    Budget-friendly and surprisingly capable. It has all the essential ports, and the M.2 slot is a nice bonus at this price. The board feels a bit light, but it’s held up fine for daily gaming. Recommended for tight budgets.

    18 June, 2026

    What is the Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard Price in Bangladesh 2026 ?

    The Gigabyte B860M D3HP Price in BD is 21,200৳ . This Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B860M D3HP by 21,200৳ and its regular price is 22,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
