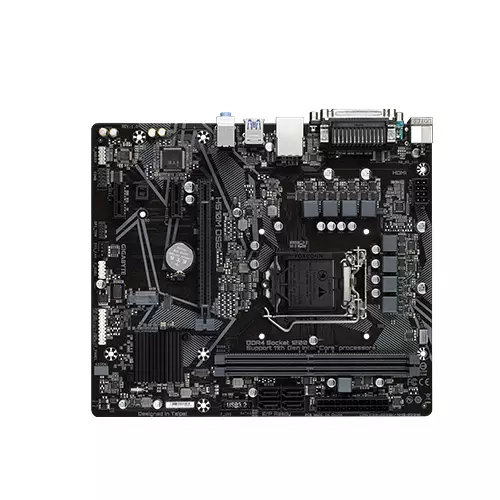

Gigabyte H510M DS2 11th Gen Micro ATX Motherboard
Gigabyte H510M DS2 11th Gen Micro ATX Motherboard Gigabyte H510M DS2 11th Gen Micro ATX Motherboard - 1 Gigabyte H510M DS2 11th Gen Micro ATX Motherboard - 2
Discount Tag

Gigabyte H510M DS2 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506124
Brand : Gigabyte
Model : H510M DS2
Warranty : 3 years
  • Supported CPU: LGA1200 package 11th Generation Intel Core i9 processors / Intel Core i7 processors / Inte...
  • Chipset: Intel H510 Express Chipset
  • BIOS: 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI...
  • Memory: 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/240...

PRODUCT SPECIFICATIONS

Processor

Supported CPU LGA1200 package
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processor
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
L3 cache varies with CPU

Mainboard

Chipset Intel H510 Express Chipset
BIOS 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage Chipset
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
The PCIEX1_1 slot shares bandwidth with the M.2 slot. When the PCIEX1_1 slot is populated, the M.2 slot will operate at up to PCIe 3.0 x2 SSD.
4 x SATA 6Gb/s connectors
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics

Graphics Integrated Graphics Processor - Intel HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek audio codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
External I/O Ports 1 x PS/2 keyboard/mouse port
1 x serial port headers
1 x parallel port header
1 x D-Sub port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB Chipset
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 21.0cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

Gigabyte H510M DS2 Micro ATX Motherboard in Bangladesh

Get gaming-level performance and DisplayPort connectivity with the H510M DS2 Micro-ATX Motherboard from Gigabyte. Utilizing the Intel H510 Express Chipset chipset, this motherboard is meant to be used with CPUs that support the intel socket. Install up to 64GB of dual-channel DDR4 RAM across four slots. Storage drives are often installed using four SATA III connectors or an M.2 slot.

A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, also as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports also are present on the rear panel. The Gigabyte H510M DS2  Micro-ATX Motherboard utilizes the Realtek audio codec and supports Windows 10 64-bit operating systems.


BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. Gigabyte H510M DS2  With a new GUI and easier-to-use functionalities, Gigabyte H510M DS2 has been able to reinvent the BIOS to give users a better experience while setting up their new system.


CUSTOMER REVIEWS

Overall Rating

0 out of 5 stars
0
Total Reviews

Login to write a review.

5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte H510M DS2 11th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte H510M DS2 Price in BD is 10,300৳ . This Gigabyte H510M DS2 11th Gen Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte H510M DS2 by 10,300৳ and its regular price is 12,300৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
